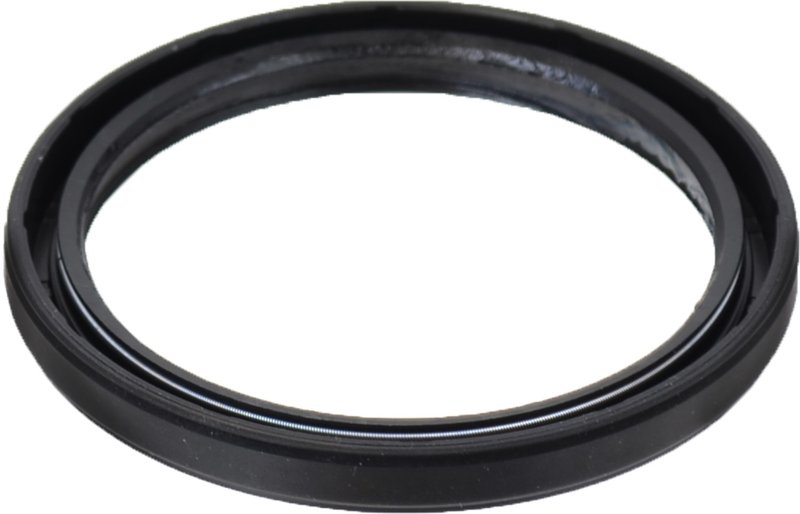

SKF 21564A Automatic Transmission Output Shaft Seal - Left, Right or Right Outer
| Brand | SKF 21564A |
|---|---|
| Position | Right |
| Fits | Mazda, Ford, Hyundai, Lincoln, and Mercury · 43 vehicles |
Precision seal design. Keeps lubricants in and contaminants out.
LongLife sealing surface. Built for durable, reliable sealing performance.
Premium materials. Made to match the demands of the application and environment.
Cross-references 7E5Z1177B, 4311924000 and AW1127398 for the same application. See all 3.
SKF Automatic Transmission Output Shaft Seal
SKF 21564A is an automatic transmission output shaft seal built for the transmission sealing system. It is designed with a LongLife sealing surface type and precise dimensions to help maintain a secure seal at the output shaft, where fluid retention and contamination control are critical.
Compatible With select Ford Fusion, Mazda CX-7, Mazda CX-9, Hyundai Veracruz, Lincoln MKZ, and Mercury Milan applications across 2007-2015 model years, this SKF seal is sized for the specified shaft and housing dimensions. Part number 21564A is a direct-fit style service part for vehicles that use the listed transmission configurations.
Key Features
- Automatic transmission output shaft seal for transmission sealing service
- LongLife sealing surface type for durable sealing performance
- Outside diameter: 3.118 in.
- Shaft diameter: 2.520 in.
- Width: 0.315 in.
- SKF engineering and manufacturing standards for transmission sealing components
- Part number 21564A for easy identification and ordering
Detailed Description
SKF 21564A is engineered as an automatic transmission output shaft seal for applications that require accurate sealing at the transmission output shaft. SKF has a long history in seal design and uses premium materials selected for the application and operating environment. The result is a seal intended to retain transmission lubricant while helping keep road contaminants out of the sealing area. This part number 21564A is listed for multiple front- and rear-position applications, including 2007-2012 Ford Fusion, 2007-2012 Mazda CX-7, and 2007-2015 Mazda CX-9.
This part cross-references Ford 7E5Z1177B and Hyundai 4311924000 for the same application.
What This Seal Helps Address
- Transmission fluid leakage at the output shaft seal area
- Contamination entering the transmission through a worn seal
- Fluid loss that can lead to shifting concerns
- Seal wear from age, heat, and normal drivetrain use
- Service replacement for vehicles with the listed transmission fitments
Installation Notes and Tips
- Verify shaft diameter, outside diameter, and width before installation.
- Inspect the output shaft and seal bore for wear, scoring, or debris.
- Clean the sealing surface and surrounding area before installing the new seal.
- Confirm the vehicle’s transmission configuration and position match the fitment listing.
- Use proper seal installation practices to avoid damaging the sealing lip.
Quality Assurance
SKF designs and manufactures sealing products to strict quality standards, using application-specific materials and construction methods. The brand’s seal development history and focus on long service life support dependable transmission sealing performance.
- Fits 2007-2015 Mazda CX-9, Right
- Fits 2007-2012 Ford Fusion, Right Outer, Aisin F21 Trans.
- Fits 2007-2012 Hyundai Veracruz, Left
- Fits 2007-2012 Mazda CX-7, Right
- Fits 2007-2010 Lincoln MKZ, Right
- Fits 2007-2009 Ford Fusion, N/A, Right
- Fits 2007-2009 Lincoln MKZ, N/A, Right
- Fits 2007-2009 Mercury Milan, N/A, Right
| Year | Make | Model | Drive Type | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 2015 | Mazda | CX-9 | AWD | — | — | — | Right | — |
| 2014 | Mazda | CX-9 | AWD | — | — | — | Right | — |
| 2013 | Mazda | CX-9 | AWD | — | — | — | Right | — |
| 2012 | Ford | Fusion | AWD | — | 3.5L | V6 | Right Outer | Aisin F21 Trans. |
| 2012 | Ford | Fusion | AWD | — | 2.5L | L4 | Right Outer | Aisin F21 Trans. |
| 2012 | Hyundai | Veracruz | AWD | — | — | — | Left | — |
| 2012 | Mazda | CX-7 | AWD | — | — | — | Right | — |
| 2012 | Mazda | CX-9 | AWD | — | — | — | Right | — |
| 2011 | Ford | Fusion | AWD | — | 3.5L | V6 | Right Outer | Aisin F21 Trans. |
| 2011 | Ford | Fusion | AWD | — | 2.5L | L4 | Right Outer | Aisin F21 Trans. |
| 2011 | Hyundai | Veracruz | AWD | — | — | — | Left | — |
| 2011 | Mazda | CX-7 | AWD | — | — | — | Right | — |
| 2011 | Mazda | CX-9 | AWD | — | — | — | Right | — |
| 2010 | Ford | Fusion | AWD | — | 3.5L | V6 | Right Outer | Aisin F21 Trans. |
| 2010 | Ford | Fusion | AWD | — | 2.5L | L4 | Right Outer | Aisin F21 Trans. |
| 2010 | Hyundai | Veracruz | AWD | — | — | — | Left | — |
| 2010 | Lincoln | MKZ | AWD | — | — | — | Right | — |
| 2010 | Mazda | CX-7 | AWD | — | — | — | Right | — |
| 2010 | Mazda | CX-9 | AWD | — | — | — | Right | — |
| 2009 | Ford | Fusion | AWD | Automatic | — | — | N/A | Right |
| 2009 | Ford | Fusion | AWD | — | 2.3L | L4 | Right Outer | Aisin F21 Trans. |
| 2009 | Hyundai | Veracruz | AWD | — | — | — | Left | — |
| 2009 | Lincoln | MKZ | AWD | Automatic | — | — | N/A | Right |
| 2009 | Lincoln | MKZ | AWD | — | — | — | Right | — |
| 2009 | Mazda | CX-7 | AWD | — | — | — | Right | — |
| 2009 | Mazda | CX-9 | AWD | — | — | — | Right | — |
| 2009 | Mercury | Milan | AWD | Automatic | — | — | N/A | Right |
| 2008 | Ford | Fusion | AWD | Automatic | — | — | N/A | Right |
| 2008 | Ford | Fusion | AWD | — | 2.3L | L4 | Right Outer | Aisin F21 Trans. |
| 2008 | Hyundai | Veracruz | AWD | — | — | — | Left | — |
| 2008 | Lincoln | MKZ | AWD | Automatic | — | — | N/A | Right |
| 2008 | Lincoln | MKZ | AWD | — | — | — | Right | — |
| 2008 | Mazda | CX-7 | AWD | — | — | — | Right | — |
| 2008 | Mazda | CX-9 | AWD | — | — | — | Right | — |
| 2008 | Mercury | Milan | AWD | Automatic | — | — | N/A | Right |
| 2007 | Ford | Fusion | AWD | Automatic | — | — | N/A | Right |
| 2007 | Ford | Fusion | AWD | — | 2.3L | L4 | Right Outer | Aisin F21 Trans. |
| 2007 | Hyundai | Veracruz | AWD | — | — | — | Left | — |
| 2007 | Lincoln | MKZ | AWD | Automatic | — | — | N/A | Right |
| 2007 | Lincoln | MKZ | AWD | — | — | — | Right | — |
| 2007 | Mazda | CX-7 | AWD | — | — | — | Right | — |
| 2007 | Mazda | CX-9 | AWD | — | — | — | Right | — |
| 2007 | Mercury | Milan | AWD | Automatic | — | — | N/A | Right |
