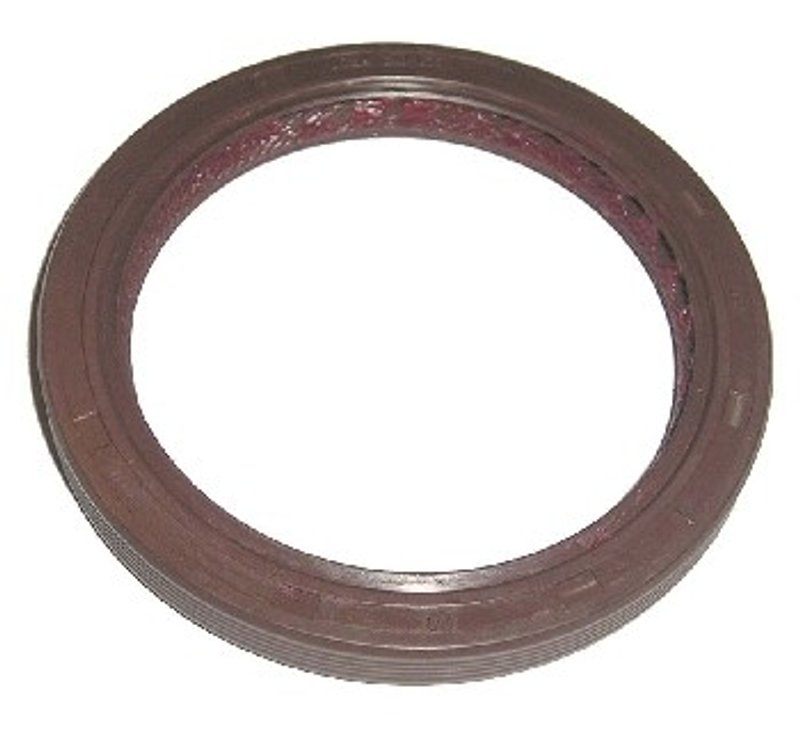

SKF 22416 Manual Transmission Seal - Rear or Rear Outer
| Brand | SKF 22416 |
|---|---|
| Position | Rear Outer and Rear |
| Width | 0.315 |
| Outside Diameter | 2.885 |
| Sealing Surface Type | Longlife |
| Shaft Diameter | 2.244 |
| Fits | BMW and Ford · 21 vehicles |
LongLife sealing surface. Built for durable sealing performance in transmission service.
Precision dimensions. Sized for the specified shaft, outside diameter, and width.
SKF engineering. Backed by more than a century of seal development.
Cross-references 24131422667 and F81Z7052EB for the same application. See all 2.
Manual Transmission Seal Overview
SKF manual transmission seal 22416 is built for applications that need reliable sealing at the transmission shaft. It uses a LongLife sealing surface and premium materials to help keep lubricant in and contaminants out.
Compatible with select Ford and BMW applications, this seal is a direct-fit service part for specific rear transmission positions. Part number 22416 is also referenced by 24131422667 and F81Z7052EB for the same application.
Key Features
- LongLife sealing surface for durable sealing performance.
- Premium material construction matched to the application environment.
- Designed to retain lubricant and block contamination.
- SKF engineering backed by more than a century of seal development.
Detailed Description
SKF 22416 is a manual transmission seal engineered for precise shaft sealing in select Ford F-250 Super Duty, Ford F-350 Super Duty, BMW X5, and BMW 540i applications. The seal dimensions include a 2.244 shaft diameter, 2.885 outside diameter, and 0.315 width, helping ensure the correct fit for the specified transmission service location. SKF has a long history in seal design, and this part reflects that focus on material selection, bonding methods, and long-term sealing performance.
What It Is Used For
- Stopping transmission fluid leaks at the shaft seal area.
- Reducing contamination from dirt and road debris.
- Replacing a worn or hardened manual transmission seal.
- Restoring sealing performance after service work.
Installation Notes and Tips
Verify the shaft diameter, outside diameter, and width before installation to confirm the correct manual transmission seal for the application. Match the vehicle position exactly, since fitment includes rear and rear outer locations. Clean the sealing surface thoroughly and inspect the shaft for wear or scoring before installing SKF 22416.
Quality Assurance
SKF designs and manufactures seals to high quality standards and has been producing sealing solutions for more than 100 years. Part number 22416 is built to the specified dimensions and sealing surface type for the listed applications.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2010 | Ford | F-250 Super Duty | RWD | Rear Outer | — |
| 2010 | Ford | F-350 Super Duty | RWD | Rear | — |
| 2009 | Ford | F-250 Super Duty | RWD | Rear Outer | — |
| 2009 | Ford | F-350 Super Duty | RWD | Rear | — |
| 2008 | Ford | F-250 Super Duty | RWD | Rear Outer | — |
| 2008 | Ford | F-350 Super Duty | RWD | Rear | — |
| 2007 | Ford | F-250 Super Duty | RWD | Rear Outer | — |
| 2007 | Ford | F-350 Super Duty | RWD | Rear | — |
| 2006 | Ford | F-250 Super Duty | RWD | Rear Outer | — |
| 2006 | Ford | F-350 Super Duty | RWD | Rear | — |
| 2005 | Ford | F-250 Super Duty | RWD | Rear Outer | — |
| 2005 | Ford | F-350 Super Duty | RWD | Rear | — |
| 2004 | Ford | F-350 Super Duty | RWD | Rear | — |
| 2003 | Ford | F-350 Super Duty | RWD | Rear | — |
| 2002 | Ford | F-350 Super Duty | RWD | Rear | — |
| 2001 | BMW | X5 | — | Rear | — |
| 2001 | Ford | F-350 Super Duty | RWD | Rear | — |
| 2000 | BMW | X5 | — | Rear | — |
| 2000 | Ford | F-350 Super Duty | RWD | Rear | — |
| 1999 | Ford | F-350 Super Duty | RWD | Rear | — |
| 1994 | BMW | 540i | — | Rear | — |
