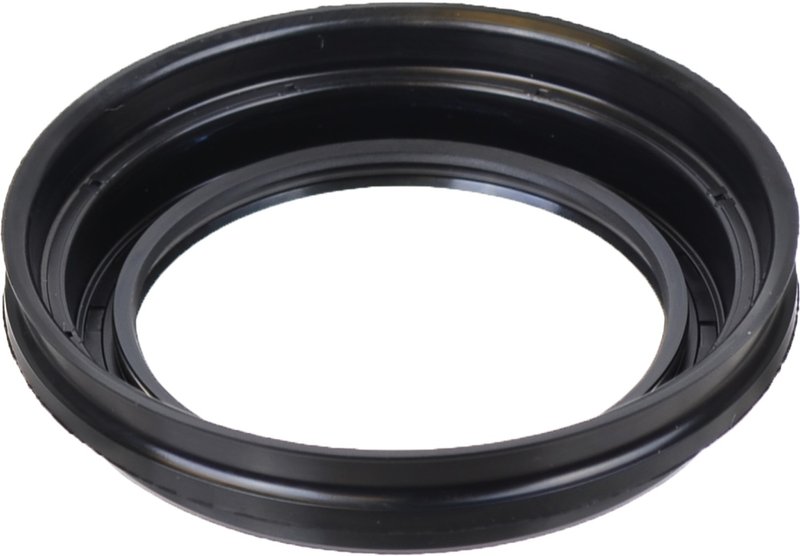

SKF 24482A Wheel Seal - Rear Outer

SKF 24482A Wheel Seal for Rear Outer Applications

SKF 24482A is a wheel seal built for rear outer service on select Toyota Land Cruiser and Lexus LX470 models. It uses a nitrile sealing surface and precise dimensions to help maintain proper sealing at the wheel end where lubricant retention and contamination control matter most.

With SKF 24482A, the focus is on correct fit, measured sealing geometry, and materials selected for the operating environment. This wheel seal is a direct-fit option for 1998-2007 Toyota Land Cruiser rear outer and 1998-2007 Lexus LX470 rear outer applications.

Key Features

• Wheel seal for driveline and axle sealing service
• Nitrile sealing surface type for dependable sealing performance
• Outside diameter: 3.197 in.
• Shaft diameter: 2.441 in.
• Width: 0.315 in.
• Fits 1998-2007 Toyota Land Cruiser, rear outer
• Fits 1998-2007 Lexus LX470, rear outer
• SKF part number 24482A for catalog and service matching

Detailed Description

SKF 24482A is engineered as a rear outer wheel seal for the Toyota Land Cruiser and Lexus LX470. The seal dimensions are specified to support proper contact at the shaft and housing interface, while the nitrile sealing surface is selected for sealing performance in wheel-end service. SKF has a long history in seal design and manufacturing, and this part reflects that focus on controlled materials and application-specific construction. If you are searching for a rear outer wheel seal for 1998-2007 Toyota Land Cruiser or 1998-2007 Lexus LX470 service, SKF 24482A is the matching part number to reference.

This part cross-references 9031362001 for the same application.

Common Problems This Seal Helps Address

• Gear oil or lubricant leakage at the rear wheel end
• Contamination entering the sealed area
• Wear-related sealing loss at the axle shaft interface
• Noise or service issues caused by compromised wheel-end sealing
• Repeat repairs when the correct rear outer seal is not used

Installation Notes and Tips

Confirm the vehicle application before installation and match the rear outer position exactly. Inspect the shaft and sealing surface for scoring, corrosion, or debris before fitting SKF 24482A, since surface condition affects seal performance. Clean the housing thoroughly and install the seal squarely to avoid distortion. For 1998-2007 Toyota Land Cruiser and Lexus LX470 rear outer service, verify dimensions and orientation against the removed part before final assembly.

Quality Assurance

SKF manufactures seals to defined specifications using premium materials and controlled production standards. The brand’s seal development history and application-focused design support consistent fit and long service life in wheel-end sealing applications.
