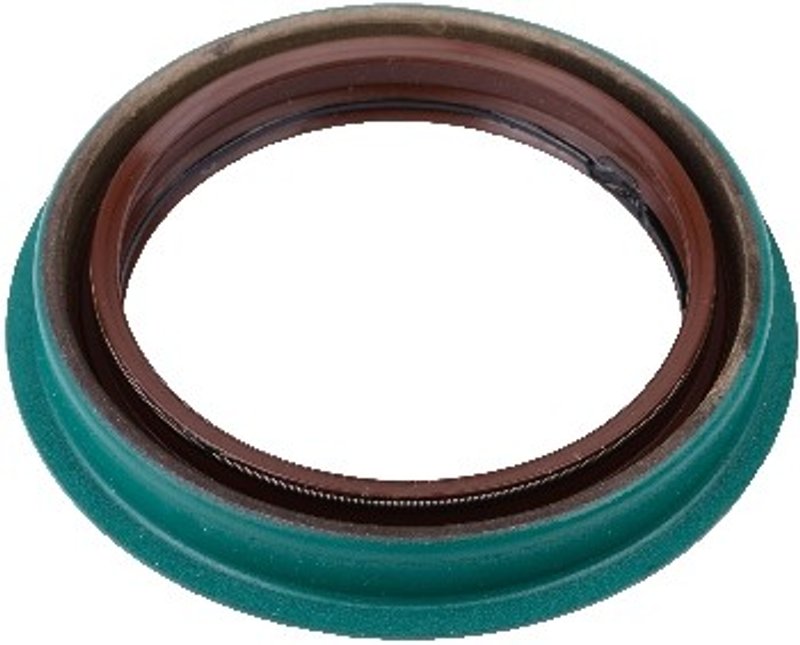

SKF 30007 Differential Pinion Seal - Rear

SKF 30007 Differential Pinion Seal Overview

SKF 30007 is a differential pinion seal built for driveline sealing performance where the pinion shaft enters the axle housing. Its dual-lip construction adds a primary sealing lip and a secondary radial lip to help block dirt and water intrusion, while the Bore-Tite outer coating helps seal minor housing bore imperfections and reduce oil seepage.

Fits 2009-2012 Suzuki Equator, rear. This SKF differential pinion seal is a direct-fit sealing component for rear axle service on the Suzuki Equator and is identified by part number 30007.

Key Features

• Dual-lip seal design for added protection at the pinion shaft
• Bore-Tite coated outer diameter helps seal scratches and minor bore imperfections
• LongLife sealing surface type
• 3.000 in. shaft diameter
• 3.756 in. outside diameter
• 0.628 in. width
• Fits 2009-2012 Suzuki Equator, rear

Detailed Description

SKF 30007 is a differential pinion seal engineered for rear axle applications where maintaining gear oil containment is critical. The dual-lip design creates two sealing barriers at the shaft interface, helping resist contamination from road debris, moisture, and grime. The outer Bore-Tite coating is applied to improve the seal-to-housing interface and support leak resistance when the bore has light wear or minor surface imperfections. With a 3.000-inch shaft diameter, 3.756-inch outside diameter, and 0.628-inch width, this seal is specified for the rear position on 2009-2012 Suzuki Equator models. Part number 30007 is also referenced in cross applications such as 472HH100 and 1651279C91 for the same general use case.

What This Seal Helps Address

• Gear oil leakage at the differential pinion area
• Contamination from dirt and water entering the axle housing
• Seepage caused by minor housing bore scratches or imperfections
• Wear-related sealing loss at the pinion shaft interface
• Rear differential service needs on 2009-2012 Suzuki Equator models

Installation Notes and Tips

Inspect the pinion yoke, shaft surface, and housing bore before installation. Clean the sealing bore thoroughly and verify the bore is free of heavy scoring or damage. Lubricate the sealing lip with clean gear oil during assembly and install the seal squarely to avoid distortion. Confirm the seal dimensions match the application before reassembly, and check pinion preload and axle fluid level after service.

Quality Assurance

SKF has more than 100 years of experience in bearings and sealing technology, and this seal is manufactured to SKF quality standards for durability and safety. The 30007 pinion seal reflects SKF’s focus on controlled sealing performance and consistent fit for driveline service.
