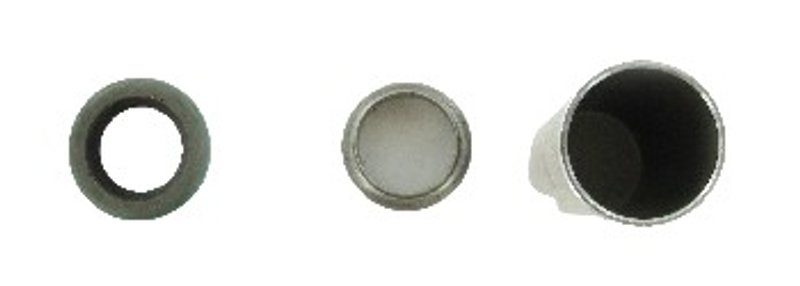

SKF 480050 Automatic Transmission Shift Shaft Repair Sleeve Kit

Automatic Transaxle Shift Shaft Repair

SKF 480050 is an automatic transmission shift shaft repair sleeve kit built to restore a worn sealing surface without removing the shaft. It uses a 0.500-inch shaft diameter sleeve with a nitrile sealing surface to help return the shaft to a clean, usable condition for transmission service.

Compatible With Chevrolet Silverado, GMC Sierra, Chevrolet Express, and other GM applications listed below, this SKF Speedi-Sleeve and seal kit is a direct repair solution for worn shift shaft surfaces. The SKF 480050 is designed for fast installation and a precise sealing finish.

Key Features

• Automatic transmission shift shaft repair sleeve kit for service work
• 0.500-inch shaft diameter
• Nitrile sealing surface type
• Installs without removing the shaft
• Restores a scored or worn sealing area without changing seal size
• Engineered from AISI 304 stainless steel
• Includes an installation tool for proper sleeve placement

Product Details

SKF Speedi-Sleeves are made to refinish worn shafts quickly and accurately, replacing the need for regrinding or refinishing methods that can leave an uneven sealing surface. This repair approach helps create a consistent outer surface for the seal to ride on, which is important in automatic transaxle shift shaft service. Part number 480050 is part of SKF’s Speedi-Sleeve line, a product line focused on restoring shaft sealing areas with minimal downtime.

This part cross-references CHR 480050 for the same application.

Common Problems This Part Addresses

• Worn or grooved shift shaft sealing surfaces
• Transmission fluid leakage at the shift shaft area
• Seal wear caused by shaft scoring
• Repair needs where shaft removal is not practical
• Service situations requiring a restored sealing surface without changing seal size

Installation Notes and Tips

Clean the shaft thoroughly before installation and inspect the sealing area for scoring or wear. The sleeve is designed to install over the existing shaft surface, and the included tool helps seat it correctly. Verify shaft diameter and application details before installation, especially on vehicles with notes such as without parking brake.

Fits 2007-2013 Chevrolet Avalanche, N/A; 1997-2013 Chevrolet Express 1500, N/A; 1997-2013 Chevrolet Express 2500, N/A; 1997-2013 Chevrolet Express 3500, N/A; 1999-2013 Chevrolet Silverado 1500, N/A; 1997-2013 Chevrolet Suburban 1500, N/A; 1997-2013 Chevrolet Tahoe, N/A; 1997-2013 GMC Savana 1500, N/A; 1997-2013 GMC Savana 2500, N/A; 1997-2013 GMC Savana 3500, N/A; 1999-2013 GMC Sierra 1500, N/A; 1997-2013 GMC Yukon, N/A; 2000-2013 GMC Yukon XL 1500, N/A; 2004-2012 Chevrolet Colorado, N/A; 2001-2012 Chevrolet Silverado 2500 HD, N/A; 2007-2012 Chevrolet Silverado 3500 HD, N/A, Without Parking Brake; 2000-2012 Chevrolet Suburban 2500, N/A; 2004-2012 GMC Canyon, N/A; 2001-2012 GMC Sierra 2500 HD, N/A; 2007-2012 GMC Sierra 3500 HD, N/A, Without Parking Brake; 2000-2012 GMC Yukon XL 2500, N/A; 2006-2011 Cadillac DTS, N/A; 2006-2011 Chevrolet HHR, N/A; 2005-2010 Chevrolet Cobalt, N/A; 1997-2010 Chevrolet Malibu, N/A; 2007-2010 Pontiac G5, N/A; 2005-2009 Buick Allure, N/A; 2002-2009 Chevrolet Trailblazer, N/A; 2005-2009 Chevrolet Uplander, N/A; 2002-2009 GMC Envoy, N/A; 2005-2008 Buick LaCrosse, N/A; 2000-2008 Chevrolet Impala, N/A; 2005-2008 Pontiac G6, N/A; 1997-2008 Pontiac Grand Prix, N/A; 2006-2007 Buick Lucerne, N/A; 2004-2007 Buick Rainier, N/A; 2002-2007 Buick Rendezvous, N/A; 2003-2007 Cadillac CTS, N/A; 2005-2007 Cadillac STS, N/A; 1997-2007 Chevrolet Monte Carlo, N/A; 2007 Chevrolet Silverado 1500 Classic, N/A; 2007 Chevrolet Silverado 1500 HD Classic, N/A; 1999-2007 Chevrolet Silverado 2500, N/A; 2007 Chevrolet Silverado 2500 HD Classic, N/A; 2007 Chevrolet Silverado 3500 Classic, N/A, Without Parking Brake; 2007 GMC Sierra 1500 Classic, N/A; 2007 GMC Sierra 1500 HD Classic, N/A; 2007 GMC Sierra 2500 HD Classic, N/A; 2007 GMC Sierra 3500 Classic, N/A, Without Parking Brake; 2004-2007 Saturn Ion, N/A; 2005-2007 Saturn Relay, N/A; 2002-2006 Cadillac Escalade, N/A; 1999-2000 Cadillac Escalade, N/A; 2003-2006 Cadillac Escalade ESV, N/A; 2002-2006 Cadillac Escalade EXT, N/A; 2002-2006 Chevrolet Avalanche 1500, N/A; 2002-2006 Chevrolet Avalanche 2500, N/A; 2005-2006 Chevrolet Silverado 1500 HD, N/A; 2001-2003 Chevrolet Silverado 1500 HD, N/A; 2001-2006 Chevrolet Silverado 3500, N/A, Without Parking Brake; 2003-2006 Chevrolet Silverado 3500, N/A; 2003-2006 Chevrolet SSR, N/A; 2002-2006 Chevrolet Trailblazer EXT, N/A; 2002-2006 GMC Envoy XL, N/A; 2005-2006 GMC Sierra 1500 HD, N/A; 2001-2003 GMC Sierra 1500 HD, N/A; 2001-2006 GMC Sierra 3500, N/A, Without Parking Brake; 2005-2006 Pontiac G4, N/A; 1999-2006 Pontiac Montana, N/A; 1997-2005 Buick Century, N/A; 1997-2005 Buick LeSabre, N/A; 1997-2005 Buick Park Avenue, N/A; 1997-2005 Cadillac DeVille, N/A; 1997-2005 Chevrolet Astro, N/A; 1997-2005 Chevrolet Blazer, N/A; 1997-2005 Chevrolet Cavalier, N/A; 2004-2005 Chevrolet Classic, N/A; 2004-2005 GMC Envoy XUV, N/A; 1997-2005 GMC Jimmy, N/A; 1997-2005 GMC Safari, N/A; 2001-2005 Pontiac Aztek, N/A; 1997-2005 Pontiac Bonneville, N/A; 1997-2005 Pontiac Grand Am, N/A; 1997-2005 Pontiac Sunfire, N/A; 2005 Saturn L300, N/A; 2001-2003 Saturn L300, N/A; 1997-2004 Buick Regal, N/A; 1997-2004 Cadillac Seville, N/A; 1997-2004 Chevrolet Corvette, N/A; 1997-2004 Chevrolet S10, N/A; 1999-2004 GMC Sierra 2500, N/A; 1997-2004 GMC Sonoma, N/A; 1999-2004 Oldsmobile Alero, N/A; 1997-2004 Oldsmobile Bravada, N/A; 1997-2004 Oldsmobile Silhouette, N/A; 2001-2003 Oldsmobile Aurora, N/A; 1997-1999 Oldsmobile Aurora, N/A; 2001-2003 Saturn L200, N/A; 2001-2003 Saturn LW200, N/A; 2001-2003 Saturn LW300, N/A; 1997-2002 Cadillac Eldorado, N/A; 1997-2002 Chevrolet Camaro, N/A; 2002 Chevrolet P30, N/A; 1997-1999 Chevrolet P30, N/A; 1998-2002 Oldsmobile Intrigue, N/A; 1997-2002 Pontiac Firebird, N/A; 1997-2002 Pontiac Firebird, N/A, w/o THM400 Trans.; 2001-2002 Saturn L100, N/A; 1997-2001 Cadillac Catera, N/A; 1997-2001 Chevrolet Lumina, N/A; 1997-2000 Chevrolet C2500, N/A; 1997-2000 Chevrolet C3500, N/A, Without Parking Brake; 1997-2000 Chevrolet K2500, N/A; 1997-2000 Chevrolet K3500, N/A, Without Parking Brake; 1997-2000 GMC C2500, N/A; 1997-2000 GMC C3500, N/A, Without Parking Brake; 1997-2000 GMC K2500, N/A; 1997-2000 GMC K3500, N/A, Without Parking Brake; 2000 Saturn LS, N/A; 2000 Saturn LS1, N/A; 2000 Saturn LS2, N/A; 2000 Saturn LW1, N/A; 2000 Saturn LW2, N/A; 1997-1999 Buick Riviera, N/A; 1997-1999 Chevrolet C1500, N/A; 1997-1999 Chevrolet C1500 Suburban, N/A; 1997-1999 Chevrolet C2500 Suburban, N/A; 1997-1999 Chevrolet K1500, N/A; 1997-1999 Chevrolet K1500 Suburban, N/A; 1997-1999 Chevrolet K2500 Suburban, N/A; 1997-1999 GMC C1500, N/A; 1997-1999 GMC C1500 Suburban, N/A; 1997-1999 GMC C2500 Suburban, N/A; 1997-1999 GMC K1500, N/A; 1997-1999 GMC K1500 Suburban, N/A; 1997-1999 GMC K2500 Suburban, N/A; 1997-1999 GMC P3500, N/A, Without Parking Brake; 1997-1999 Oldsmobile 88, N/A; 1997-1999 Oldsmobile Cutlass, N/A; 1997-1999 Oldsmobile LSS, N/A; 1998-1999 Pontiac Trans Sport, N/A; 1997-1998 Buick Skylark, N/A; 1998 Chevrolet Tracker, N/A; 1997-1998 Oldsmobile Achieva, N/A; 1997-1998 Oldsmobile Regency, N/A; 1997 Geo Tracker, N/A; 1997 Oldsmobile Cutlass Supreme, N/A.

Quality Assurance

SKF manufactures this Speedi-Sleeve kit to high quality standards using stainless steel construction for durable shaft repair and consistent sealing performance. The product line is engineered for long service life and safe operation in transmission repair applications.
