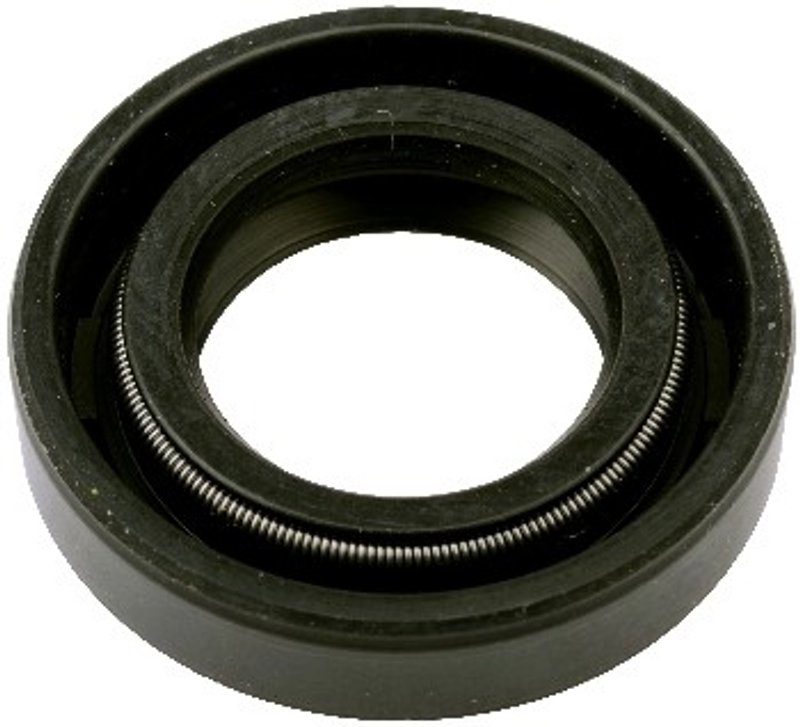

SKF 6622 Steering Gear Worm Shaft Seal
| Brand | SKF 6622 |
|---|---|
| Width | 0.276 |
| Outside Diameter | 1.187 |
| Sealing Surface Type | Nitrile |
| Shaft Diameter | 0.669 |
| Fits | Chevrolet, Geo, Honda, Isuzu, Mazda, Mitsubishi, Plymouth, and Suzuki · 55 vehicles |
Nitrile sealing surface. Helps keep lubricants in and contaminants out.
Precision-made seal. Built to specific designs with premium materials.
Seal specialist heritage. SKF has pioneered seal design and bonding techniques for decades.
Cross-references 5-09625-034-0, 1432164R1 and 4911460E00 for the same application. See all 10.
Steering Gear Worm Shaft Seal for OE-Style Repair
SKF 6622 is a steering gear worm shaft seal built for sealing performance in the steering gear assembly. With a nitrile sealing surface, it is designed to help retain lubricant at the shaft interface while keeping dirt and moisture out of the steering gear.
This SKF 6622 seal is a direct-fit service part for select Honda Passport, Mitsubishi Eclipse, Mitsubishi Galant, Mitsubishi Mirage, and other listed applications. It is sized with a 0.669 shaft diameter, 1.187 outside diameter, and 0.276 width for steering gear sealing service.
Key Features
- Steering gear worm shaft seal for sealing service in the steering system
- Nitrile sealing surface type for fluid resistance in steering applications
- 0.669 shaft diameter for the specified shaft interface
- 1.187 outside diameter for the housing bore fit
- 0.276 width for compact steering gear packaging
- SKF part number 6622 for catalog and service identification
Detailed Description
SKF 6622 is engineered as a steering gear worm shaft seal for vehicles that require a precise sealing interface at the steering gear. SKF has a long history in seal design and uses premium materials selected for the application and operating environment. That focus on material selection and dimensional accuracy helps support reliable sealing in steering gear service.
Fitment includes 1994-1996 Honda Passport, 1991-1994 Mitsubishi Eclipse, 1991-1994 Mitsubishi Galant, 1991-1994 Mitsubishi Mirage, 1990-1994 Plymouth Laser, 1992-1994 Suzuki Swift, 1990-1993 Geo Storm, 1992-1993 Mitsubishi Montero, 1990-1992 Isuzu Impulse, 1991-1992 Isuzu Stylus, 1981-1987 Isuzu Pickup, 1984-1987 Isuzu Trooper, 1984 Mazda RX-7, and 1977-1982 Chevrolet LUV. This part cross-references CHR 6622 and 14586622 for the same application.
Common Problems This Seal Can Address
- Steering gear fluid seepage at the worm shaft
- Contamination entering the steering gear housing
- Loss of lubricant around the shaft seal area
- Wear-related sealing failure during steering gear service
- Leak diagnosis on older steering gear assemblies
Installation Notes and Tips
Confirm shaft diameter, outside diameter, and width before installation. Inspect the steering gear bore and shaft surface for scoring, corrosion, or wear that could affect seal performance. Clean the sealing surfaces thoroughly and follow the vehicle service procedure for steering gear disassembly and reassembly.
For fitment searches, this part is commonly referenced for 1991-1994 Mitsubishi Eclipse, 1991-1994 Mitsubishi Galant, and 1994-1996 Honda Passport steering gear service.
Quality Assurance
SKF designs and manufactures seals to high quality standards, using application-specific materials and bonding methods developed through long experience in sealing technology. SKF 6622 is built for long service life and dependable steering gear sealing when installed in the correct application.
| Year | Make | Model | Body Type | # Doors | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 1996 | Honda | Passport | — | — | 2.6L | L4 | N/A | — |
| 1995 | Honda | Passport | — | — | 2.6L | L4 | N/A | — |
| 1994 | Honda | Passport | — | — | 2.6L | L4 | N/A | — |
| 1994 | Mitsubishi | Eclipse | — | — | — | — | N/A | — |
| 1994 | Mitsubishi | Galant | — | — | — | — | N/A | — |
| 1994 | Mitsubishi | Mirage | — | — | — | — | N/A | — |
| 1994 | Plymouth | Laser | — | — | — | — | N/A | Std. |
| 1994 | Suzuki | Swift | Sedan | 4 Door | — | — | N/A | — |
| 1993 | Geo | Storm | — | — | — | — | N/A | — |
| 1993 | Mitsubishi | Eclipse | — | — | — | — | N/A | — |
| 1993 | Mitsubishi | Galant | — | — | — | — | N/A | — |
| 1993 | Mitsubishi | Mirage | — | — | — | — | N/A | — |
| 1993 | Mitsubishi | Montero | — | — | — | — | N/A | — |
| 1993 | Plymouth | Laser | — | — | — | — | N/A | Std. |
| 1993 | Suzuki | Swift | Sedan | 4 Door | — | — | N/A | — |
| 1992 | Geo | Storm | — | — | — | — | N/A | — |
| 1992 | Isuzu | Impulse | — | — | — | — | N/A | — |
| 1992 | Isuzu | Stylus | — | — | — | — | N/A | — |
| 1992 | Mitsubishi | Eclipse | — | — | — | — | N/A | — |
| 1992 | Mitsubishi | Galant | — | — | — | — | N/A | — |
| 1992 | Mitsubishi | Mirage | — | — | — | — | N/A | — |
| 1992 | Mitsubishi | Montero | — | — | — | — | N/A | — |
| 1992 | Plymouth | Laser | — | — | — | — | N/A | Std. |
| 1992 | Suzuki | Swift | Sedan | 4 Door | — | — | N/A | — |
| 1991 | Geo | Storm | — | — | — | — | N/A | — |
| 1991 | Isuzu | Impulse | — | — | — | — | N/A | — |
| 1991 | Isuzu | Stylus | — | — | — | — | N/A | — |
| 1991 | Mitsubishi | Eclipse | — | — | — | — | N/A | — |
| 1991 | Mitsubishi | Galant | — | — | — | — | N/A | — |
| 1991 | Mitsubishi | Mirage | — | — | — | — | N/A | — |
| 1991 | Plymouth | Laser | — | — | — | — | N/A | Std. |
| 1990 | Geo | Storm | — | — | — | — | N/A | — |
| 1990 | Isuzu | Impulse | — | — | — | — | N/A | — |
| 1990 | Mitsubishi | Eclipse | — | — | — | — | N/A | From 5/90 |
| 1990 | Mitsubishi | Galant | — | — | — | — | N/A | From 5/90 |
| 1990 | Mitsubishi | Mirage | — | — | — | — | N/A | From 5/90 |
| 1990 | Plymouth | Laser | — | — | — | — | N/A | Std. |
| 1987 | Isuzu | Pickup | — | — | — | — | N/A | Std. |
| 1987 | Isuzu | Trooper | — | — | — | — | N/A | Std. |
| 1986 | Isuzu | Pickup | — | — | — | — | N/A | Std. |
| 1986 | Isuzu | Trooper | — | — | — | — | N/A | Std. |
| 1985 | Isuzu | Pickup | — | — | — | — | N/A | Std. |
| 1985 | Isuzu | Trooper | — | — | — | — | N/A | Std. |
| 1984 | Isuzu | Pickup | — | — | — | — | N/A | Std. |
| 1984 | Isuzu | Trooper | — | — | — | — | N/A | Std. |
| 1984 | Mazda | RX-7 | — | — | — | — | N/A | — |
| 1983 | Isuzu | Pickup | — | — | — | — | N/A | Std. |
| 1982 | Chevrolet | LUV | — | — | — | — | N/A | Std. |
| 1982 | Isuzu | Pickup | — | — | — | — | N/A | Std. |
| 1981 | Chevrolet | LUV | — | — | — | — | N/A | Std. |
| 1981 | Isuzu | Pickup | — | — | — | — | N/A | Std. |
| 1980 | Chevrolet | LUV | — | — | — | — | N/A | Std. |
| 1979 | Chevrolet | LUV | — | — | — | — | N/A | Std. |
| 1978 | Chevrolet | LUV | — | — | — | — | N/A | Std. |
| 1977 | Chevrolet | LUV | — | — | — | — | N/A | Std. |
