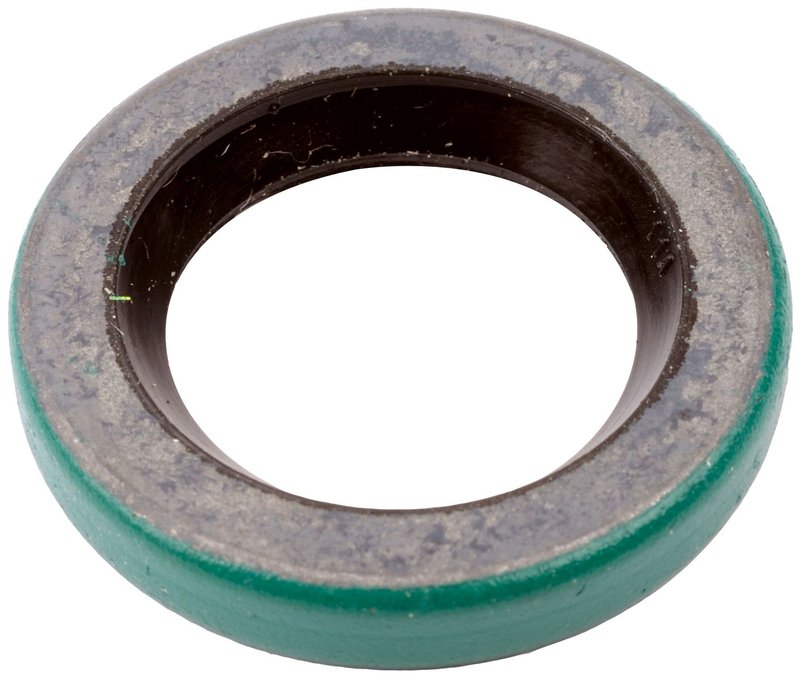

SKF 7414 Transfer Case Shift Shaft Seal

Reliable Transfer Case Shift Shaft Seal for Accurate Sealing

The SKF 7414 Transfer Case Shift Shaft Seal is engineered to provide precise sealing for transfer case shift shafts, helping maintain optimal drivetrain performance. Designed with durable nitrile sealing surfaces, this seal ensures effective protection against leaks and contamination.

• Width: 0.188 inches for a compact, secure fit
• Outside Diameter: 1.128 inches to match OEM specifications
• Shaft Diameter: 0.750 inches for accurate shaft compatibility
• Sealing Surface Type: Nitrile material for resistance to oil and wear
• Part Number: 7414 for easy identification and replacement

Technical Details and Material Specifications

The SKF 7414 seal features a nitrile sealing surface, known for its resistance to petroleum-based fluids and mechanical wear, making it suitable for transfer case applications in various vehicles. The precise dimensions—0.188 inch width, 1.128 inch outside diameter, and 0.750 inch shaft diameter—ensure a tight fit around the shift shaft, minimizing the risk of fluid leaks and contamination ingress. This seal is compatible with transfer cases requiring these specific measurements, commonly found in certain Ford, Chevrolet, and Dodge models.

Common Applications and Problem Resolution

This transfer case shift shaft seal is used to maintain the integrity of the transfer case by preventing fluid leaks and protecting internal components from dirt and debris. It addresses issues such as:

• Preventing transfer case fluid leaks that can lead to drivetrain damage
• Reducing contamination from dirt and moisture entering the transfer case
• Maintaining proper lubrication around the shift shaft
• Minimizing wear on the shift shaft and surrounding components
• Ensuring smooth transfer case shifting operation

Installation Notes and Tips

When installing the SKF 7414 transfer case shift shaft seal, ensure the shaft and housing surfaces are clean and free of debris. Use appropriate tools to press the seal evenly into place without distortion. Lubricate the sealing surface lightly with transfer case fluid before installation to prevent dry running. Verify the seal dimensions match the vehicle’s transfer case specifications, especially for Ford F-150, Chevrolet Silverado, and Dodge Ram models that require a 0.750 inch shaft diameter seal.

Quality Assurance and Warranty Information

SKF manufactures the 7414 transfer case shift shaft seal to meet strict quality standards, ensuring durability and reliable performance. The nitrile sealing surface is tested for resistance to oil and wear under typical operating conditions. While specific warranty terms may vary, SKF products generally come with a limited warranty against manufacturing defects, providing confidence in the product’s longevity and function.
