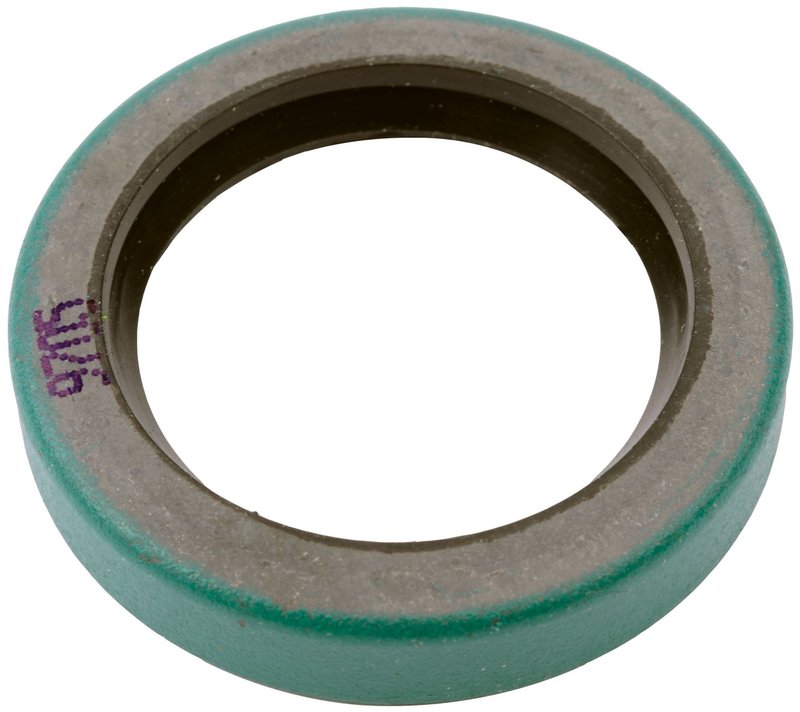

SKF 9705 Manual Transmission Seal - Front

Overview of SKF Manual Transmission Seal 9705

The SKF 9705 manual transmission seal is engineered to provide reliable sealing performance for a range of vehicles including Buick, Cadillac, Chevrolet, Dodge, Mitsubishi, Oldsmobile, and Pontiac models. Designed with precision dimensions and a nitrile sealing surface, this seal helps maintain transmission integrity and prevent fluid leaks.

• Width: 0.276 inches
• Outside Diameter: 1.383 inches
• Shaft Diameter: 0.984 inches
• Sealing Surface Type: Nitrile for durability and resistance
• Compatible with multiple manual transmission applications

Detailed Product Description

The SKF 9705 manual transmission seal features a nitrile sealing surface, which offers excellent resistance to oil, heat, and wear, making it suitable for demanding transmission environments. With a precise outside diameter of 1.383 inches and a shaft diameter of 0.984 inches, this seal ensures a tight fit to prevent leaks and contamination. The 0.276-inch width provides adequate sealing surface area to maintain pressure and fluid retention within the transmission system.

This seal is compatible with a variety of manual transmission vehicles, including Buick models like the Century and Regal, Cadillac Allante, Chevrolet Cavalier and Celebrity, Dodge Challenger, Mitsubishi Mirage and Tredia, Oldsmobile Cutlass series, and Pontiac Grand Am and Sunbird. The SKF 9705 part number is designed to meet or exceed OEM specifications for these applications.

Common Applications and Issues Addressed

• Prevents manual transmission fluid leaks
• Reduces contamination ingress into transmission components
• Maintains proper lubrication and pressure within the transmission
• Helps avoid premature wear of transmission shafts and bearings
• Addresses seal degradation due to heat and oil exposure

Installation Notes and Tips

• Ensure the transmission shaft and housing are clean and free of debris before installation
• Use appropriate tools to avoid damaging the seal during installation
• Verify correct orientation of the seal with the nitrile surface facing the fluid side
• Check shaft diameter and seal dimensions to confirm compatibility
• Lubricate the seal lip lightly with transmission fluid before installation to reduce initial wear

Quality Assurance and Warranty

SKF manufactures the 9705 manual transmission seal to meet stringent quality standards, ensuring consistent performance and durability. The nitrile sealing surface is tested for resistance to oil and temperature variations typical in manual transmissions. While specific warranty details may vary, SKF products generally come with a limited warranty against manufacturing defects, providing confidence in the product's reliability.
