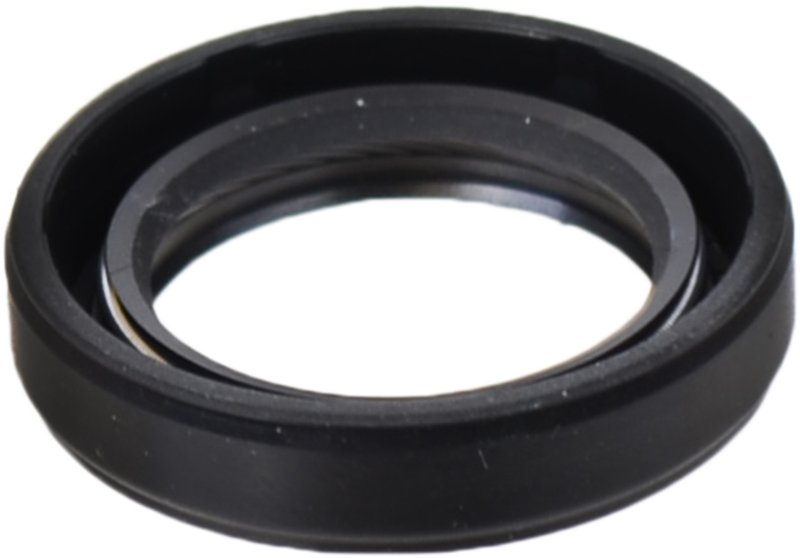

SKF 9846A Manual Transmission Output Shaft Seal - Left or Right

SKF 9846A Manual Transmission Output Shaft Seal

The SKF 9846A is a manual transmission output shaft seal built for precise sealing at the transmission shaft interface. It is designed with a polyacrylate sealing surface and sized to match the specified shaft and housing dimensions for a reliable OE-style fit.

Compatible with select Toyota, Scion, and Lexus applications, including Toyota Corolla, Yaris, Matrix, Celica, MR2 Spyder, and Echo platforms, this seal helps maintain proper lubricant retention in manual transmission service. The SKF 9846A is also a direct cross-reference to part number 9031125028 for the same application.

Key Features

• Manual transmission output shaft seal for transmission sealing service
• Polyacrylate sealing surface type for consistent contact at the shaft
• Outside diameter: 1.466 in.
• Shaft diameter: 0.984 in.
• Width: 0.275 in.
• SKF engineered seal design for OE-style replacement applications
• Part number: 9846A

Application Details

This seal is used in manual transmission output shaft locations on select Toyota and Scion vehicles. Body fitment includes Fits 2007-2018 Toyota Yaris, N/A; Fits 2008-2014 Scion xD, N/A; Fits 2003-2013 Toyota Corolla, N/A; Fits 2007-2011 Toyota Yaris, Left; Fits 2003-2008 Toyota Matrix, N/A; Fits 2004-2006 Scion xA, Right; Fits 2004-2006 Scion xB, Right; Fits 2000-2005 Toyota Celica, N/A; Fits 2000-2005 Toyota MR2 Spyder, N/A; Fits 2000-2004 Toyota Echo, N/A. The SKF 9846A is a practical replacement for manual transmission leak repair on Toyota Corolla and Toyota Yaris applications where the output shaft seal must match the original dimensions.

Common Problems It Can Help Address

• Manual transmission fluid seepage at the output shaft
• Contamination entering the transmission through a worn seal
• Oil residue around the transmission housing
• Seal wear from age, heat, and shaft movement
• Loss of proper lubricant retention during service intervals

Installation Notes and Tips

Confirm shaft diameter, outside diameter, and width before installation to ensure the seal matches the transmission housing. Inspect the shaft surface for scoring or wear, and clean the sealing area thoroughly before pressing the new seal into place. For best results, verify the vehicle application by year, make, model, and position before service. This part number, 9846A, is listed for multiple Toyota and Scion manual transmission applications, so matching the exact position is important.

Quality Assurance

SKF has a long history in seal engineering and manufactures seals to specific designs using premium materials and high quality standards. The brand’s seal development background includes early integrated shaft seal innovation and continued refinement of bonding and material techniques for durable service life.
