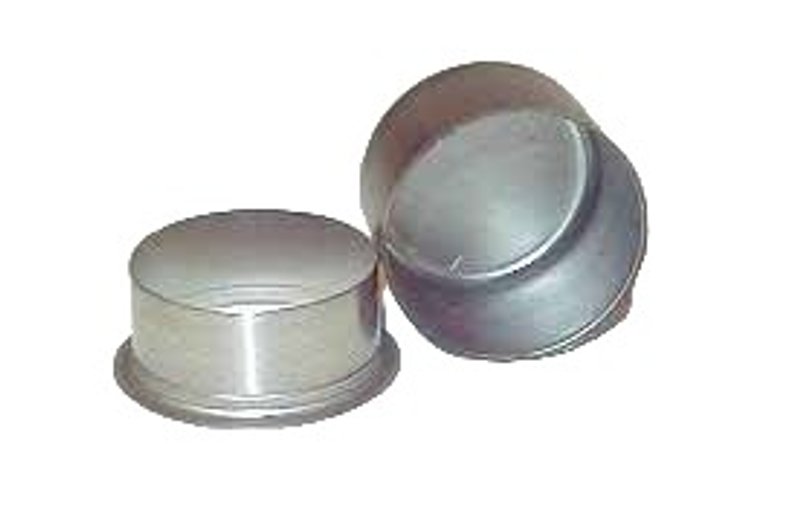

SKF 99219 Automatic Transmission Pinion Repair Sleeve - Left

SKF Speedi-Sleeve for Transmission Shaft Repair

SKF 99219 is an automatic transmission pinion repair sleeve designed to restore a worn shaft sealing surface without removing the shaft. Built from AISI 304 stainless steel, it provides a precise outer surface for the seal and helps return damaged shafts to service quickly.

Compatible with applications including 1991-2013 Acura Legend, TL, and RL, plus Toyota Highlander, Sienna, RAV4, and Lexus RX300, RX330, and RX350. This SKF 99219 sleeve is sized for a 2.283-inch shaft diameter.

Key Features

• Part number: 99219
• Shaft diameter: 2.283 inches
• Made from AISI 304 stainless steel
• Restores a worn sealing surface on the shaft
• Installs without removing the shaft in many applications
• No seal size change required
• Includes an installation tool for proper sleeve placement

Detailed Product Overview

SKF Speedi-Sleeves are used to refinish shafts that have been scored or worn where the seal rides. Instead of regrinding the shaft, this sleeve creates a new sealing surface that supports reliable transmission sealing. For vehicles such as the Toyota Highlander, Toyota Sienna, Lexus RX350, and Acura TL, SKF 99219 offers a practical repair solution when the original shaft surface is no longer smooth enough for the seal to run correctly.

This part cross-references CHR 99219 for the same application.

Common Problems This Sleeve Can Address

• Grooved or scored shaft sealing surfaces
• Oil leakage at the transmission pinion area
• Seal wear caused by shaft surface damage
• Need for shaft repair without full disassembly
• Time-consuming shaft regrinding or refinishing

Installation Notes and Tips

Measure the shaft diameter before installation to confirm the 2.283-inch size. Clean the shaft thoroughly so the sleeve seats evenly, then use the supplied installation tool to position it correctly. In many cases, the sleeve installs without removing the shaft and does not require a seal size change.

Quality Assurance

SKF manufactures Speedi-Sleeves to strict quality standards using stainless steel construction for consistent sealing performance and long service life.
