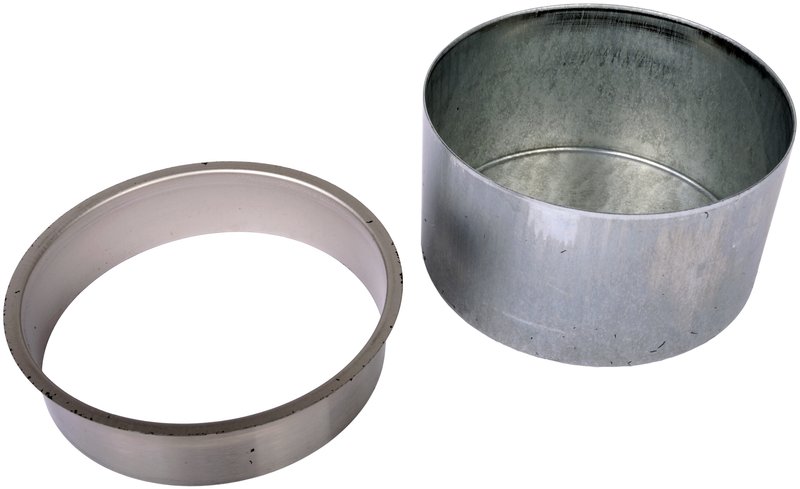

SKF 99393 Engine Crankshaft Repair Sleeve - Rear

SKF Speedi-Sleeve for Rear Shaft Repair

SKF 99393 is an engine crankshaft repair sleeve designed to restore a worn 3.938-inch shaft sealing surface without removing the shaft. It provides a fast repair path for rear applications on BMW 540i, 740i, 740iL, 750iL, M5, X5, Z8, and Toyota Land Cruiser models where shaft wear can affect seal performance.

Key Features

• Shaft diameter: 3.938 inches for the specified repair application
• Refinishes scored or worn shaft surfaces for improved seal contact
• Installs without shaft removal and without changing seal size
• Made from AISI 304 stainless steel for corrosion-resistant durability
• Includes an installation tool for proper sleeve placement
• SKF part number 99393 for direct identification and ordering

Detailed Description

SKF Speedi-Sleeve 99393 is built to restore the sealing surface on a worn rear shaft quickly and accurately. Instead of regrinding the shaft, this sleeve creates a smooth outer surface that supports reliable seal operation on vehicles such as the BMW 540i, BMW 740i, BMW M5, and Toyota Land Cruiser. The 3.938-inch shaft diameter specification is the key sizing detail for selecting the correct repair sleeve, and the stainless-steel construction is intended for long service life in demanding drivetrain and engine environments. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

What It Helps Fix

• Grooved or scored shaft surfaces that prevent proper sealing
• Oil leakage at the rear shaft seal area
• Wear-related seal failure on BMW rear shaft applications
• Surface damage that would otherwise require shaft regrinding
• Time-consuming repair delays when a fast shaft restoration is needed

Installation Notes and Tips

• Confirm the shaft diameter is 3.938 inches before installation.
• Clean the shaft thoroughly so the sleeve seats on a smooth, dry surface.
• Use the supplied installation tool to position the sleeve correctly.
• Verify seal alignment after installation to maintain proper contact on the new surface.
• Fits 1994-1995 BMW 530i, Rear; 1994-1995 BMW 540i, Rear; 1994-1995 BMW 740i, Rear; 1994-2001 BMW 740iL, Rear; 1994-2001 BMW 750iL, Rear; 1994-1997 BMW 840Ci, Rear; 1993-1997 BMW 850Ci, Rear; 1994-1995 BMW 850CSi, Rear; 1991-1992 BMW 850i, Rear; 1997-2003 BMW 540i, Rear; 1997-2001 BMW 740i, Rear; 2000-2003 BMW M5, Rear; 2000-2003 BMW X5, Rear; 2000-2003 BMW Z8, Rear; 1969-1986 Toyota Land Cruiser, Rear; 1987 Toyota Land Cruiser, Rear, Thru 8/87.

Quality Assurance

SKF manufactures Speedi-Sleeves to strict quality standards using AISI 304 stainless steel for consistent fit and sealing performance. SKF 99393 is engineered for dependable shaft repair on rear BMW and Toyota applications where restoring the sealing surface is the priority.
