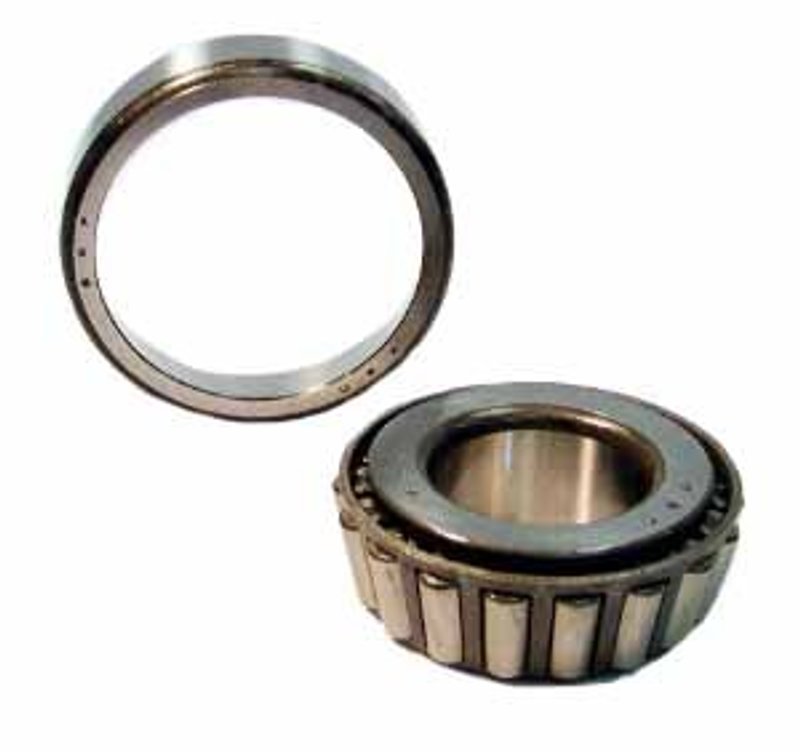

SKF BR54 Manual Transmission Bearing - Front

Overview of SKF BR54 Manual Transmission Bearing

The SKF BR54 manual transmission bearing is engineered for reliable performance in select Ford and Mazda vehicles. Designed with precise dimensions, this bearing supports smooth manual transmission operation in models such as the Ford Bronco and Mazda B2300.

• Inside diameter: 1.375 inches
• Width: 0.763 inches
• Outside diameter: 3.147 inches
• Part number: BR54
• Compatible with Ford and Mazda manual transmissions

Technical Specifications and Design Details

This manual transmission bearing features an inside diameter of 1.375 inches, a width of 0.763 inches, and an outside diameter of 3.147 inches. These dimensions ensure a precise fit within the transmission assembly, contributing to reduced friction and enhanced durability. The SKF BR54 bearing is manufactured to meet OEM standards, providing consistent rotational support for manual gearboxes in vehicles like the Ford Explorer Sport Trac and Mazda B4000.

Compatible Vehicles and Applications

The SKF BR54 bearing is compatible with a range of Ford and Mazda models, including:

• Ford Aerostar
• Ford Bronco and Bronco II
• Ford Explorer and Explorer Sport Trac
• Ford Ranger
• Mazda B2300, B2500, B3000, and B4000

This bearing is specifically designed for manual transmission systems in these vehicles, ensuring proper fitment and reliable operation.

Common Issues Addressed by SKF BR54 Bearing

• Excessive transmission noise due to worn bearings
• Difficulty shifting gears caused by bearing failure
• Transmission overheating from increased friction
• Premature wear of transmission components
• Vibration and rough operation in manual transmissions

Installation Notes and Tips

When installing the SKF BR54 manual transmission bearing, ensure the transmission housing is clean and free of debris. Use appropriate tools to press the bearing into place without causing damage. Verify the bearing dimensions—1.375 inch inside diameter, 0.763 inch width, and 3.147 inch outside diameter—to confirm compatibility with the transmission model. Proper lubrication during installation is recommended to extend bearing life.

Quality Assurance and Warranty

SKF manufactures the BR54 bearing to meet stringent quality standards, ensuring durability and consistent performance in manual transmissions. While specific warranty details may vary, SKF products typically come with a limited warranty covering manufacturing defects. Refer to SKF documentation for exact warranty terms related to the BR54 bearing.
