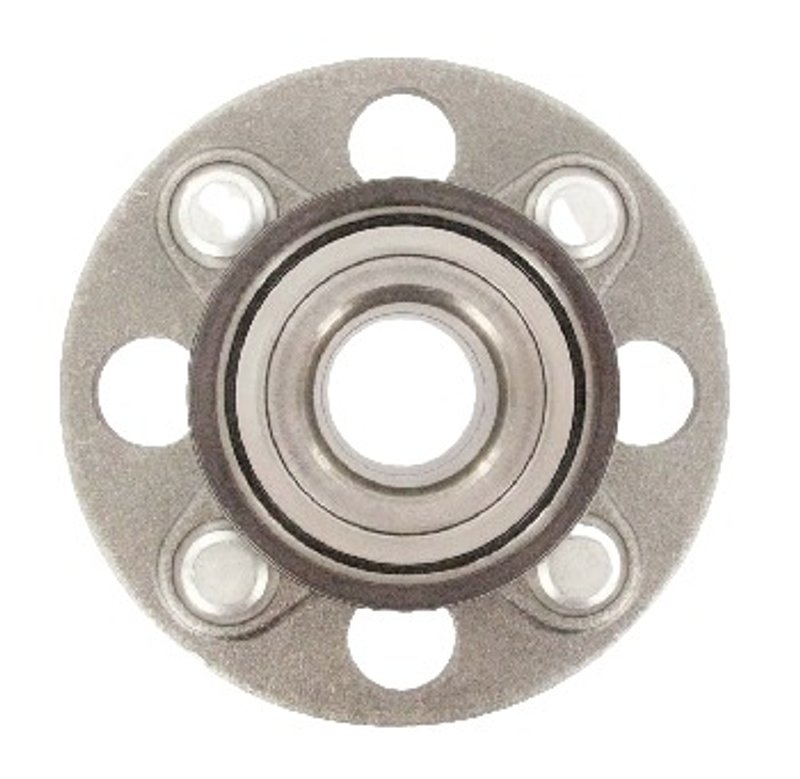

SKF BR930613 Axle Bearing and Hub Assembly - Rear

Overview of SKF BR930613 Axle Bearing and Hub Assembly

The SKF BR930613 axle bearing and hub assembly is engineered for reliable performance in Honda vehicles, specifically compatible with Honda City, Fit, and Insight models. Designed to meet precise specifications, this component ensures proper fit and function for driveline and axle systems.

• Inside Diameter: 1.181 inches for accurate axle fitment
• Wheel Pilot Diameter: 2.204 inches to support wheel alignment
• Brake Pilot Diameter: 2.401 inches ensuring brake component compatibility
• Hub Pilot Diameter: 2.751 inches for secure hub positioning
• Flange Diameter: 5.472 inches providing structural integrity

Detailed Product Description

The SKF BR930613 axle bearing and hub assembly is manufactured to precise dimensional standards, including a 3.937-inch overall diameter. Its inside diameter of 1.181 inches allows for a secure fit on the axle shaft, while the wheel pilot diameter of 2.204 inches ensures proper wheel centering. The brake pilot diameter of 2.401 inches is designed to accommodate brake components accurately, and the hub pilot diameter of 2.751 inches provides a stable mounting surface for the hub. The flange diameter of 5.472 inches contributes to the assembly's strength and durability. This assembly is specifically designed for Honda City, Fit, and Insight models, ensuring compatibility and reliable operation within these vehicles' driveline systems.

Common Applications and Problem Resolution

• Replacement of worn or damaged axle bearings in Honda City, Fit, and Insight
• Addressing wheel vibration or noise caused by faulty hub assemblies
• Resolving brake alignment issues related to hub pilot diameter wear
• Improving wheel stability and reducing play in the driveline
• Maintaining proper flange support to prevent premature component wear

Installation Notes and Tips

When installing the SKF BR930613 axle bearing and hub assembly, ensure the hub pilot diameter aligns precisely with the vehicle’s hub mounting surface to avoid misalignment. Use appropriate tools to press the bearing onto the axle shaft without damaging the inside diameter surface. Verify that the brake pilot diameter matches the brake components to maintain proper brake function. It is recommended to inspect related driveline components during installation for wear or damage.

Quality Assurance and Warranty

SKF manufactures the BR930613 axle bearing and hub assembly to meet stringent quality standards, ensuring durability and performance in Honda driveline applications. While specific warranty details are not provided here, SKF products typically come with manufacturer-backed quality assurance. For warranty information, refer to SKF’s official documentation or contact authorized distributors.
