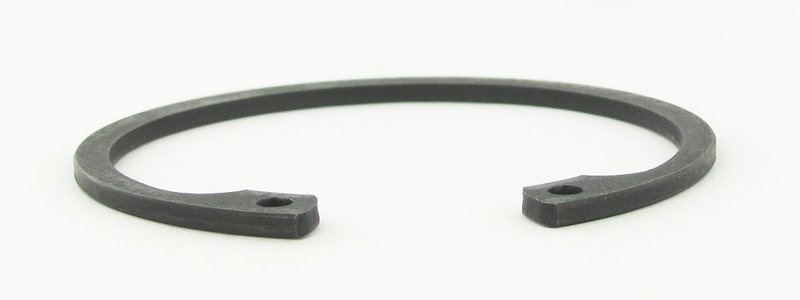

SKF CIR151 Wheel Bearing Retaining Ring - Front

SKF CIR151 Wheel Bearing Retaining Ring

SKF CIR151 is a wheel bearing retaining ring for generation one wheel bearings that secure the bearing inside the steering knuckle. It is a direct-fit hardware replacement for front applications on Chevrolet Tracker, Suzuki Grand Vitara, Suzuki Vitara, Suzuki Sidekick, Suzuki X-90, and Geo Tracker models.

Key Features

• Inside diameter: 2.527 in.
• Outside diameter: 2.868 in.
• Width: 0.094 in.
• Built to meet or exceed OEM specifications for fit and retention
• Used with generation one wheel bearings to hold the bearing in the steering knuckle
• Fits front applications on select Chevrolet, Suzuki, and Geo vehicles

Detailed Description

The SKF CIR151 retaining ring is specified for wheel bearing retention in front hub and knuckle assemblies where a C-clip style retainer is required. Its measured dimensions of 2.527-inch inside diameter, 2.868-inch outside diameter, and 0.094-inch width help ensure proper seating during bearing service. For front wheel bearing service on 1989-1998 Suzuki Sidekick, 1996-1998 Suzuki X-90, 1999-2000 Suzuki Grand Vitara, 1999-2000 Suzuki Vitara, 1989-1997 Geo Tracker, and 1989-1991 or 1998-2000 Chevrolet Tracker, this part number provides the correct retaining-ring format for the application. SKF CIR151 is also referenced by part numbers 96055318 and 0938168001 for the same application.

What It Helps Address

• Rusted or damaged retaining rings removed during wheel bearing service
• Loose bearing retention inside the steering knuckle
• Improper seating of a generation one wheel bearing
• Front hub assembly service on Chevrolet Tracker, Suzuki Sidekick, and Geo Tracker models
• Replacement of worn C-clips during bearing and hub unit installation

Installation Notes and Tips

Inspect the steering knuckle groove before installation and clean away corrosion or debris so the ring seats fully. Replace the old clip when servicing the bearing hub unit, especially if the original ring shows rust, distortion, or removal damage. Confirm the dimensions and vehicle application before installation on front wheel bearing assemblies.

Quality Assurance

SKF manufactures this retaining ring to meet or exceed OEM specifications and test requirements. That focus on dimensional accuracy and retention performance supports reliable wheel bearing service on the listed front applications.
