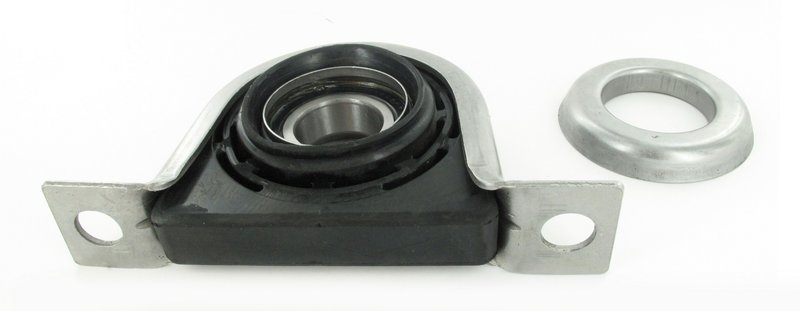

SKF HB209-KF Drive Shaft Center Support Bearing

Overview of SKF Drive Shaft Center Support Bearing HB209-KF

The SKF HB209-KF drive shaft center support bearing is designed for reliable driveline performance in Ford and Mazda trucks. Specifically compatible with Ford Ranger and Mazda B4000 models, this bearing supports the drive shaft to reduce vibration and maintain alignment.

• Inside diameter: 1.181 inches for precise shaft fitment
• Outside diameter: 6.910 inches ensuring secure housing placement
• Overall width: 5.906 inches for optimal support and durability
• Compatible with Ford Ranger and Mazda B4000 drive shafts
• Part number HB209-KF for accurate identification and replacement

Technical Details and Specifications

The SKF HB209-KF drive shaft center support bearing features a robust design with an inside diameter of 1.181 inches, allowing it to fit snugly around the drive shaft. The outside diameter measures 6.910 inches, providing a stable interface with the bearing housing. With a width of 5.906 inches, this bearing offers sufficient surface area to support the drive shaft and reduce wear. This part is engineered to meet the specific requirements of Ford Ranger and Mazda B4000 models, ensuring proper driveline alignment and smooth operation.

Applications and Problem Solving

This center support bearing is used to stabilize the drive shaft in vehicles where a two-piece drive shaft is present. It helps address common driveline issues such as:

• Excessive vibration or noise from the driveline
• Misalignment of the drive shaft causing premature wear
• Worn or damaged original center support bearing
• Drive shaft movement leading to drivetrain instability
• Reduced driveline performance due to bearing failure

Installation Notes and Tips

When installing the SKF HB209-KF bearing, ensure the drive shaft is properly supported and aligned. Use appropriate tools to press the bearing into place without damaging the rubber or metal components. Verify the inside diameter matches the drive shaft diameter of 1.181 inches for a secure fit. After installation, check for smooth rotation and absence of play to confirm correct mounting.

Quality Assurance and Warranty

SKF is a recognized manufacturer of automotive bearings, known for precision engineering and durability. The HB209-KF drive shaft center support bearing is manufactured to meet OEM specifications for Ford Ranger and Mazda B4000 vehicles. While specific warranty details may vary, SKF products typically come with a limited warranty covering defects in materials and workmanship to ensure reliability and customer confidence.
