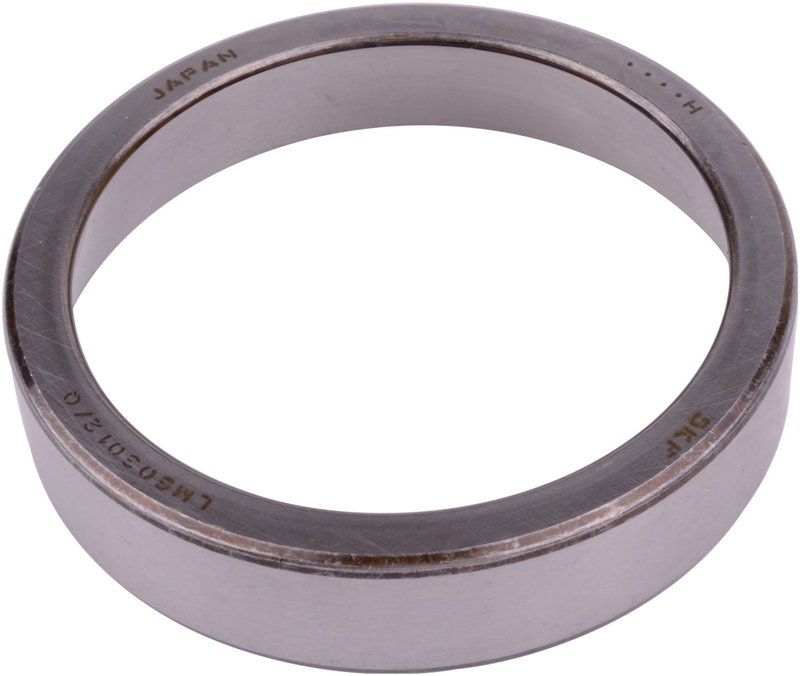

SKF LM603012 Automatic Transmission Pinion Race

Overview of SKF A/Trsax Pinion Bearing Cup-Inner LM603012

The SKF A/Trsax Pinion Bearing Cup-Inner LM603012 is a precision-engineered automatic transmission pinion race designed for reliable performance in a wide range of vehicles. This part is essential for maintaining proper transmission function in models from Buick, Chevrolet, Ford, Jeep, and many others.

• Width: 0.843 inches
• Outside Diameter: 3.063 inches
• Part Number: LM603012
• Brand: SKF
• Category: Transmission Bearings

About the A/Trsax Pinion Bearing Cup-Inner Product Line

The A/Trsax Pinion Bearing Cup-Inner line by SKF focuses on high-quality bearing cups specifically designed for automatic transmission pinion races. These components are manufactured to precise dimensions to ensure optimal fit and durability within the transmission assembly. The LM603012 part is part of this line, offering consistent performance and compatibility with a broad range of vehicle makes and models.

Detailed Product Description

This SKF LM603012 pinion bearing cup-inner features a width of 0.843 inches and an outside diameter of 3.063 inches, making it suitable for specific automatic transmission applications. The bearing cup is engineered to provide a stable raceway for the pinion bearing, reducing wear and maintaining proper alignment under operational stresses. Its robust construction supports smooth transmission operation and helps extend the service life of the transmission system.

Compatible Vehicles and Applications

• Compatible with Buick, Cadillac, Chevrolet, Chrysler, Dodge, Ford, GMC, Hummer, Isuzu, Jeep, Lincoln, Mazda, Mercury, Oldsmobile, Plymouth, Pontiac, Ram, Saab
• Fits models including 9-7x, 300M, Aerostar, Avalanche, Blazer, Camaro, Colorado, Corvette, Crown Victoria, Dakota, Durango, Escalade, Explorer, F-150, Grand Cherokee, Impala, Mustang, Navigator, Silverado 1500, Tahoe, Town Car, Yukon, and many others
• Designed for use in automatic transmission pinion bearing assemblies

Common Issues Addressed by LM603012

• Wear or damage to the pinion bearing race causing transmission noise
• Improper bearing alignment leading to premature transmission wear
• Transmission vibration or rough shifting due to worn bearing cups
• Leaking or failing bearing surfaces affecting transmission performance
• Replacement during transmission rebuilds or maintenance

Installation Notes and Tips

• Ensure the transmission is properly supported and clean before installation
• Use appropriate tools to press the bearing cup evenly into place without damage
• Verify dimensions (width 0.843 inches, outside diameter 3.063 inches) match OEM specifications
• Inspect mating components for wear and replace as necessary
• Follow vehicle-specific service manual instructions for torque and assembly procedures

Quality Assurance and Warranty

SKF manufactures the LM603012 pinion bearing cup-inner to meet strict quality standards, ensuring durability and reliable performance in demanding transmission environments. While specific warranty details may vary, SKF products typically come with manufacturer-backed quality assurance to support professional automotive repairs and rebuilds.
