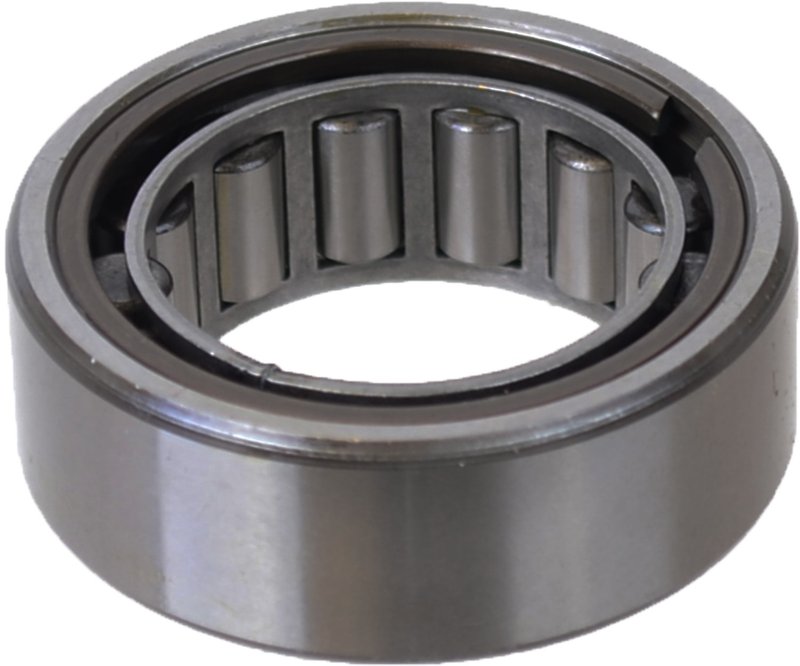

SKF R1535-TAV Differential Pinion Pilot Bearing - Rear

Overview of SKF Differential Pinion Pilot Bearing R1535-TAV

The SKF Differential Pinion Pilot Bearing R1535-TAV is engineered for precise fitment in select Ford, Lincoln, and Mercury vehicles. Designed to support the differential pinion shaft, this bearing ensures smooth drivetrain operation and durability under demanding conditions.

• Inside Diameter: 1.109 inches
• Width: 0.656 inches
• Outside Diameter: 1.850 inches
• Compatible with multiple Ford, Lincoln, and Mercury models
• Part Number: R1535-TAV for accurate identification

Technical Specifications and Fitment Details

This differential pinion pilot bearing features an inside diameter of 1.109 inches, a width of 0.656 inches, and an outside diameter of 1.850 inches, making it suitable for precise alignment and support of the pinion shaft. The part number R1535-TAV corresponds to a bearing designed to fit a range of vehicles including Ford Bronco, Mustang, F-150, Lincoln Continental, Mercury Cougar, and several Econoline models among others. This ensures compatibility with driveline systems requiring these exact dimensions.

Applications and Problem Solving

The SKF R1535-TAV bearing is used primarily to support the differential pinion shaft, reducing friction and wear in the driveline assembly. It addresses common issues such as:

• Excessive pinion shaft play causing drivetrain noise
• Premature bearing wear leading to differential failure
• Vibration and rough operation in the differential assembly
• Misalignment of the pinion shaft affecting gear engagement
• Heat buildup due to inadequate bearing support

Installation Notes and Tips

Proper installation of the SKF R1535-TAV bearing is critical for optimal performance. Ensure the bearing is pressed in evenly without applying excessive force that could damage the bearing or housing. Clean the installation area thoroughly to remove debris and old lubricant. Verify the bearing dimensions against the vehicle’s specifications before installation. Lubricate the bearing as recommended by the vehicle manufacturer to prevent premature wear.

Quality Assurance and Warranty

SKF manufactures the R1535-TAV differential pinion pilot bearing to meet stringent quality standards. The bearing undergoes rigorous testing to ensure durability and performance in automotive driveline applications. While specific warranty details may vary, SKF typically offers coverage against manufacturing defects, providing confidence in the product’s reliability for Ford, Lincoln, and Mercury vehicle owners.
