Home› Driveline and Axles > Service Kits› SKF SDK320-C Axle Differential Bearing and Seal Kit - Rear
SKF SDK320-C Axle Differential Bearing and Seal Kit - RearOE Quality 60-Day Returns
Part #: SDK320-C

SKF SDK320-C Axle Differential Bearing and Seal Kit - Rear

Rear
64 vehicles fit this part
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$140.85Free Shipping
Free ShippingNo Cost to Continental U.S.
Free Returns*Wrong fit? No cost
60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
In Stock · Ready To Ship Most orders ship same-day if ordered before 1pm CST.
OE Direct Replacement — Bolt-on fit, no modifications needed
Fitment: Chevrolet, GMC, Isuzu, Oldsmobile, and Pontiac, Astro, Blazer, Bravada, Camaro, Firebird, Hombre, Jimmy, S10, Safari, and Sonoma
Easy Returns — Return within 60 days for a full refund
Fast Shipping — Most orders ship same business day before 1pm CST
Not what you need? See all Axle Differential Bearing and Seal Kit options

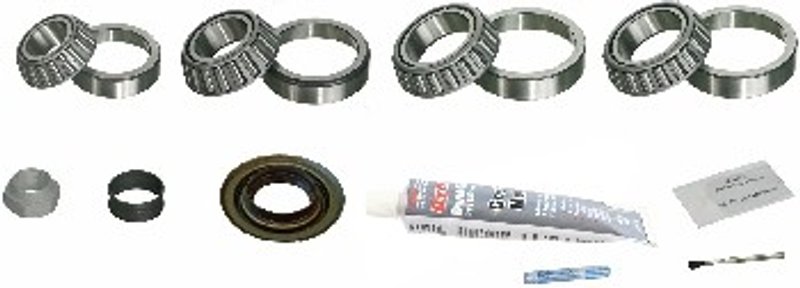

SKF SDK320-C Axle Differential Bearing and Seal Kit

SKF SDK320-C is an axle differential bearing and seal kit for rear differential service on select Chevrolet, GMC, Pontiac, Oldsmobile, and Isuzu applications. It is built around the 11.0000 inside diameter and 2.500 width bearing specification, with DIFF2TP bearing type details for the listed applications.

Key Features

  • Axle differential bearing and seal kit for rear service
  • Inside diameter: 11.0000
  • Width: 2.500
  • Bearing type: DIFF2TP
  • SKF seals use Bore-Tite coating for improved sealing performance
  • Bearings include matching cones and cups
  • Form-fitting gaskets and silicone sealant are provided where applicable

Application Details

This SKF SDK320-C kit is built for rear differential repair on vehicles with a 7.5-inch or 7.50-inch ring gear, including Fits 1999-2005 Chevrolet Astro, rear; Fits 1999-2005 Chevrolet Blazer, rear; Fits 1999-2005 GMC Jimmy, rear; Fits 1999-2005 GMC Safari, rear; Fits 1999-2004 Chevrolet S10, rear; Fits 1999-2004 GMC Sonoma, rear; Fits 1999-2004 Oldsmobile Bravada, rear; Fits 1999-2002 Chevrolet Camaro, rear; Fits 1999-2002 Pontiac Firebird, rear; and Fits 1999-2000 Isuzu Hombre, rear. This part number, SDK320-C, is also listed for interchange reference with 1-102-095 and KW1734.

What This Kit Helps Repair

  • Rear differential bearing noise
  • Gear oil seepage at the differential seals
  • Wear-related bearing roughness or looseness
  • Leak points that can affect differential lubrication
  • Service issues on 7.5-inch ring gear rear axles

Installation Notes

Verify ring gear size, axle configuration, and rear axle application before installation. Clean all sealing surfaces thoroughly and inspect the differential housing, bearings, and races for wear before assembly. Follow factory service procedures for bearing preload, backlash, and seal installation to complete the repair correctly.

Quality Assurance

SKF manufactures these kits to meet or exceed original equipment specifications. The included bearings, seals, and related components are engineered for complete differential service, helping reduce repeat repairs and supporting long-term reliability in the listed Chevrolet, GMC, Pontiac, Oldsmobile, and Isuzu applications.

BrandSKF
Part NumberSDK320-C
Inside Diameter11.0000
Width2.500
Bearing TypeDiff2tp

This part fits 64 vehicles. Search below:

YearMakeModelPositionNotes
2005ChevroletAstroRearStandard Kit; 7.5" Ring Gear
2005ChevroletBlazerRearStandard Kit; 7.5" Ring Gear
2005GMCJimmyRearStandard Kit; 7.5" Ring Gear
2005GMCSafariRearStandard Kit; 7.5" Ring Gear
2004ChevroletAstroRearStandard Kit; 7.5" Ring Gear
2004ChevroletBlazerRearStandard Kit; 7.5" Ring Gear
2004ChevroletS10RearStandard Kit; 7.5" Ring Gear
2004GMCJimmyRearStandard Kit; 7.5" Ring Gear
2004GMCSafariRearStandard Kit; 7.5" Ring Gear
2004GMCSonomaRearStandard Kit; 7.5" Ring Gear
2004OldsmobileBravadaRearStandard Kit; 7.50" Ring Gear
2003ChevroletAstroRearStandard Kit; 7.5" Ring Gear
2003ChevroletBlazerRearStandard Kit; 7.5" Ring Gear
2003ChevroletS10RearStandard Kit; 7.5" Ring Gear
2003GMCJimmyRearStandard Kit; 7.5" Ring Gear
2003GMCSafariRearStandard Kit; 7.5" Ring Gear
2003GMCSonomaRearStandard Kit; 7.5" Ring Gear
2003OldsmobileBravadaRearStandard Kit; 7.50" Ring Gear
2002ChevroletAstroRearStandard Kit; 7.5" Ring Gear
2002ChevroletBlazerRearStandard Kit; 7.5" Ring Gear
2002ChevroletBlazerRearStandard Kit; 7.50" Ring Gear
2002ChevroletCamaroRearStandard Kit; 7.50" Ring Gear
2002ChevroletS10RearStandard Kit; 7.5" Ring Gear
2002ChevroletS10RearStandard Kit; 7.50" Ring Gear
2002GMCJimmyRearStandard Kit; 7.5" Ring Gear
2002GMCSafariRearStandard Kit; 7.5" Ring Gear
2002GMCSonomaRearStandard Kit; 7.5" Ring Gear
2002OldsmobileBravadaRearStandard Kit; 7.50" Ring Gear
2002PontiacFirebirdRearStandard Kit; 7.5" Ring Gear
2001ChevroletAstroRearStandard Kit; 7.5" Ring Gear
2001ChevroletBlazerRearStandard Kit; 7.5" Ring Gear
2001ChevroletBlazerRearStandard Kit; 7.50" Ring Gear
2001ChevroletCamaroRearStandard Kit; 7.50" Ring Gear
2001ChevroletS10RearStandard Kit; 7.5" Ring Gear
2001ChevroletS10RearStandard Kit; 7.50" Ring Gear
2001GMCJimmyRearStandard Kit; 7.5" Ring Gear
2001GMCSafariRearStandard Kit; 7.5" Ring Gear
2001GMCSonomaRearStandard Kit; 7.5" Ring Gear
2001OldsmobileBravadaRearStandard Kit; 7.50" Ring Gear
2001PontiacFirebirdRearStandard Kit; 7.5" Ring Gear
2000ChevroletAstroRearStandard Kit; 7.5" Ring Gear
2000ChevroletBlazerRearStandard Kit; 7.5" Ring Gear
2000ChevroletBlazerRearStandard Kit; 7.50" Ring Gear
2000ChevroletCamaroRearStandard Kit; 7.50" Ring Gear
2000ChevroletS10RearStandard Kit; 7.5" Ring Gear
2000ChevroletS10RearStandard Kit; 7.50" Ring Gear
2000GMCJimmyRearStandard Kit; 7.5" Ring Gear
2000GMCSafariRearStandard Kit; 7.5" Ring Gear
2000GMCSonomaRearStandard Kit; 7.5" Ring Gear
2000IsuzuHombreRearStandard Kit; 7.50" Ring Gear
2000OldsmobileBravadaRearStandard Kit; 7.50" Ring Gear
2000PontiacFirebirdRearStandard Kit; 7.5" Ring Gear
1999ChevroletAstroRearStandard Kit; 7.5" Ring Gear
1999ChevroletBlazerRearStandard Kit; 7.5" Ring Gear
1999ChevroletBlazerRearStandard Kit; 7.50" Ring Gear
1999ChevroletCamaroRearStandard Kit; 7.50" Ring Gear
1999ChevroletS10RearStandard Kit; 7.5" Ring Gear
1999ChevroletS10RearStandard Kit; 7.50" Ring Gear
1999GMCJimmyRearStandard Kit; 7.5" Ring Gear
1999GMCSafariRearStandard Kit; 7.5" Ring Gear
1999GMCSonomaRearStandard Kit; 7.5" Ring Gear
1999IsuzuHombreRearStandard Kit; 7.50" Ring Gear
1999OldsmobileBravadaRearStandard Kit; 7.50" Ring Gear
1999PontiacFirebirdRearStandard Kit; 7.5" Ring Gear

* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.

This part directly replaces or is cross-referenced with the following part numbers:

1-102-095181306230448320897C138140EZ20B550754723873UA9420096C0DW4621AKW1734

Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
