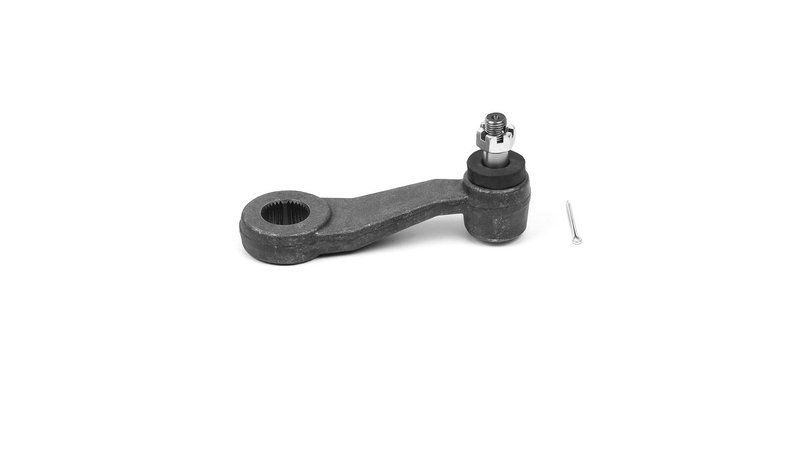

SKF VKDY135029 Steering Pitman Arm - Front
| Brand | SKF VKDY135029 |
|---|---|
| Position | Front |
| Length | 7.264 |
| Overall Height | 3.252 |
| Greaseable | Yes |
| Fits | Chevrolet, GMC, Isuzu, and Oldsmobile · 47 vehicles |
Greaseable design. Supports routine lubrication service for steering maintenance.
OE-focused engineering. SKF applies global testing standards across its steering and suspension range.
Cross-references 14032278 for the same application. See all 1.
Steering Pitman Arm Overview
The SKF VKDY135029 steering pitman arm is built for front steering applications on select Chevrolet, GMC, Oldsmobile, and Isuzu models. It is a greaseable replacement part with defined dimensions for service-focused steering repair.
Key Features
- Greaseable design for routine lubrication service.
- Length measures 7.264 inches for application-specific fitment.
- Overall height measures 3.252 inches.
- Fits front steering applications on Chevrolet Blazer, Chevrolet S10, GMC Sonoma, GMC Jimmy, Oldsmobile Bravada, and Isuzu Hombre.
- SKF VKDY135029 is backed by SKF testing and material standards.
Detailed Description
SKF VKDY135029 is a steering pitman arm for front-position applications on 1995-2005 Chevrolet Blazer, 1995-2004 Chevrolet S10, 1995-2004 GMC Sonoma, 1995-2001 GMC Jimmy, 1996-2001 Oldsmobile Bravada, and 1998-2000 Isuzu Hombre. This part cross-references 14032278 for the same application. The greaseable construction supports periodic maintenance, while the listed dimensions help confirm application match during steering system repair. SKF applies OE-focused engineering and global testing practices across its steering and suspension range, including the VKDY135029.
Common Uses
- Restoring steering linkage response when the original pitman arm is worn.
- Addressing looseness or play in the steering system.
- Replacing a damaged or corroded steering pitman arm.
- Supporting proper steering geometry after suspension or steering service.
Installation Notes
Verify fitment by year, make, model, and front position before installation. Compare the existing part dimensions and service condition with the replacement part number VKDY135029. Follow the fitting instructions and technical bulletins available from SKF for installation guidance.
Quality Assurance
SKF states that its steering and suspension products are tested to meet material and performance standards in worldwide facilities. Technical support resources are available through the QR code on the box label.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2005 | Chevrolet | Blazer | 4WD | Front | — |
| 2004 | Chevrolet | Blazer | 4WD | Front | — |
| 2004 | Chevrolet | S10 | — | Front | — |
| 2004 | GMC | Sonoma | 4WD | Front | — |
| 2003 | Chevrolet | Blazer | 4WD | Front | — |
| 2003 | Chevrolet | S10 | 4WD | Front | — |
| 2003 | GMC | Sonoma | 4WD | Front | — |
| 2002 | Chevrolet | Blazer | 4WD | Front | — |
| 2002 | Chevrolet | S10 | 4WD | Front | — |
| 2002 | GMC | Sonoma | 4WD | Front | — |
| 2001 | Chevrolet | Blazer | 4WD | Front | — |
| 2001 | Chevrolet | S10 | 4WD | Front | — |
| 2001 | GMC | Jimmy | 4WD | Front | — |
| 2001 | GMC | Sonoma | 4WD | Front | — |
| 2001 | Oldsmobile | Bravada | — | Front | — |
| 2000 | Chevrolet | Blazer | 4WD | Front | — |
| 2000 | Chevrolet | S10 | 4WD | Front | — |
| 2000 | GMC | Jimmy | 4WD | Front | — |
| 2000 | GMC | Sonoma | 4WD | Front | — |
| 2000 | Isuzu | Hombre | 4WD | Front | — |
| 2000 | Oldsmobile | Bravada | — | Front | — |
| 1999 | Chevrolet | Blazer | 4WD | Front | — |
| 1999 | Chevrolet | S10 | 4WD | Front | — |
| 1999 | GMC | Jimmy | 4WD | Front | — |
| 1999 | GMC | Sonoma | 4WD | Front | — |
| 1999 | Isuzu | Hombre | 4WD | Front | — |
| 1999 | Oldsmobile | Bravada | — | Front | — |
| 1998 | Chevrolet | Blazer | 4WD | Front | — |
| 1998 | Chevrolet | S10 | 4WD | Front | — |
| 1998 | GMC | Jimmy | 4WD | Front | — |
| 1998 | GMC | Sonoma | 4WD | Front | — |
| 1998 | Isuzu | Hombre | 4WD | Front | — |
| 1998 | Oldsmobile | Bravada | — | Front | — |
| 1997 | Chevrolet | Blazer | 4WD | Front | — |
| 1997 | Chevrolet | S10 | 4WD | Front | — |
| 1997 | GMC | Jimmy | 4WD | Front | — |
| 1997 | GMC | Sonoma | 4WD | Front | — |
| 1997 | Oldsmobile | Bravada | — | Front | — |
| 1996 | Chevrolet | Blazer | 4WD | Front | — |
| 1996 | Chevrolet | S10 | 4WD | Front | — |
| 1996 | GMC | Jimmy | 4WD | Front | — |
| 1996 | GMC | Sonoma | 4WD | Front | — |
| 1996 | Oldsmobile | Bravada | — | Front | — |
| 1995 | Chevrolet | Blazer | 4WD | Front | — |
| 1995 | Chevrolet | S10 | 4WD | Front | — |
| 1995 | GMC | Jimmy | 4WD | Front | — |
| 1995 | GMC | Sonoma | 4WD | Front | — |
