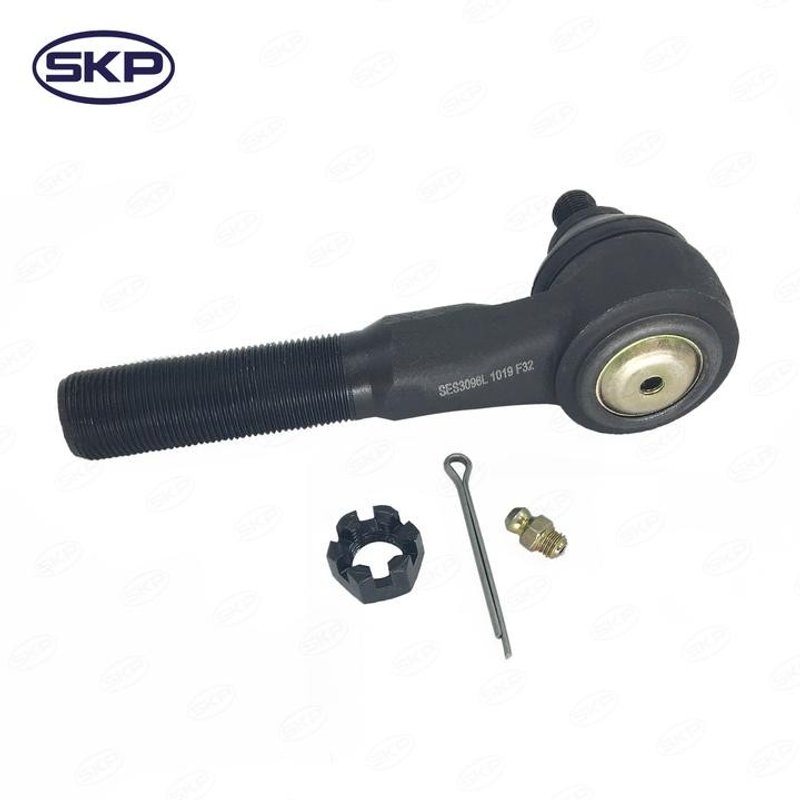

SKP SES3096L Steering Tie Rod End - At Pitman Arm, Inner or Left Outer
| Brand | SKP SES3096L |
|---|---|
| Position | Inner, At Pitman Arm, and Left Outer |
| Fits | Jeep · 58 vehicles |
Tie rod end. Direct replacement for steering linkage service.
Restores precise steering response and control.
Cross-references Mevotech Supreme MES3096L, MOOG Chassis Products ES3096L and 52005739 for the same application. See all 5.
Jeep Steering Tie Rod End
The SKP SES3096L steering tie rod end is a direct-fit steering component for select Jeep applications that use left-hand threads and 22mm threads. It is used at the pitman arm or in left-side steering positions on specific Cherokee, Grand Cherokee, Wrangler, Comanche, TJ, and Grand Wagoneer models.
Key Features
- Steering tie rod end for Jeep steering linkage service
- Fits at pitman arm, inner, and left outer positions depending on application
- Left-hand thread design on listed applications
- 22mm thread specification on listed applications
- Cross-references MOOG Chassis Products ES3096L and Mevotech Supreme MES3096L
- Part number: SES3096L
Application Details
Compatible with 1997-2006 Jeep TJ, at pitman arm; 1997-2006 Jeep Wrangler, at pitman arm; 1991-2001 Jeep Cherokee, inner; 1993-1998 Jeep Grand Cherokee, inner and left outer; 1991-1995 Jeep Wrangler, left outer; 1993 Jeep Grand Wagoneer, inner and left outer; and 1991-1992 Jeep Comanche, at pitman arm. This SKP SES3096L is a practical replacement when servicing Jeep steering linkage wear on these specific configurations.
Common Issues This Part Can Address
- Steering looseness or excessive play in the linkage
- Clunking or knocking from worn steering joints
- Uneven steering response caused by worn tie rod end components
- Difficulty maintaining alignment after steering service
- Wear at the pitman arm or left-side steering connection points
Installation Notes and Tips
Verify the vehicle year, model, and steering position before ordering, since this part is listed for multiple Jeep applications with different mounting locations. Confirm left-hand thread and 22mm thread requirements on the vehicle before installation. After replacement, a professional wheel alignment is recommended to restore proper steering geometry.
Quality Assurance
SKP replacement steering components are cataloged for direct application matching, and SES3096L is listed against established aftermarket references for the same Jeep steering applications.
| Year | Make | Model | Drive Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2006 | Jeep | TJ | 4WD | — | — | At Pitman Arm | — |
| 2006 | Jeep | Wrangler | 4WD | — | — | At Pitman Arm | — |
| 2005 | Jeep | TJ | 4WD | — | — | At Pitman Arm | — |
| 2005 | Jeep | Wrangler | 4WD | — | — | At Pitman Arm | — |
| 2004 | Jeep | TJ | 4WD | — | — | At Pitman Arm | — |
| 2004 | Jeep | Wrangler | 4WD | — | — | At Pitman Arm | — |
| 2003 | Jeep | TJ | 4WD | — | — | At Pitman Arm | — |
| 2003 | Jeep | Wrangler | 4WD | — | — | At Pitman Arm | — |
| 2002 | Jeep | TJ | 4WD | — | — | At Pitman Arm | — |
| 2002 | Jeep | Wrangler | 4WD | — | — | At Pitman Arm | — |
| 2001 | Jeep | Cherokee | — | — | — | Inner | Left Hand Threads; 22mm Threads |
| 2001 | Jeep | TJ | 4WD | — | — | At Pitman Arm | — |
| 2001 | Jeep | Wrangler | 4WD | — | — | At Pitman Arm | — |
| 2000 | Jeep | Cherokee | — | — | — | Inner | Left Hand Threads; 22mm Threads |
| 2000 | Jeep | TJ | 4WD | — | — | At Pitman Arm | — |
| 2000 | Jeep | Wrangler | 4WD | — | — | At Pitman Arm | — |
| 1999 | Jeep | Cherokee | — | — | — | Inner | Left Hand Threads; 22mm Threads |
| 1999 | Jeep | TJ | 4WD | — | — | At Pitman Arm | — |
| 1999 | Jeep | Wrangler | 4WD | — | — | At Pitman Arm | — |
| 1998 | Jeep | Cherokee | — | — | — | Inner | Left Hand Threads; 22mm Threads |
| 1998 | Jeep | Grand Cherokee | — | 5.2L | V8 | Inner | Left Hand Threads; 22mm Threads |
| 1998 | Jeep | Grand Cherokee | — | 4.0L | L6 | Inner | Left Hand Threads; 22mm Threads |
| 1998 | Jeep | Grand Cherokee | — | 5.2L | V8 | Left Outer | Left Hand Threads; 22mm Threads |
| 1998 | Jeep | TJ | 4WD | — | — | At Pitman Arm | — |
| 1998 | Jeep | Wrangler | 4WD | — | — | At Pitman Arm | — |
| 1997 | Jeep | Cherokee | — | — | — | Inner | Left Hand Threads; 22mm Threads |
| 1997 | Jeep | Grand Cherokee | — | 5.2L | V8 | Inner | Left Hand Threads; 22mm Threads |
| 1997 | Jeep | Grand Cherokee | — | 4.0L | L6 | Inner | Left Hand Threads; 22mm Threads |
| 1997 | Jeep | Grand Cherokee | — | 5.2L | V8 | Left Outer | Left Hand Threads; 22mm Threads |
| 1997 | Jeep | TJ | 4WD | — | — | At Pitman Arm | — |
| 1997 | Jeep | Wrangler | 4WD | — | — | At Pitman Arm | — |
| 1996 | Jeep | Cherokee | — | — | — | Inner | Left Hand Threads; 22mm Threads |
| 1996 | Jeep | Grand Cherokee | — | 5.2L | V8 | Inner | Left Hand Threads; 22mm Threads |
| 1996 | Jeep | Grand Cherokee | — | 4.0L | L6 | Inner | Left Hand Threads; 22mm Threads |
| 1996 | Jeep | Grand Cherokee | — | 5.2L | V8 | Left Outer | Left Hand Threads; 22mm Threads |
| 1995 | Jeep | Cherokee | — | — | — | Inner | Left Hand Threads; 22mm Threads |
| 1995 | Jeep | Grand Cherokee | — | 5.2L | V8 | Inner | Left Hand Threads; 22mm Threads |
| 1995 | Jeep | Grand Cherokee | — | 4.0L | L6 | Inner | Left Hand Threads; 22mm Threads |
| 1995 | Jeep | Grand Cherokee | — | 5.2L | V8 | Left Outer | Left Hand Threads; 22mm Threads |
| 1995 | Jeep | Wrangler | 4WD | — | — | Left Outer | — |
| 1994 | Jeep | Cherokee | — | — | — | Inner | Left Hand Threads; 22mm Threads |
| 1994 | Jeep | Grand Cherokee | — | 5.2L | V8 | Inner | Left Hand Threads; 22mm Threads |
| 1994 | Jeep | Grand Cherokee | — | 4.0L | L6 | Inner | Left Hand Threads; 22mm Threads |
| 1994 | Jeep | Grand Cherokee | — | 5.2L | V8 | Left Outer | Left Hand Threads; 22mm Threads |
| 1994 | Jeep | Wrangler | 4WD | — | — | Left Outer | — |
| 1993 | Jeep | Cherokee | — | — | — | Inner | Left Hand Threads; 22mm Threads |
| 1993 | Jeep | Grand Cherokee | — | 5.2L | V8 | Inner | Left Hand Threads; 22mm Threads |
| 1993 | Jeep | Grand Cherokee | — | 4.0L | L6 | Inner | Left Hand Threads; 22mm Threads |
| 1993 | Jeep | Grand Cherokee | — | 5.2L | V8 | Left Outer | Left Hand Threads; 22mm Threads |
| 1993 | Jeep | Grand Wagoneer | — | — | — | Inner | Left Hand Threads; 22mm Threads |
| 1993 | Jeep | Grand Wagoneer | — | — | — | Left Outer | Left Hand Threads; 22mm Threads |
| 1993 | Jeep | Wrangler | 4WD | — | — | Left Outer | — |
| 1992 | Jeep | Cherokee | — | — | — | Inner | Left Hand Threads; 22mm Threads |
| 1992 | Jeep | Comanche | — | — | — | At Pitman Arm | Left Hand Threads; 22mm Threads |
| 1992 | Jeep | Wrangler | 4WD | — | — | Left Outer | — |
| 1991 | Jeep | Cherokee | — | — | — | Inner | Left Hand Threads; 22mm Threads |
| 1991 | Jeep | Comanche | — | — | — | At Pitman Arm | Left Hand Threads; 22mm Threads |
| 1991 | Jeep | Wrangler | 4WD | — | — | Left Outer | — |
