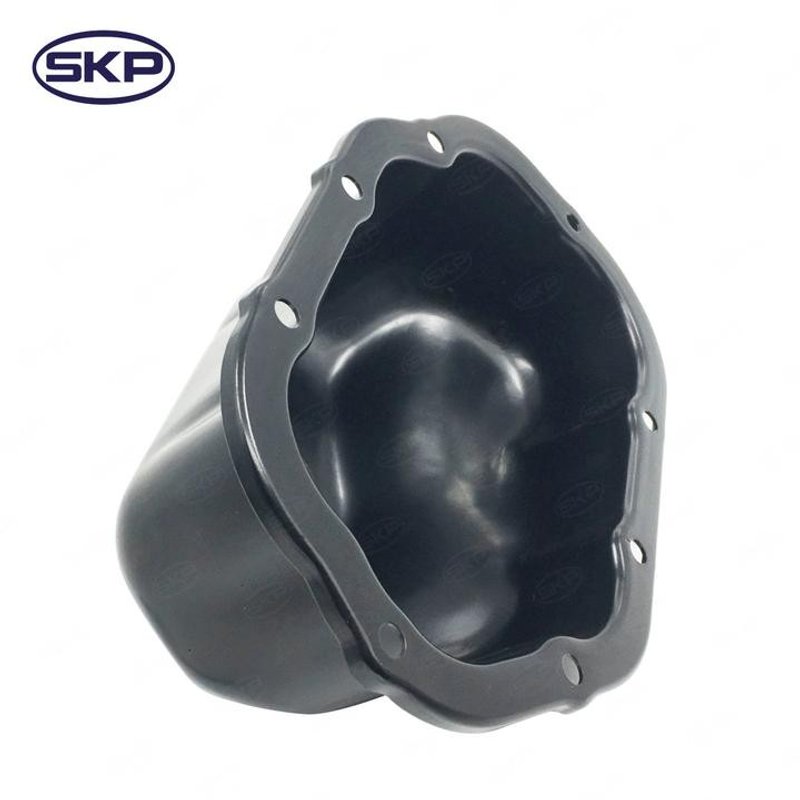

SKP SK264365 Engine Oil Pan

Engine Oil Pan for Subaru Legacy and Outback

This SKP engine oil pan is a direct-fit replacement for select Subaru Legacy and Subaru Outback models. Built with a coated black finish and a drain plug included, it provides the core features needed for a clean oil service and reliable crankcase sealing.

Key Features

• Direct replacement engine oil pan for Subaru applications
• Black coated surface finish for added corrosion resistance
• Drain plug included for service convenience
• 8 mounting holes for OE-style installation
• M16x1.5 drain thread size with 17 mm drain plug socket size
• No oil level sensor port and no dipstick port
• Dimensions: 6.7 in. length, 5.0 in. width, 4.5 in. depth

Detailed Description

SKP SK264365 is an engine oil pan designed for 2010-2015 Subaru Outback and 2010-2013 Subaru Legacy models. It is built to replace a damaged, rusted, or leaking oil pan while maintaining the original mounting layout and drain configuration. The coated black finish helps protect the pan surface, and the included drain plug supports routine oil changes. This part cross-references Dorman OE Solutions 264-365 for the same application. SK264365 is a practical replacement choice when servicing Subaru Legacy or Subaru Outback engines that require the specified OE-style pan design.

What It Helps Fix

• Engine oil leaks from a cracked or corroded oil pan
• Stripped or damaged drain threads
• Poor sealing at the lower engine crankcase
• Oil loss caused by impact damage to the pan
• Service issues from a missing or worn drain plug

Installation Notes and Tips

Before installation, verify the pan matches the vehicle’s mounting pattern, drain thread size, and sensor-port configuration. This oil pan does not include a gasket or seal, so the correct sealing component must be sourced separately. Clean the mating surfaces thoroughly and inspect the drain plug threads before filling with oil. Compatible With 2010-2015 Subaru Outback and 2010-2013 Subaru Legacy applications that use this pan design.

Quality Assurance

SKP SK264365 is manufactured as an OE-style replacement part for the listed Subaru fitments. Confirm vehicle year and engine configuration against the application data before ordering. Part number SK264365 is also referenced by OE-style interchange numbers 11109AA200 and 11109AA202.
