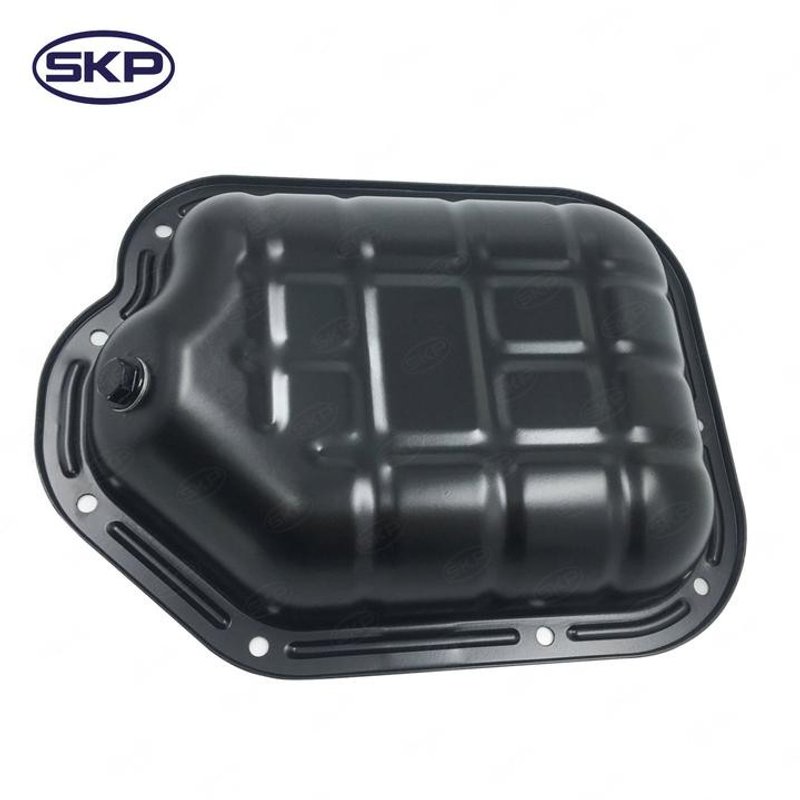

SKP SK264505 Engine Oil Pan - Lower

Engine Oil Pan for Nissan and INFINITI Applications

This SKP engine oil pan is a direct replacement for select Nissan and INFINITI lower engine applications. Built with a coated black finish and a drain plug included, SK264505 is made for drivers replacing a damaged, leaking, or corroded oil pan on the engine block.

Key Features

• Brand: SKP
• Part number: SK264505
• Engine oil pan for lower engine mounting locations
• Black coated surface finish for added corrosion resistance
• Drain plug included
• Drain thread size: M12 x 1.25
• Drain plug socket size: 14 mm
• Mounting hole quantity: 10
• Dimensions: 14.96 in. length, 2.03 in. width, 2.56 in. depth
• No oil level sensor port and no dipstick port
• No gasket or seal included

Detailed Description

SK264505 is an engine oil pan designed for lower-position fitment on select Nissan Maxima, Nissan Murano, Nissan Altima, Nissan Quest, INFINITI I35, and INFINITI I30 models. It provides the oil reservoir at the bottom of the engine and includes a drain plug for routine oil service. The coated black finish helps protect the pan surface, while the 10-hole mounting layout supports proper installation on the intended engine block configuration.

This part cross-references Dorman OE Solutions 264-505 for the same application. It is also referenced by OE number 111102Y000 and interchange number 264505.

What This Oil Pan Helps Address

• Oil leaks caused by a cracked or rusted pan
• Damaged drain threads or a stripped drain opening
• Impact damage from road debris or underbody contact
• Corrosion on an original lower engine oil pan
• Service issues when the existing pan no longer seals correctly

Installation Notes and Tips

Verify lower-position fitment before installation and compare the mounting hole layout, drain thread size, and overall dimensions to the original pan. Because no gasket or seal is included, reuse or replacement of the sealing component must be handled separately. Clean the mating surface thoroughly and inspect the drain plug threads before filling with oil.

Compatible With 2000-2007 Nissan Maxima, lower; 2002-2006 Nissan Altima, lower; 2003-2007 Nissan Murano, lower; 2004-2005 Nissan Quest, lower; 2007-2009 Nissan Quest, lower; 2006 Nissan Quest, N/A; 2000-2001 INFINITI I30, lower; 2002-2004 INFINITI I35, lower; and 2008 Nissan Maxima, lower to 5/08.

Quality Assurance

SKP replacement parts are built for direct-fit service applications and are specified here with the listed dimensions, ports, and mounting details to support accurate vehicle matching for Nissan Maxima, Nissan Altima, Nissan Murano, Nissan Quest, INFINITI I35, and INFINITI I30 applications.
