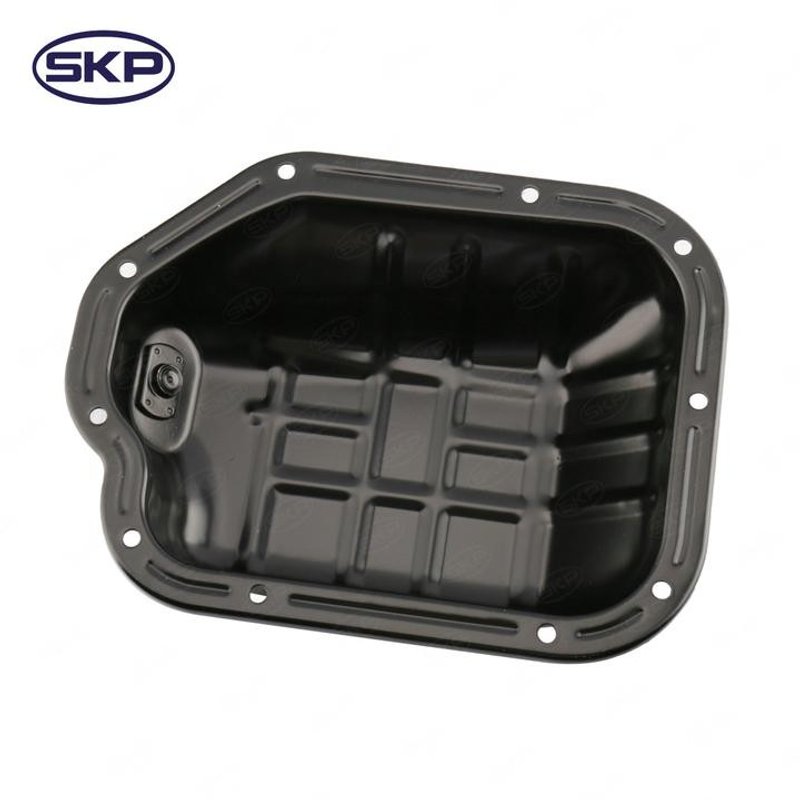

SKP SK264534 Engine Oil Pan - Lower
| Brand | SKP SK264534 |
|---|---|
| Position | Lower |
| Length | 11.1 |
| Color | Black |
| Oil Level Sensor Port | No |
| Dipstick Port | No |
| Drain Plug Included | Yes |
| Gasket Or Seal Included | No |
| Mounting Hole Quantity | 10 |
| Depth | 2.5 |
| Drain Plug Socket size | 14 |
| Drain Thread Size | M12 x 1.25 |
| Surface finish | Coated |
| Width | 8.5 |
| Fits | Nissan · 13 vehicles |
Coated finish. Helps resist wear and keeps the oil pan looking clean.
Drain plug included. Ready for service with the plug already provided.
No sensor or dipstick ports. A clean, simplified oil pan design.
Cross-references Dorman - OE Solutions 264-534, Spectra Premium NSP24C and 111109N00B for the same application. See all 4.
Engine Oil Pan for Nissan Maxima
Replace a damaged or leaking lower oil pan with this SKP engine oil pan, part number SK264534. It is built for select Nissan Maxima applications and matches the OE-style layout for the lower engine position.
- Fits 2009-2020 Nissan Maxima, lower
- Fits 2008 Nissan Maxima, lower, from 5/08
- Black coated surface finish for added corrosion resistance
- Drain plug included with M12 x 1.25 drain thread size
- 10 mounting holes for proper installation alignment
- No oil level sensor port and no dipstick port
- Dimensions: 11.1 in. length, 8.5 in. width, 2.5 in. depth
Product Details
The SKP SK264534 engine oil pan is a direct-fit replacement for the lower oil pan used on select Nissan Maxima models. It is designed with a coated black finish, a 14 mm drain plug socket size, and a drain plug already included. This oil pan does not include a gasket or seal, so the correct sealing component must be sourced separately for installation. For buyers searching for a Nissan Maxima oil pan replacement, SK264534 provides the correct mounting-hole layout and drain-thread specification for the listed applications.
This part cross-references Dorman OE Solutions 264-534 and Spectra Premium NSP24C for the same application.
Common Repair Uses
- Repairing a cracked or punctured oil pan
- Stopping engine oil leaks from the lower pan area
- Replacing a stripped drain thread or damaged drain plug seat
- Restoring proper oil containment after corrosion or impact damage
- Addressing seepage around the oil pan sealing surface
Installation Notes
Confirm the vehicle is a 2008 Nissan Maxima built from 5/08 or a 2009-2020 Nissan Maxima before installation. Verify the lower pan configuration, drain thread size, and mounting-hole count against the original part. Because no gasket or seal is included, install with the correct separate sealing component and follow factory torque specifications during assembly.
Quality Assurance
SKP replacement parts are built to match the listed application details for fit and function. Review the OE-style dimensions, drain plug specification, and interchange references SK264534 before ordering to confirm the correct Nissan Maxima oil pan replacement.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2020 | Nissan | Maxima | 3.5L | V6 | Lower | — |
| 2019 | Nissan | Maxima | 3.5L | V6 | Lower | — |
| 2018 | Nissan | Maxima | 3.5L | V6 | Lower | — |
| 2017 | Nissan | Maxima | 3.5L | V6 | Lower | — |
| 2016 | Nissan | Maxima | 3.5L | V6 | Lower | — |
| 2015 | Nissan | Maxima | 3.5L | V6 | Lower | — |
| 2014 | Nissan | Maxima | 3.5L | V6 | Lower | — |
| 2013 | Nissan | Maxima | 3.5L | V6 | Lower | — |
| 2012 | Nissan | Maxima | 3.5L | V6 | Lower | — |
| 2011 | Nissan | Maxima | 3.5L | V6 | Lower | — |
| 2010 | Nissan | Maxima | 3.5L | V6 | Lower | — |
| 2009 | Nissan | Maxima | 3.5L | V6 | Lower | — |
| 2008 | Nissan | Maxima | 3.5L | V6 | Lower | From 5/08 |
