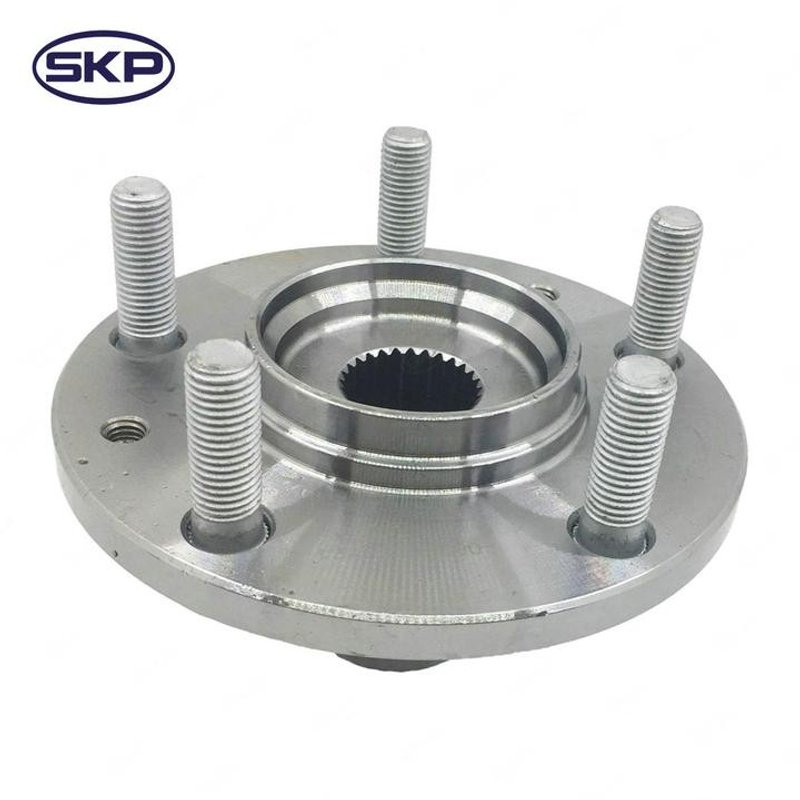

SKP SK930015 Wheel Hub - Front or Rear
| Brand | SKP SK930015 |
|---|---|
| Position | Front and Rear |
| Spline Quantity | 28 |
| Wheel Stud Quantity | 5 |
| Flange Shape | Circle |
| Bolt Circle Diameter | 114.3 |
| Flange Bolt Hole Diameter | 12 |
| Flange Diameter | 140 |
| Knurling | 14.3 |
| Wheel Pilot Diameter | 72 |
| Wheel Stud Size | 29.5 |
| Wheel Stud Thread Pitch | 1.5 |
| Fits | Ford, Lincoln, and Mercury · 37 vehicles |
Direct-fit replacement. Built for the specified hub dimensions and stud pattern.
OE-style dimensions. Uses a 28-spline design with a 114.3 bolt circle diameter.
Application-specific fitment. Cataloged for select driveline and axle service needs.
Cross-references Dorman - OE Solutions 930-015, 6E5Z1104AB and 770-1426 for the same application. See all 3.
Wheel Hub for Ford Fusion, Lincoln MKZ, Mercury Milan
SKP SK930015 is a wheel hub for select Ford, Lincoln, and Mercury applications. It is built around the hub mounting and wheel attachment dimensions needed for direct replacement service on compatible vehicles.
Key Features
- Wheel hub assembly for driveline and axle service.
- 5-wheel-stud pattern with a 114.3 bolt circle diameter.
- 28-spline design for the specified applications.
- 72 mm wheel pilot diameter for wheel centering.
- 14.3 knurling and 1.5 thread pitch for the listed fitments.
Detailed Description
SKP SK930015 is a replacement wheel hub engineered for compatible Ford Fusion, Lincoln MKZ, Mercury Milan, and Lincoln Zephyr vehicles. The hub uses a circular flange shape, 140 mm flange diameter, and 12 mm flange bolt hole diameter, along with the specified stud and spline dimensions to match the original application requirements. This part cross-references Dorman - OE Solutions 930-015 for the same application.
For buyers searching for a Ford Fusion wheel hub, Lincoln MKZ wheel hub, or Mercury Milan wheel hub, SKP SK930015 provides the fitment and dimensional details needed for front and rear service where listed. It is also a fitment-based option for 2006-2012 Ford Fusion, 2007-2012 Lincoln MKZ, and 2006-2011 Mercury Milan applications.
What It Is Used For
- Restoring proper wheel mounting on a worn hub.
- Replacing a hub with damaged studs or spline wear.
- Addressing wheel fitment issues tied to hub dimensions.
- Servicing noise or looseness associated with hub wear.
Installation Notes and Tips
Verify the vehicle year, make, model, and position before ordering. Confirm the 28-spline count, 5-stud pattern, 114.3 bolt circle diameter, and 72 mm wheel pilot diameter against the original part. Match the listed front or rear application exactly for Ford Fusion, Lincoln MKZ, Mercury Milan, or Lincoln Zephyr fitment.
Quality Assurance
SKP replacement parts are cataloged for direct-fit service applications and are identified by part number SK930015 for ordering and verification.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2012 | Ford | Fusion | — | Front | — |
| 2012 | Ford | Fusion | AWD | Rear | — |
| 2012 | Lincoln | MKZ | — | Front | — |
| 2012 | Lincoln | MKZ | AWD | Rear | — |
| 2011 | Ford | Fusion | — | Front | — |
| 2011 | Ford | Fusion | AWD | Rear | — |
| 2011 | Lincoln | MKZ | — | Front | — |
| 2011 | Lincoln | MKZ | AWD | Rear | — |
| 2011 | Mercury | Milan | — | Front | — |
| 2011 | Mercury | Milan | AWD | Rear | — |
| 2010 | Ford | Fusion | — | Front | — |
| 2010 | Ford | Fusion | AWD | Rear | — |
| 2010 | Lincoln | MKZ | — | Front | — |
| 2010 | Lincoln | MKZ | AWD | Rear | — |
| 2010 | Mercury | Milan | — | Front | — |
| 2010 | Mercury | Milan | AWD | Rear | — |
| 2009 | Ford | Fusion | — | Front | — |
| 2009 | Ford | Fusion | AWD | Rear | — |
| 2009 | Lincoln | MKZ | — | Front | — |
| 2009 | Lincoln | MKZ | AWD | Rear | — |
| 2009 | Mercury | Milan | — | Front | — |
| 2009 | Mercury | Milan | AWD | Rear | — |
| 2008 | Ford | Fusion | — | Front | — |
| 2008 | Ford | Fusion | AWD | Rear | — |
| 2008 | Lincoln | MKZ | — | Front | — |
| 2008 | Lincoln | MKZ | AWD | Rear | — |
| 2008 | Mercury | Milan | — | Front | — |
| 2008 | Mercury | Milan | AWD | Rear | — |
| 2007 | Ford | Fusion | — | Front | — |
| 2007 | Ford | Fusion | AWD | Rear | — |
| 2007 | Lincoln | MKZ | — | Front | — |
| 2007 | Lincoln | MKZ | AWD | Rear | — |
| 2007 | Mercury | Milan | — | Front | — |
| 2007 | Mercury | Milan | AWD | Rear | — |
| 2006 | Ford | Fusion | — | Front | — |
| 2006 | Lincoln | Zephyr | — | Front | — |
| 2006 | Mercury | Milan | — | Front | — |
