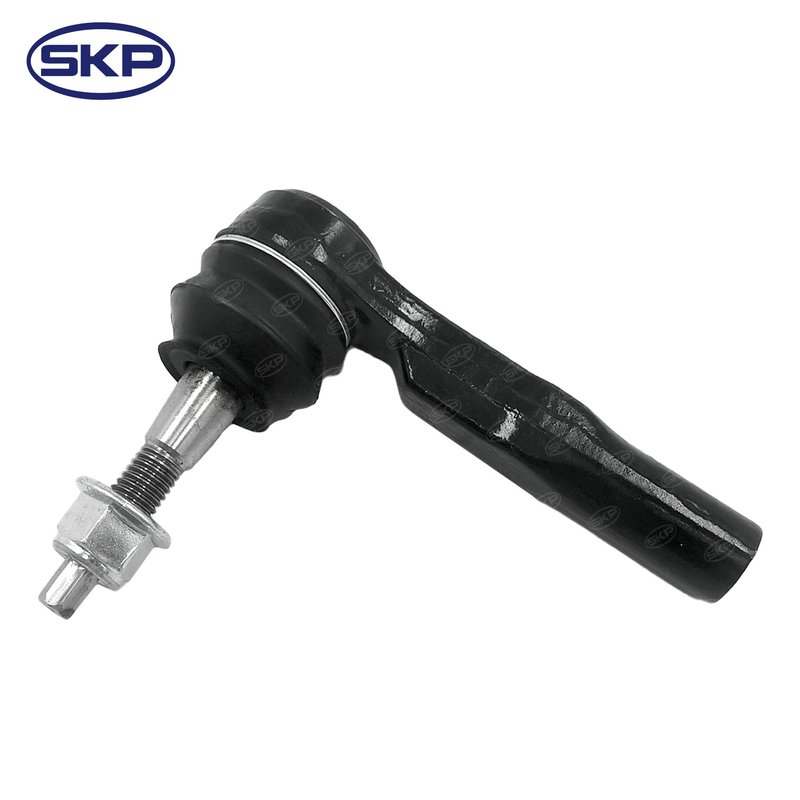

SKP SKMS50614 Steering Tie Rod End - Front Outer
| Brand | SKP SKMS50614 |
|---|---|
| Position | Front Outer |
| Length | 140 |
| Color | Black |
| End 2 Gender | Female |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Dust Boot Included | Yes |
| Width | 41 |
| Type | Straight |
| Mounting Hardware Included | Yes |
| Height | 111 |
| Housing Material | High strength steel |
| Tube Diameter | 0.78 |
| Tube Diameter | 19.8 |
| Adjustable | No |
| Greaseable | No |
| Weight | 1.19 |
| Cone Outside Diameter | 18.2 |
| Bearing Material | Plastic |
| End 1 Thread Direction | Clockwise (right) |
| End 2 Thread Direction | Clockwise (right) |
| Stud Type | Threaded |
| Dust Boot Material | Choloroprene rubber (cr) |
| Tie Rod Material | Steel |
| End 1 Thread Diameter | 12 |
| End 1 Thread Pitch | 1.75 |
| End 2 Thread Diameter | 14 |
| End 2 Thread Pitch | 1.5 |
| Package Contents | Flange-nut |
| Fits | Buick, Cadillac, Chevrolet, and GMC · 40 vehicles |
OE-spec construction. Built to meet or exceed OE specifications for fit and performance.
Pre-greased design. Ready for service with a dust boot included to help protect the joint.
Steel housing. High-strength steel construction supports durable steering linkage operation.
Cross-references Delphi TA5216, Dorman - OE Solutions 544-631 and Dorman - Premium TO91045XL for the same application. See all 15.
Steering Tie Rod End Overview
The SKP Steering Tie Rod End, part number SKMS50614, restores precise steering response by transferring motion from the inner tie rod to the wheels. It is built with durable materials and engineered to meet or exceed OE specifications for a direct-fit replacement.
Key Features
- Direct replacement steering tie rod end for compatible applications
- High-strength steel housing with steel tie rod construction
- Pre-greased design with a dust boot included
- Threaded stud design with clockwise thread direction on both ends
- Mounting hardware included for installation
Detailed Description
SKP part number SKMS50614 is a straight steering tie rod end designed for vehicles that need accurate steering linkage control and stable wheel movement. Its female end configuration, threaded stud, and OE-style dimensions support proper alignment and secure connection in the steering system. The black finish, chloroprene rubber dust boot, and pre-greased construction help protect internal components from contamination and wear. This tie rod end is a practical replacement for Chevrolet Equinox, GMC Terrain, Buick Envision, and Cadillac SRX applications where the front outer steering linkage requires service.
This part cross-references MOOG Chassis Products ES800640 and Delphi TA5216 for the same application.
What It Helps Address
- Loose or imprecise steering feel
- Excessive play in the steering linkage
- Wear-related steering noise or vibration
- Contamination at the steering joint
- Service needs on the front outer steering connection
Installation Notes and Tips
Fits 2010-2024 Chevrolet Equinox, front outer. Fits 2010-2024 GMC Terrain, front outer. Fits 2017-2018 Buick Envision, front outer. Fits 2020 Buick Envision, front outer. Fits 2010-2016 Cadillac SRX, front outer. Verify thread direction, thread size, and alignment settings before installation. A professional alignment is recommended after steering component replacement.
Quality Assurance
SKP states this tie rod end is manufactured to meet or exceed OE specifications for fit and performance.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2024 | Chevrolet | Equinox | — | — | Front Outer | — |
| 2024 | GMC | Terrain | — | — | Front Outer | — |
| 2023 | Chevrolet | Equinox | — | — | Front Outer | — |
| 2023 | GMC | Terrain | — | — | Front Outer | — |
| 2022 | Chevrolet | Equinox | — | — | Front Outer | — |
| 2022 | GMC | Terrain | — | — | Front Outer | — |
| 2021 | Chevrolet | Equinox | — | — | Front Outer | — |
| 2021 | GMC | Terrain | — | — | Front Outer | — |
| 2020 | Buick | Envision | 2.5L | L4 | Front Outer | — |
| 2020 | Chevrolet | Equinox | — | — | Front Outer | — |
| 2020 | GMC | Terrain | — | — | Front Outer | — |
| 2019 | Chevrolet | Equinox | — | — | Front Outer | — |
| 2019 | GMC | Terrain | — | — | Front Outer | — |
| 2018 | Buick | Envision | 2.5L | L4 | Front Outer | — |
| 2018 | Chevrolet | Equinox | — | — | Front Outer | — |
| 2018 | GMC | Terrain | — | — | Front Outer | — |
| 2017 | Buick | Envision | 2.5L | L4 | Front Outer | — |
| 2017 | Chevrolet | Equinox | — | — | Front Outer | — |
| 2017 | GMC | Terrain | — | — | Front Outer | — |
| 2016 | Cadillac | SRX | — | — | Front Outer | — |
| 2016 | Chevrolet | Equinox | — | — | Front Outer | — |
| 2016 | GMC | Terrain | — | — | Front Outer | — |
| 2015 | Cadillac | SRX | — | — | Front Outer | — |
| 2015 | Chevrolet | Equinox | — | — | Front Outer | — |
| 2015 | GMC | Terrain | — | — | Front Outer | — |
| 2014 | Cadillac | SRX | — | — | Front Outer | — |
| 2014 | Chevrolet | Equinox | — | — | Front Outer | — |
| 2014 | GMC | Terrain | — | — | Front Outer | — |
| 2013 | Cadillac | SRX | — | — | Front Outer | — |
| 2013 | Chevrolet | Equinox | — | — | Front Outer | — |
| 2013 | GMC | Terrain | — | — | Front Outer | — |
| 2012 | Cadillac | SRX | — | — | Front Outer | — |
| 2012 | Chevrolet | Equinox | — | — | Front Outer | — |
| 2012 | GMC | Terrain | — | — | Front Outer | — |
| 2011 | Cadillac | SRX | — | — | Front Outer | — |
| 2011 | Chevrolet | Equinox | — | — | Front Outer | — |
| 2011 | GMC | Terrain | — | — | Front Outer | — |
| 2010 | Cadillac | SRX | — | — | Front Outer | — |
| 2010 | Chevrolet | Equinox | — | — | Front Outer | — |
| 2010 | GMC | Terrain | — | — | Front Outer | — |
