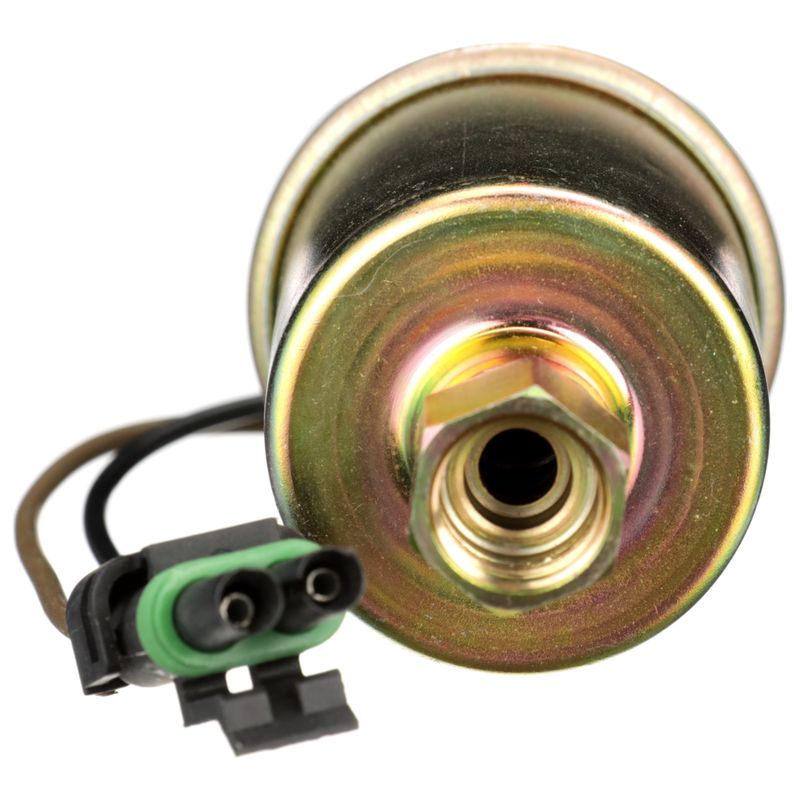

Sparta PN1002 Electric Fuel Pump - In-Line - view 1
Sparta PN1002 Electric Fuel Pump - In-Line - view 2
Sparta PN1002 Electric Fuel Pump - In-Line - view 3
Sparta PN1002 Electric Fuel Pump - In-Line - view 4
Sparta PN1002 Electric Fuel Pump - In-Line - view 5
Sparta PN1002 Electric Fuel Pump - In-Line - view 6
Sparta PN1002 Electric Fuel Pump - In-Line - view 7
Part #: PN1002

Sparta PN1002 Electric Fuel Pump - In-Line

In-Line
⚙️ 172 vehicles fit this part
🔍
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$42.81Free Shipping
🚚Free ShippingNo Cost to Continental U.S.
🔄Free Returns*Wrong fit? No cost
🛡️60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
🔥
✅ In Stock · Ready To Ship Most orders ship same-day if ordered before 1pm CST.
✅OE Direct Replacement — Bolt-on fit, no modifications needed
🚗Fitment: Chevrolet and GMC, Blazer, C1500, C1500 Suburban, C2500, C2500 Suburban, C3500, Express 2500, Express 3500, G2500, G30, G3500, K1500, K1500 Suburban, K2500, K2500 Suburban, K3500, P30, P3500, Savana 2500, Savana 3500, Tahoe, and Yukon
🔄Easy Returns — Return within 60 days for a full refund
🚚Fast Shipping — Most orders ship same business day before 1pm CST
Not what you need? Click here for all Electric Fuel Pump options

Sparta PN1002 Electric Fuel Pump Overview

Sparta PN1002 is a standard replacement external electric fuel pump for diesel applications that require a specific-fit, in-line design. It is built for higher-mileage and earlier-model vehicles and is backed by OE fuel system expertise through Delphi distribution.

Compatible With Chevrolet Express 2500 and Express 3500, GMC Savana 2500 and Savana 3500, plus a wide range of Chevrolet and GMC trucks, SUVs, and vans from 1994-2002.

Key Features

  • 12-volt electric fuel pump for diesel fuel systems
  • External, in-line installation with specific fitment
  • Solenoid pump design with 7-9 psi operating pressure
  • Average flow rating of 32.0 and 2.0 amp current draw
  • Female threaded inlet and outlet connections
  • Round female connector with 2 terminals and pin-style terminals
  • Seal and lock ring included
  • Standard replacement grade for service applications

Detailed Description

Sparta PN1002 is an electric fuel pump engineered for diesel-powered vehicles that use an external, in-line fuel delivery setup. The pump operates on 12 volts, uses a solenoid design, and is specified with a 7 to 9 psi pressure range and 32.0 average flow rating. Its female threaded inlet and outlet, M16-1.5 inlet thread size, and round female connector support direct replacement use in the correct application. This part number, PN1002, is listed for Chevrolet and GMC platforms including Express, Savana, C/K trucks, Suburban, Tahoe, Yukon, Blazer, and related commercial models.

This part cross-references Airtex Fuel Pumps (e.g., E3309, E3540) for the same application.

Common Repair Uses

  • Restores diesel fuel delivery when the original external pump is weak or inoperative
  • Addresses hard-start or no-start conditions caused by low fuel pressure
  • Helps correct fuel starvation under load or during acceleration
  • Replaces a worn standard replacement pump on higher-mileage vehicles
  • Supports proper fuel flow in in-line diesel fuel systems

Installation Notes

  • Verify vehicle-specific fitment before ordering; PN1002 is not a universal pump
  • Mount in the in-line position only, as listed for the application
  • Confirm female threaded inlet and outlet connections match the existing fuel line setup
  • Seal and lock ring are included; mounting hardware, strainer, wiring harness, and gasket or seal are not included
  • Check electrical polarity and connector style before installation

Quality Assurance

Sparta fuel system components are distributed through Delphi, an OE full-line fuel supplier, and are selected for fit and performance on earlier-model, higher-mileage vehicles. PN1002 is a specific-fit replacement built to match the listed diesel applications.

BrandSparta
Part NumberPN1002
Fuel Sending Unit IncludedNo
Negative GroundNo
Voltage12.0
Length135.0
Fuel TypeDiesel
Internal Or ExternalExternal
Regulator IncludedNo
Maximum Pressure9.0
Terminal TypePin
Mounting Hardware IncludedNo
Universal Or Specific FitSpecific
Wire Quantity0
Grade TypeStandard replacement
Connector ShapeRound
Gasket Or Seal IncludedNo
Terminal Quantity2
Seal And Lock Ring IncludedYes
Connector GenderFemale
Terminal GenderFemale
Wiring Harness IncludedNo
Strainer IncludedNo
Inlet TypeFemale threaded
Outlet TypeFemale threaded
Outlet Quantity1
Inlet Fitting Thread SizeM16 - 1.5
Minimum Pressure7
Maximum Amperage Draw2.0
Pump DesignSolenoid
Average Current Draw2.0
Average Flow Rating32.0

This part fits 172 vehicles. Search below:

YearMakeModelLitersCylindersPositionNotes
2002ChevroletExpress 25006.5LV8In-Line
2002ChevroletExpress 35006.5LV8In-Line
2002GMCSavana 25006.5LV8In-Line
2002GMCSavana 35006.5LV8In-Line
2001ChevroletExpress 25006.5LV8In-Line
2001ChevroletExpress 35006.5LV8In-Line
2001GMCSavana 25006.5LV8In-Line
2001GMCSavana 35006.5LV8In-Line
2000ChevroletC25006.5LV8In-Line
2000ChevroletC35006.5LV8In-Line
2000ChevroletExpress 25006.5LV8In-Line
2000ChevroletExpress 35006.5LV8In-Line
2000ChevroletK25006.5LV8In-Line
2000ChevroletK35006.5LV8In-Line
2000GMCC25006.5LV8In-Line
2000GMCC35006.5LV8In-Line
2000GMCK25006.5LV8In-Line
2000GMCK35006.5LV8In-Line
2000GMCSavana 25006.5LV8In-Line
2000GMCSavana 35006.5LV8In-Line
1999ChevroletC1500 Suburban6.5LV8In-Line
1999ChevroletC25006.5LV8In-Line
1999ChevroletC2500 Suburban6.5LV8In-Line
1999ChevroletC35006.5LV8In-Line
1999ChevroletExpress 25006.5LV8In-Line
1999ChevroletExpress 35006.5LV8In-Line
1999ChevroletK1500 Suburban6.5LV8In-Line
1999ChevroletK25006.5LV8In-Line
1999ChevroletK2500 Suburban6.5LV8In-Line
1999ChevroletK35006.5LV8In-Line
1999ChevroletP306.5LV8In-Line
1999ChevroletTahoe6.5LV8In-Line
1999GMCC1500 Suburban6.5LV8In-Line
1999GMCC25006.5LV8In-Line
1999GMCC2500 Suburban6.5LV8In-Line
1999GMCC35006.5LV8In-Line
1999GMCK1500 Suburban6.5LV8In-Line
1999GMCK25006.5LV8In-Line
1999GMCK2500 Suburban6.5LV8In-Line
1999GMCK35006.5LV8In-Line
1999GMCP35006.5LV8In-Line
1999GMCSavana 25006.5LV8In-Line
1999GMCSavana 35006.5LV8In-Line
1998ChevroletC15006.5LV8In-Line
1998ChevroletC1500 Suburban6.5LV8In-Line
1998ChevroletC25006.5LV8In-Line
1998ChevroletC2500 Suburban6.5LV8In-Line
1998ChevroletC35006.5LV8In-Line
1998ChevroletExpress 25006.5LV8In-Line
1998ChevroletExpress 35006.5LV8In-Line
1998ChevroletK15006.5LV8In-Line
1998ChevroletK1500 Suburban6.5LV8In-Line
1998ChevroletK25006.5LV8In-Line
1998ChevroletK2500 Suburban6.5LV8In-Line
1998ChevroletK35006.5LV8In-Line
1998ChevroletP306.5LV8In-Line
1998ChevroletTahoe6.5LV8In-Line
1998GMCC1500 Suburban6.5LV8In-Line
1998GMCC25006.5LV8In-Line
1998GMCC2500 Suburban6.5LV8In-Line
1998GMCC35006.5LV8In-Line
1998GMCK15006.5LV8In-Line
1998GMCK1500 Suburban6.5LV8In-Line
1998GMCK25006.5LV8In-Line
1998GMCK2500 Suburban6.5LV8In-Line
1998GMCK35006.5LV8In-Line
1998GMCP35006.5LV8In-Line
1998GMCSavana 2500In-Line
1998GMCSavana 35006.5LV8In-Line
1997ChevroletC15006.5LV8In-Line
1997ChevroletC1500 Suburban6.5LV8In-Line
1997ChevroletC25006.5LV8In-Line
1997ChevroletC2500 Suburban6.5LV8In-Line
1997ChevroletC35006.5LV8In-Line
1997ChevroletExpress 25006.5LV8In-Line
1997ChevroletExpress 35006.5LV8In-Line
1997ChevroletK15006.5LV8In-Line
1997ChevroletK1500 Suburban6.5LV8In-Line
1997ChevroletK25006.5LV8In-Line
1997ChevroletK2500 Suburban6.5LV8In-Line
1997ChevroletK35006.5LV8In-Line
1997ChevroletP306.5LV8In-Line
1997ChevroletTahoe6.5LV8In-Line
1997GMCC15006.5LV8In-Line
1997GMCC1500 Suburban6.5LV8In-Line
1997GMCC25006.5LV8In-Line
1997GMCC2500 Suburban6.5LV8In-Line
1997GMCC35006.5LV8In-Line
1997GMCK15006.5LV8In-Line
1997GMCK1500 Suburban6.5LV8In-Line
1997GMCK25006.5LV8In-Line
1997GMCK2500 Suburban6.5LV8In-Line
1997GMCK35006.5LV8In-Line
1997GMCP35006.5LV8In-Line
1997GMCSavana 2500In-Line
1997GMCSavana 35006.5LV8In-Line
1997GMCYukon6.5LV8In-Line
1996ChevroletC15006.5LV8In-Line
1996ChevroletC1500 Suburban6.5LV8In-Line
1996ChevroletC25006.5LV8In-Line
1996ChevroletC2500 Suburban6.5LV8In-Line
1996ChevroletC35006.5LV8In-Line
1996ChevroletExpress 25006.5LV8In-Line
1996ChevroletExpress 35006.5LV8In-Line
1996ChevroletK15006.5LV8In-Line
1996ChevroletK1500 Suburban6.5LV8In-Line
1996ChevroletK25006.5LV8In-Line
1996ChevroletK2500 Suburban6.5LV8In-Line
1996ChevroletK35006.5LV8In-Line
1996ChevroletP306.5LV8In-Line
1996ChevroletTahoe6.5LV8In-Line
1996GMCC15006.5LV8In-Line
1996GMCC1500 Suburban6.5LV8In-Line
1996GMCC25006.5LV8In-Line
1996GMCC2500 Suburban6.5LV8In-Line
1996GMCC35006.5LV8In-Line
1996GMCK15006.5LV8In-Line
1996GMCK1500 Suburban6.5LV8In-Line
1996GMCK25006.5LV8In-Line
1996GMCK2500 Suburban6.5LV8In-Line
1996GMCK35006.5LV8In-Line
1996GMCP35006.5LV8In-Line
1996GMCSavana 2500In-Line
1996GMCSavana 35006.5LV8In-Line
1996GMCYukon6.5LV8In-Line
1995ChevroletC15006.5LV8In-Line
1995ChevroletC1500 Suburban6.5LV8In-Line
1995ChevroletC25006.5LV8In-Line
1995ChevroletC2500 Suburban6.5LV8In-Line
1995ChevroletC35006.5LV8In-Line
1995ChevroletG306.5LV8In-Line
1995ChevroletK15006.5LV8In-Line
1995ChevroletK1500 Suburban6.5LV8In-Line
1995ChevroletK25006.5LV8In-Line
1995ChevroletK2500 Suburban6.5LV8In-Line
1995ChevroletK35006.5LV8In-Line
1995ChevroletP306.5LV8In-Line
1995ChevroletTahoe6.5LV8In-Line
1995GMCC15006.5LV8In-Line
1995GMCC1500 Suburban6.5LV8In-Line
1995GMCC25006.5LV8In-Line
1995GMCC2500 Suburban6.5LV8In-Line
1995GMCC35006.5LV8In-Line
1995GMCG25006.5LV8In-Line
1995GMCG35006.5LV8In-Line
1995GMCK15006.5LV8In-Line
1995GMCK1500 Suburban6.5LV8In-Line
1995GMCK25006.5LV8In-Line
1995GMCK2500 Suburban6.5LV8In-Line
1995GMCK35006.5LV8In-Line
1995GMCP35006.5LV8In-Line
1995GMCYukon6.5LV8In-Line
1994ChevroletBlazer6.5LV8In-Line
1994ChevroletC15006.5LV8In-Line
1994ChevroletC25006.5LV8In-Line
1994ChevroletC2500 Suburban6.5LV8In-Line
1994ChevroletC35006.5LV8In-Line
1994ChevroletK15006.5LV8In-Line
1994ChevroletK25006.5LV8In-Line
1994ChevroletK2500 Suburban6.5LV8In-Line
1994ChevroletK35006.5LV8In-Line
1994ChevroletP306.5LV8In-Line
1994GMCC15006.5LV8In-Line
1994GMCC25006.5LV8In-Line
1994GMCC2500 Suburban6.5LV8In-Line
1994GMCC35006.5LV8In-Line
1994GMCK15006.5LV8In-Line
1994GMCK25006.5LV8In-Line
1994GMCK2500 Suburban6.5LV8In-Line
1994GMCK35006.5LV8In-Line
1994GMCP35006.5LV8In-Line
1994GMCYukon6.5LV8In-Line

* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.

This part directly replaces or is cross-referenced with the following part numbers:

15018546157542982511734040202176010682644343969232951-5017AFS0407PB0073EE16026E16081E219660E2496039E3309E3540E8413EFP309EP1000EP309EP7288F2310P74143P74222SP1127SP1133USEP3309

Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
