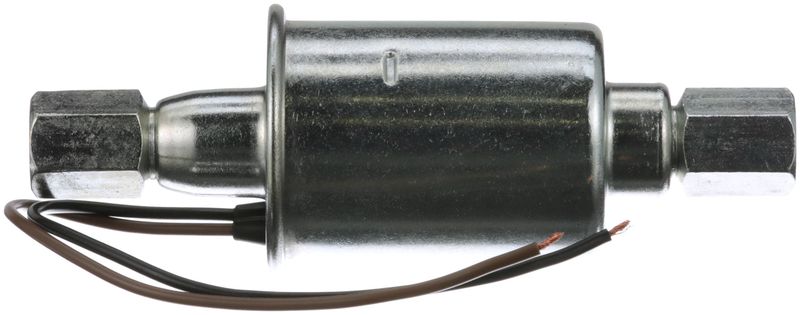

Sparta PN1005 Electric Fuel Pump - In-Line
| Brand | Sparta PN1005 |
|---|---|
| Position | In-Line |
| Fuel Sending Unit Included | No |
| Negative Ground | No |
| Inlet Outside Diameter | 0.500 |
| Outlet Outside Diameter | 0.500 |
| Voltage | 12.0 |
| Length | 150.0 |
| Fuel Type | Diesel |
| Internal Or External | External |
| Regulator Included | No |
| Maximum Pressure | 12.0 |
| Terminal Type | Lead wire |
| Mounting Hardware Included | Yes |
| Universal Or Specific Fit | Specific |
| Wire Quantity | 0 |
| Grade Type | Standard replacement |
| Connector Shape | Wire |
| Gasket Or Seal Included | No |
| Terminal Quantity | 2 |
| Seal And Lock Ring Included | No |
| Connector Gender | Male |
| Terminal Gender | Male |
| Wiring Harness Included | No |
| Strainer Included | No |
| Inlet Type | Female threaded |
| Outlet Type | Female threaded |
| Outlet Quantity | 1 |
| Minimum Pressure | 8 |
| Maximum Amperage Draw | 4.0 |
| Pump Design | Solenoid |
| Average Current Draw | 4.0 |
| Fits | Lincoln · 4 vehicles |
OE supplier pedigree. Backed by Delphi, the OE fuel experts.
Specific-fit replacement. Built for a direct, in-line install.
Diesel solenoid design. Delivers 8-12 psi with 32 GPH flow.
Cross-references Airtex Fuel Pumps E2324, Carter P74017 and B0150E for the same application. See all 11.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Electric Fuel Pump for Diesel Applications
Sparta PN1005 is a specific-fit external electric fuel pump for diesel systems, built for 12-volt operation and in-line mounting. It is listed for 1984-1985 Lincoln Continental and 1984-1985 Lincoln Mark VII, making it a direct-fit option for those vehicle applications.
Backed by Delphi distribution and OE-focused fuel system expertise, this pump is positioned as a standard replacement for higher-mileage and earlier model vehicles. Sparta PN1005 uses a solenoid pump design with female threaded inlet and outlet connections, lead wire terminals, and a 32.0 average flow rating.
Key Features
- Part number: PN1005
- Electric fuel pump for diesel fuel systems
- External, in-line installation
- 12.0-volt operation
- Maximum pressure: 12.0
- Minimum pressure: 8
- Average flow rating: 32.0
- Solenoid pump design
- Female threaded inlet and outlet
- Lead wire terminal type with 2 terminals
- Mounting hardware included
- Specific fit for select Lincoln applications
Detailed Description
Sparta PN1005 is an electric diesel fuel pump engineered for external, in-line placement and standard replacement use. It features a 0.500-inch inlet and outlet outside diameter, female threaded inlet and outlet ports, and a lead wire connection style with male terminals. The pump is designed for 12-volt systems and draws an average of 4.0 amps, with a maximum amperage draw of 4.0.
Compatible With 1984-1985 Lincoln Continental, In-Line, and 1984-1985 Lincoln Mark VII, In-Line, this pump is a practical choice when replacing a worn diesel fuel pump on those vehicles. Sparta PN1005 is also cross-referenced to Airtex Fuel Pumps E2324 for the same application.
Common Problems This Part Can Address
- Hard starting caused by weak diesel fuel delivery
- Low fuel pressure in an external in-line pump circuit
- Intermittent fuel supply from a failing electric pump
- Reduced engine performance from inconsistent fuel flow
- Noise or irregular operation from an aging replacement pump
Installation Notes and Tips
Install Sparta PN1005 in the in-line position only and verify diesel fuel system routing before replacement. Confirm the vehicle uses a 12-volt electrical system and match the female threaded inlet and outlet connections to the existing plumbing. The package includes the pump, bracket, hose clamps, nut/bolt, rubber hoses, splices, terminal hardware, washers, and an instruction sheet.
Before installation, inspect the fuel lines, electrical leads, and mounting location for wear or corrosion. For 1984-1985 Lincoln Continental and 1984-1985 Lincoln Mark VII applications, verify the original pump configuration and connection style against the vehicle service information.
Quality Assurance
Sparta is distributed by Delphi, an OE full-line fuel supplier with fuel system expertise focused on fit and performance. PN1005 is built as a standard replacement part for earlier model, higher-mileage diesel applications.
| Year | Make | Model | Liters | Cylinders | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|---|
| 1985 | Lincoln | Continental | 2.4L | L6 | DIESEL | In-Line | — |
| 1985 | Lincoln | Mark VII | 2.4L | L6 | DIESEL | In-Line | — |
| 1984 | Lincoln | Continental | 2.4L | L6 | DIESEL | In-Line | — |
| 1984 | Lincoln | Mark VII | 2.4L | L6 | DIESEL | In-Line | — |
