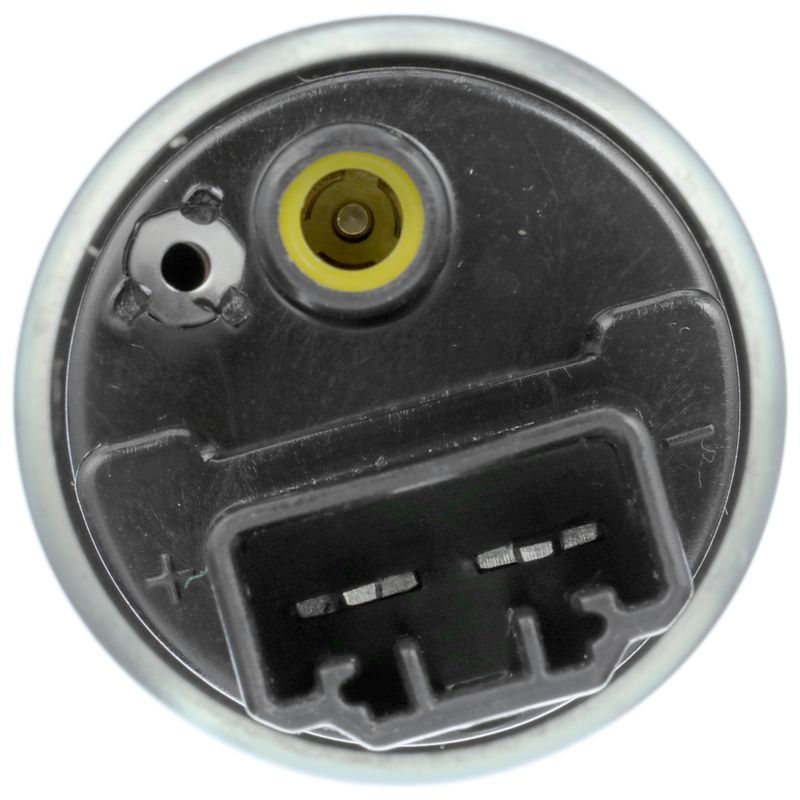

Sparta PN2019 Electric Fuel Pump - In-Tank

Electric Fuel Pump for Toyota and Lexus Applications

The Sparta PN2019 electric fuel pump is a specific-fit, in-tank replacement for select Toyota and Lexus vehicles. Built as a standard replacement for gas applications, it uses a turbine pump design with a 12V electrical setup and a 2-terminal blade connection for straightforward integration.

Backed by Delphi distribution and OE-focused fuel system expertise, this pump is aimed at higher-mileage and earlier model vehicles that need consistent fuel delivery. It is a direct option for Toyota Camry, Avalon, Sienna, Solara, Tundra, and Lexus ES300, ES330, and ES350 applications.

Key Features

• Part number: PN2019
• In-tank electric fuel pump for gasoline systems
• Specific fit for select Toyota and Lexus vehicles
• Turbine pump design for steady fuel delivery
• 12.0-volt operation with 2 blade terminals
• Average flow rating: 34.0
• Operating current draw: 4.0 amps average, 4.0 amps maximum
• Maximum pressure: 131.0
• Minimum pressure: 44
• Mounting hardware included
• Package contents: electric fuel pump, (3) caps, (2) hose clamps, hose piece, pall nut, (2) restrictors, seal, instruction sheet

Detailed Description

Sparta PN2019 is an internal, in-tank fuel pump designed for gasoline fuel systems that require a specific replacement profile. The pump uses a turbine-style design, a rectangular female connector, and male blade terminals with no wiring harness, regulator, strainer, gasket, or lock ring included. Its outlet is hose-style with a 0.375 in. / 9.5 mm outside diameter, and the inlet outside diameter measures 11.0.

This part cross-references Bosch 69752 and Carter P90007 for the same application. It is listed for 2007-2012 Lexus ES350, 2000-2012 Toyota Avalon, 2003-2011 Toyota Camry, 2004-2008 Toyota Solara, 2004-2006 Lexus ES330, 2000-2004 Toyota Tundra, 1999-2003 Lexus ES300, and 2001-2003 Toyota Sienna. Searchers looking for a Toyota Camry fuel pump, Lexus ES350 in-tank fuel pump, or Toyota Avalon electric fuel pump PN2019 will find this part matches those confirmed applications.

What It Helps Address

• Hard starting caused by weak fuel delivery
• Engine hesitation under load from low fuel pressure
• Stalling related to an aging in-tank pump
• Fuel starvation symptoms in higher-mileage Toyota and Lexus vehicles
• Restoration of proper pump output on gas-powered applications

Installation Notes and Tips

Install this pump in the tank only on the confirmed vehicle applications listed above. Verify connector style, terminal count, outlet size, and fuel system layout before installation. Because the pump is supplied without a strainer, gasket, seal, or lock ring, reuse or source the required service parts as needed for the vehicle. Follow the included instruction sheet and confirm electrical polarity and fuel line routing before reassembly.

Quality Assurance

Sparta is distributed by Delphi, an OE full-line fuel supplier with fuel system expertise focused on fit and performance. PN2019 is built as a standard replacement fuel pump for confirmed Toyota and Lexus applications, including Camry, Avalon, and ES-series models.
