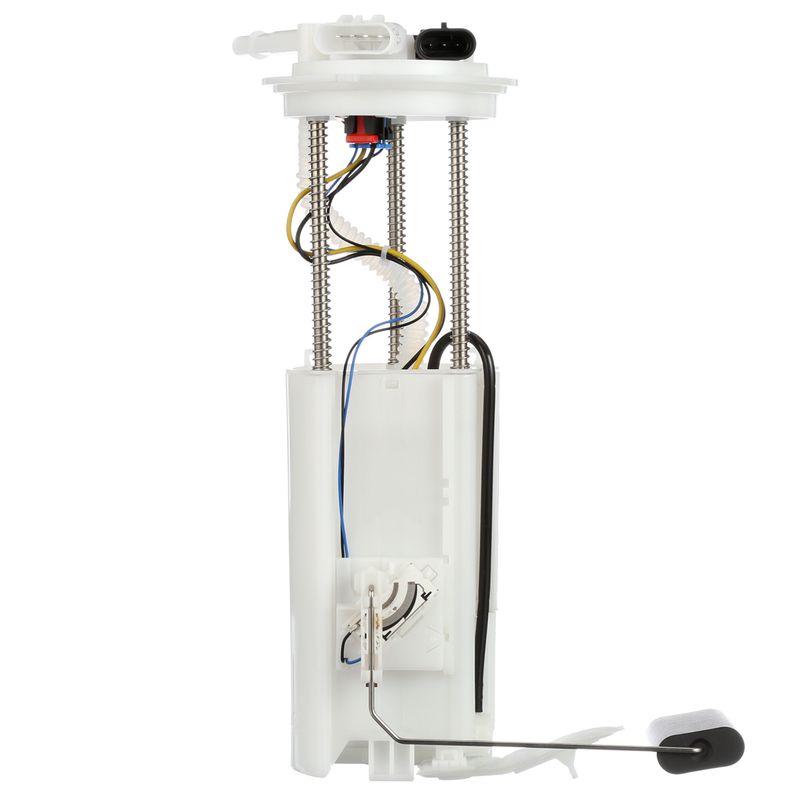

Sparta PN3003 Fuel Pump Module Assembly

Fuel Pump Module Assembly for GM Applications

Sparta PN3003 is a specific-fit in-tank fuel pump module assembly for select 1997-1998 Chevrolet Blazer, GMC Jimmy, and Oldsmobile Bravada models. Built as a standard replacement, it includes the fuel sending unit, strainer, gasket/seal, wire harness, and float arm for a complete service-focused repair.

Key Features

• Specific-fit fuel pump module assembly for gas applications
• In-tank electric turbine pump design
• Fuel sending unit included for accurate fuel level reporting
• Fuel tank pressure sensor included
• Strainer and nitrile rubber gasket/seal included
• Quick-connect outlet with 3 outlets and 0.375 in. outside diameter
• 13V operation, 4-wire harness, blade terminals, and oval female connector
• Standard replacement grade for select GM SUVs
• Average flow rating of 24 and maximum pressure of 109

Detailed Description

Sparta PN3003 is engineered for higher-mileage and earlier-model vehicles, with OE-focused fit and performance guidance from Delphi, the OE fuel supplier behind the brand. This fuel pump module assembly is designed for direct replacement service on 1997-1998 Chevrolet Blazer, 1997-1998 GMC Jimmy, and 1997-1998 Oldsmobile Bravada models. It is an in-tank electric module with a turbine pump, external strainer, fuel sending unit, and fuel tank pressure sensor, making it a practical choice when restoring fuel delivery and fuel level signal accuracy. This part cross-references Airtex Fuel Pumps E3953M and Carter P74789M for the same application. PN3003 is a direct-fit option for drivers searching for a fuel pump module assembly for 1997-1998 Chevrolet Blazer, GMC Jimmy, or Oldsmobile Bravada.

Common Repair Uses

• Hard starting caused by weak fuel delivery
• Engine stalling from inconsistent pump output
• Incorrect fuel gauge readings from a worn sending unit
• Fuel pressure loss in an aging in-tank module
• Fuel system service on high-mileage GM SUVs

Installation Notes and Tips

Confirm vehicle fitment by year, make, and model before installation. This module uses a quick-connect outlet, female connector, and 4-wire configuration, so matching the existing electrical and fuel line connections is important. The package includes the fuel pump module assembly with float arm, seal, splices, wire harness, and instruction sheet; mounting hardware and lock ring are not included. Replace the tank seal during service and inspect the fuel lines, connector, and tank opening for wear before reassembly.

Quality Assurance

Sparta is distributed by Delphi, an OE full-line fuel supplier, and is positioned for vehicles that need dependable replacement fuel system components with OE-informed fitment and performance standards.
