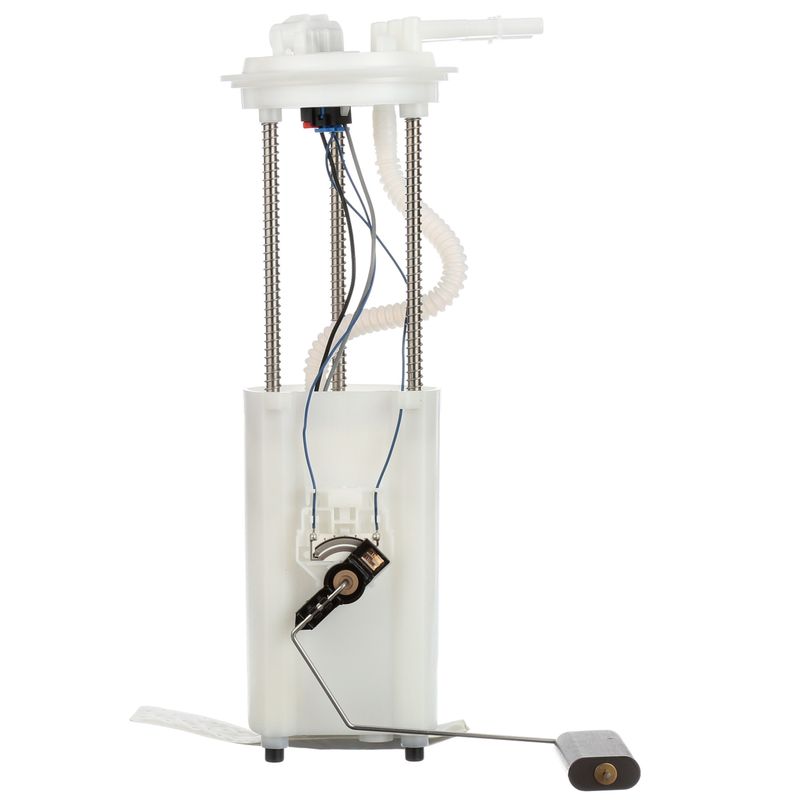

Sparta PN3008 Fuel Pump Module Assembly

Fuel Pump Module Assembly for GM Vans

Sparta PN3008 is a specific-fit fuel pump module assembly for select Chevrolet Express and GMC Savana vans. It is built as a standard replacement for in-tank gasoline applications and includes the fuel sending unit, strainer, gasket/seal, and wire harness for a complete service replacement.

Key Features

• Specific-fit fuel pump module assembly for select GM full-size vans
• In-tank electric turbine pump design for gasoline fuel systems
• Includes fuel sending unit, float arm, seal, splices, wire harness, and instruction sheet
• Quick-connect outlet with 2 outlets and 0.375 in. outside diameter
• 13-volt operation with 62 to 109 psi pressure range
• External strainer included; fuel filter and regulator not included
• Plastic housing with nitrile rubber gasket/seal material
• 4-wire, 4-terminal blade connection with oval female connector

Detailed Description

Sparta PN3008 is engineered for higher-mileage and earlier-model vehicles and is distributed by Delphi, an OE fuel system supplier. This fuel pump module assembly is a direct replacement for gasoline-powered, in-tank applications and is designed to restore fuel delivery and fuel level reporting in one service part. It is a practical choice for Chevrolet Express 1500, Express 2500, Express 3500, GMC Savana 1500, Savana 2500, and Savana 3500 applications covered by the listed fitment.

This part cross-references Airtex E3966M and Bosch 67302 for the same application. PN3008 is a fuel pump module assembly with a turbine-style electric pump, average flow rating of 32, and average current draw of 10 amps.

What It Helps Fix

• Hard starting caused by weak or failing fuel delivery
• Engine stalling from inconsistent pump output
• Fuel gauge errors from a worn sending unit
• Low fuel pressure conditions within the specified range
• Fuel system service needs on in-tank GM van applications

Installation Notes and Tips

Verify the vehicle’s year, make, and model against the listed fitment before installation. This module uses a specific-fit design, an oval female connector, blade terminals, and quick-connect outlets, so connector and line matching should be confirmed during service. The package includes the module assembly, float arm, seal, splices, wire harness, and instruction sheet; mounting hardware and lock ring are not included.

Fits 1997-2002 Chevrolet Express 1500, N/A; Fits 1997-2002 Chevrolet Express 2500, N/A; Fits 1997-2002 Chevrolet Express 3500, N/A; Fits 1997-2002 GMC Savana 2500, N/A; Fits 1997-2002 GMC Savana 3500, N/A; Fits 1997 GMC Savana 1500, N/A.

Quality Assurance

Sparta fuel system parts are backed by Delphi distribution and OE-focused engineering knowledge for fit and performance on higher-mileage and earlier-model vehicles. PN3008 is a standard replacement fuel pump module assembly built for direct-fit service on the listed GM van applications.
