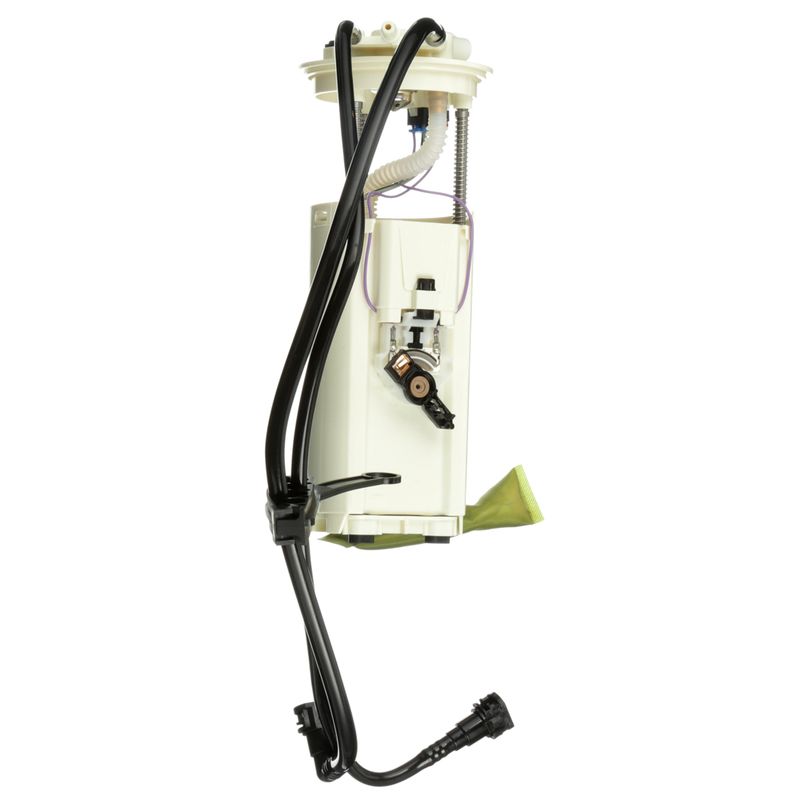

Sparta PN3011 Fuel Pump Module Assembly

Sparta PN3011 Fuel Pump Module Assembly

Sparta PN3011 is a specific-fit in-tank fuel pump module assembly for select GM compact and midsize vehicles. It includes the fuel sending unit, strainer, gasket/seal, wire harness, and float arm for a direct replacement on the listed applications.

Key Features

• Specific-fit fuel pump module assembly for gas applications
• In-tank electric turbine pump design
• 13-volt operation with 4-wire, 1-connector blade terminal setup
• Maximum pressure rating: 109 psi; minimum pressure: 44 psi
• Average flow rating: 35 and average current draw: 9
• Fuel sending unit included with resistance range of 40 ohms empty to 250 ohms full
• Fuel tank pressure sensor included
• Female quick-connect outlet with 3 outlets and 0.375 in. outside diameter
• Plastic housing with nitrile rubber gasket/seal
• Package contents: fuel pump module assembly w/float arm, seal, splices, wire harness, instruction sheet

Detailed Description

Built for higher-mileage and earlier model vehicles, Sparta PN3011 is distributed through Delphi, an OE fuel system supplier with deep application knowledge. This fuel pump module assembly is engineered as a standard replacement for gas-powered vehicles that need a complete in-tank fuel delivery service part, including the pump, sender, strainer, seal, and harness components. This part cross-references Airtex Fuel Pumps E3950M and Carter P74781M for the same application.

Compatible With 1998-1999 Chevrolet Malibu, 1999-2000 Chevrolet Cavalier, 1998-1999 Oldsmobile Cutlass, 1999 Oldsmobile Alero, 1999 Pontiac Grand Am, and 1999-2000 Pontiac Sunfire. Use Sparta PN3011 when replacing a worn fuel pump module on these vehicles and when the fuel level signal, pressure delivery, or in-tank pump operation needs to be restored.

Common Issues This Part Can Address

• Hard starting caused by weak or failing fuel pressure
• Engine stalling from inconsistent fuel delivery
• Inaccurate fuel level readings from a worn sending unit
• Fuel pump noise or intermittent pump operation
• Loss of power under load due to insufficient fuel flow

Installation Notes and Tips

Install this module in the fuel tank using the correct vehicle-specific procedure and verify connector, outlet, and sender alignment before final assembly. Replace the tank seal during service, confirm the electrical connections are secure, and check fuel pressure and gauge operation after installation. Because mounting hardware and lock ring are not included, reuse or source the required vehicle-specific hardware as needed.

Quality Assurance

Sparta is backed by Delphi distribution and OE fuel system expertise, with a focus on fit and performance for earlier model applications. PN3011 is a standard replacement fuel pump module assembly built to match the listed vehicle requirements and fuel system specifications.
