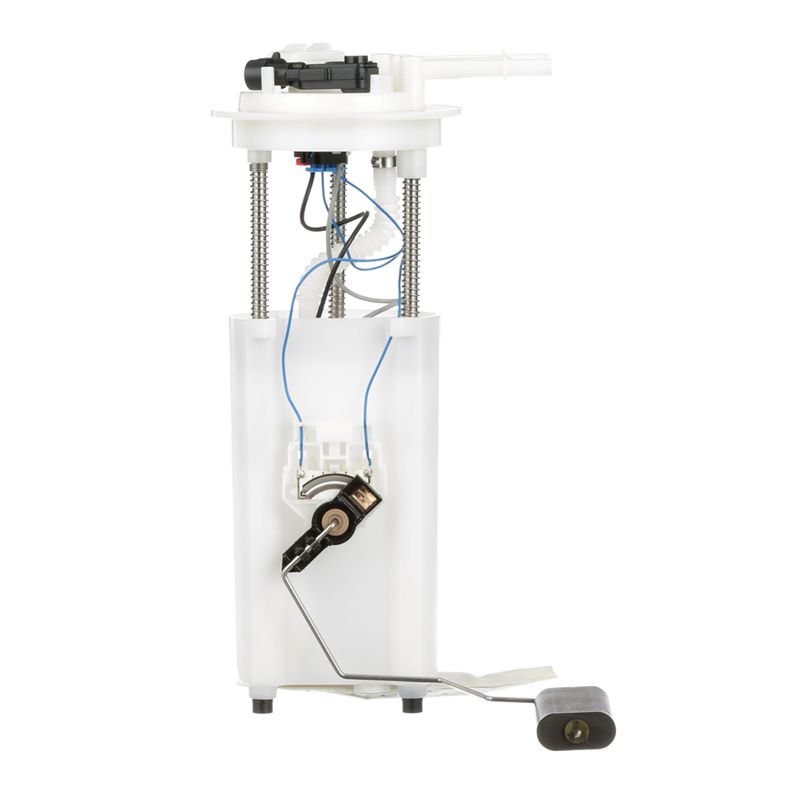

Sparta PN3013 Fuel Pump Module Assembly
| Brand | Sparta PN3013 |
|---|---|
| Fuel Sending Unit Included | Yes |
| Negative Ground | No |
| Outlet Outside Diameter | 0.375 |
| Voltage | 13 |
| Fuel Type | Gas |
| Regulator Included | No |
| Maximum Pressure | 109 |
| Terminal Type | Blade |
| Mounting Hardware Included | No |
| Universal Or Specific Fit | Specific |
| Wire Quantity | 4 |
| Grade Type | Standard replacement |
| Connector Quantity | 1 |
| Connector Shape | Oval |
| Gasket Or Seal Included | Yes |
| Housing Material | Plastic |
| Installation Warnings | No |
| Terminal Quantity | 4 |
| Lock Ring Included | No |
| Connector Gender | Female |
| Terminal Gender | Male |
| Strainer Included | Yes |
| Inlet Type | Strainer |
| Outlet Type | Quick connect |
| Outlet Quantity | 2 |
| Fuel Filter Included | No |
| In Tank or External | In tank |
| Resistance Ohms Empty | 40 |
| Resistance Ohms Full | 250 |
| Gasket Or Seal Material | Nitrile rubber |
| Fits | Oldsmobile and Pontiac · 8 vehicles |
OE supplier pedigree. Backed by Delphi fuel-system expertise for fit and performance confidence.
Specific-fit module. Built as a direct replacement for a precise, vehicle-matched install.
Complete module assembly. Includes the pump, sending unit, seal, strainer, and harness.
Cross-references Airtex Fuel Pumps E3372M, Autobest F2383A and Bosch 67303 for the same application. See all 34.
Fuel Pump Module Assembly for OE-Style Replacement
The Sparta PN3013 fuel pump module assembly is a specific-fit, in-tank replacement for select Oldsmobile, Pontiac, and related applications. Built for gas-powered vehicles, it combines the pump, sending unit, seal, strainer, and harness components needed for a complete fuel delivery service on higher-mileage and earlier model vehicles.
- Specific-fit fuel pump module assembly for direct replacement service
- In-tank electric turbine pump design
- Fuel sending unit included
- Fuel tank pressure sensor included
- Wire harness included with 4-wire, 1-connector oval female interface
- Strainer included; external strainer style
- Gasket/seal included with nitrile rubber material
- Standard replacement grade for gas fuel systems
- Maximum pressure: 109 psi; minimum pressure: 52 psi
- Average flow rating: 23 and average current draw: 7
Application Details and Fitment
Compatible with 1998 Pontiac Trans Sport, 1998-2001 Oldsmobile Silhouette, and 1999-2001 Pontiac Montana. This Sparta fuel pump module assembly PN3013 is built for in-tank installation and uses a quick-connect outlet with two outlet ports and a 0.375-inch outside diameter.
Sparta, distributed by Delphi, is positioned for earlier model and higher-mileage vehicles where OE-style fit and fuel delivery performance matter. The module uses a plastic housing, blade terminals, and a turbine pump design to support consistent fuel supply in gas applications. This part cross-references Airtex Fuel Pumps E3372M and Bosch 67303 for the same application.
Common Fuel System Issues It Can Address
- Hard starting caused by weak or inconsistent fuel pressure
- Engine stalling from fuel delivery interruption
- Fuel gauge inaccuracies related to a failing sending unit
- Low fuel pressure under load
- Noise or wear from an aging in-tank pump module
Installation Notes and Tips
Install this module in the fuel tank using the included seal and wire harness. Verify connector shape, terminal count, outlet style, and pressure requirements before installation. Because mounting hardware and lock ring are not included, reuse or source the required tank-side components as needed. Confirm vehicle-specific fitment for the exact Oldsmobile Silhouette, Pontiac Montana, or Pontiac Trans Sport application before service.
Quality Assurance
Sparta fuel system components are distributed by Delphi, an OE full-line fuel supplier, and are selected for fit and performance on earlier model vehicles. PN3013 is a standard replacement fuel pump module assembly built to OE-style specifications for the listed applications.
| Year | Make | Model | Liters | Cylinders | Wheel Base | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2001 | Oldsmobile | Silhouette | 3.4L | V6 | — | N/A | — |
| 2001 | Pontiac | Montana | 3.4L | V6 | 120.0" | N/A | — |
| 2000 | Oldsmobile | Silhouette | 3.4L | V6 | — | N/A | — |
| 2000 | Pontiac | Montana | 3.4L | V6 | — | N/A | — |
| 1999 | Oldsmobile | Silhouette | 3.4L | V6 | — | N/A | — |
| 1999 | Pontiac | Montana | 3.4L | V6 | — | N/A | — |
| 1998 | Oldsmobile | Silhouette | 3.4L | V6 | — | N/A | — |
| 1998 | Pontiac | Trans Sport | 3.4L | V6 | — | N/A | — |
