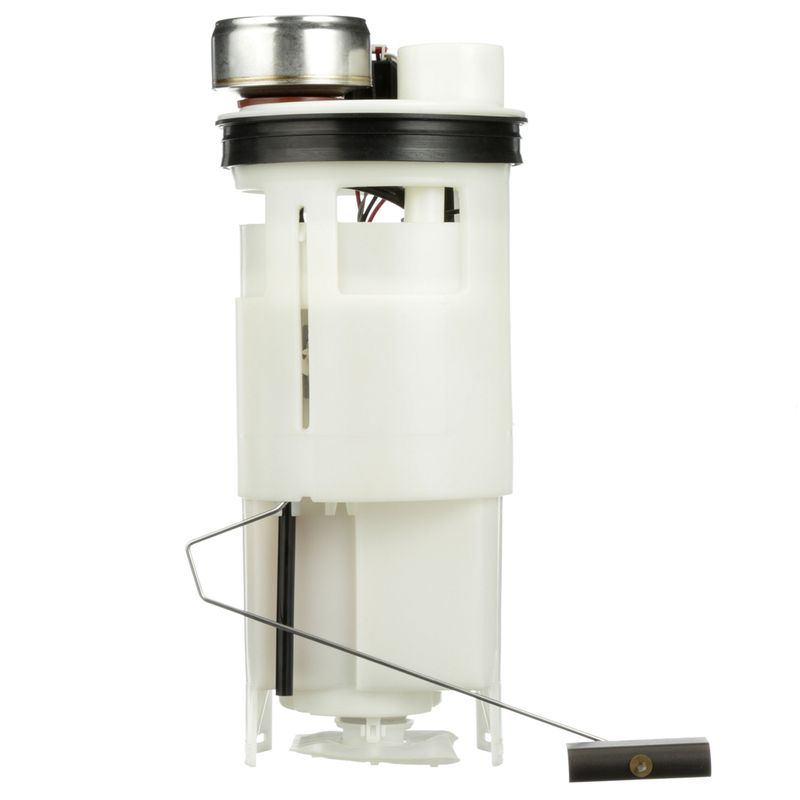

Sparta PN3017 Fuel Pump Module Assembly
| Brand | Sparta PN3017 |
|---|---|
| Fuel Sending Unit Included | Yes |
| Negative Ground | No |
| Outlet Outside Diameter | 0.375 |
| Voltage | 12 |
| Fuel Type | Gas |
| Regulator Included | Yes |
| Maximum Pressure | 80 |
| Terminal Type | Blade |
| Mounting Hardware Included | No |
| Universal Or Specific Fit | Specific |
| Wire Quantity | 4 |
| Grade Type | Standard replacement |
| Connector Quantity | 1 |
| Connector Shape | Rectangle |
| Gasket Or Seal Included | Yes |
| Housing Material | Plastic |
| Installation Warnings | No |
| Terminal Quantity | 4 |
| Lock Ring Included | No |
| Connector Gender | Female |
| Terminal Gender | Male |
| Strainer Included | Yes |
| Inlet Type | Strainer |
| Outlet Type | Quick connect |
| Outlet Quantity | 2 |
| Fuel Filter Included | Yes |
| In Tank or External | In tank |
| Resistance Ohms Empty | 113 |
| Resistance Ohms Full | 3 |
| Gasket Or Seal Material | Nitrile rubber |
| Fits | Dodge · 6 vehicles |
OE-supplier backed. Distributed by Delphi, the OE fuel expert.
Specific fit. Built as a direct replacement for the listed application.
Complete module assembly. Includes pump, sender, regulator, strainer, filter, and harness.
Cross-references Airtex Fuel Pumps E7093M, Airtex Fuel Pumps E7104M and Autobest F3004A for the same application. See all 33.
Fuel Pump Module for Ram 1500, 2500, 3500
Sparta PN3017 is a specific-fit in-tank fuel pump module assembly for select 1996-1997 Dodge Ram 1500, Ram 2500, and Ram 3500 applications. Built as a standard replacement for higher-mileage and earlier-model vehicles, it combines the pump, sending unit, regulator, strainer, fuel filter, gasket, and wire harness in one service assembly.
- Specific-fit fuel pump module assembly for gas applications
- In-tank electric turbine pump design
- 12-volt system with 4-wire, 1-connector configuration
- Fuel sending unit included for accurate fuel level reporting
- Regulator, strainer, fuel filter, gasket/seal, and wire harness included
- Quick-connect outlet with 2 outlets and 0.375 in. outlet outside diameter
- Standard replacement grade for select Dodge Ram trucks
Detailed Product Overview
Sparta PN3017 is engineered for select Dodge Ram truck fuel systems that require an in-tank module assembly. It uses an electric turbine pump with an average flow rating of 55 and a pressure range of 44 to 80, making it a direct service solution for fuel delivery and tank-level monitoring. The module includes a plastic housing, blade terminals, female connector, and a nitrile rubber gasket/seal for a complete replacement-style installation. This part cross-references Airtex Fuel Pumps E7093M and Carter P74699R for the same application.
Sparta, distributed by Delphi, is positioned for earlier model and higher-mileage vehicles where OE-style fit and performance matter. For buyers searching for a fuel pump module assembly for 1996-1997 Dodge Ram 1500, 2500, or 3500, PN3017 provides the key components needed to restore fuel delivery and sender function in one assembly.
Common Problems This Part Can Address
- Hard starting caused by weak fuel pressure
- Engine stalling from inconsistent fuel delivery
- Incorrect fuel gauge readings from a worn sending unit
- Fuel starvation under load from a failing in-tank pump
- Driveability issues related to a restricted or aging fuel module
Installation Notes and Tips
Verify tank access, connector style, and outlet configuration before installation. Replace the module only after confirming the tank is clean and free of debris, and inspect the electrical connector and fuel lines for wear. This assembly includes the gasket/seal, strainer, fuel filter, and wire harness; mounting hardware and lock ring are not included. Follow the vehicle service procedure for safe fuel system depressurization and proper sealing.
Quality Assurance
Sparta fuel system parts are backed by Delphi distribution and OE-focused engineering knowledge. PN3017 is built as a standard replacement module for specific Dodge Ram truck applications, with fitment and performance considerations aligned to the original fuel system design.
| Year | Make | Model | Liters | Cylinders | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|---|
| 1997 | Dodge | Ram 1500 | 5.9L | V8 | GAS | N/A | — |
| 1997 | Dodge | Ram 2500 | 8.0L | V10 | GAS | N/A | — |
| 1997 | Dodge | Ram 3500 | 8.0L | V10 | GAS | N/A | — |
| 1996 | Dodge | Ram 1500 | 5.9L | V8 | GAS | N/A | — |
| 1996 | Dodge | Ram 2500 | 8.0L | V10 | GAS | N/A | — |
| 1996 | Dodge | Ram 3500 | 8.0L | V10 | GAS | N/A | — |
