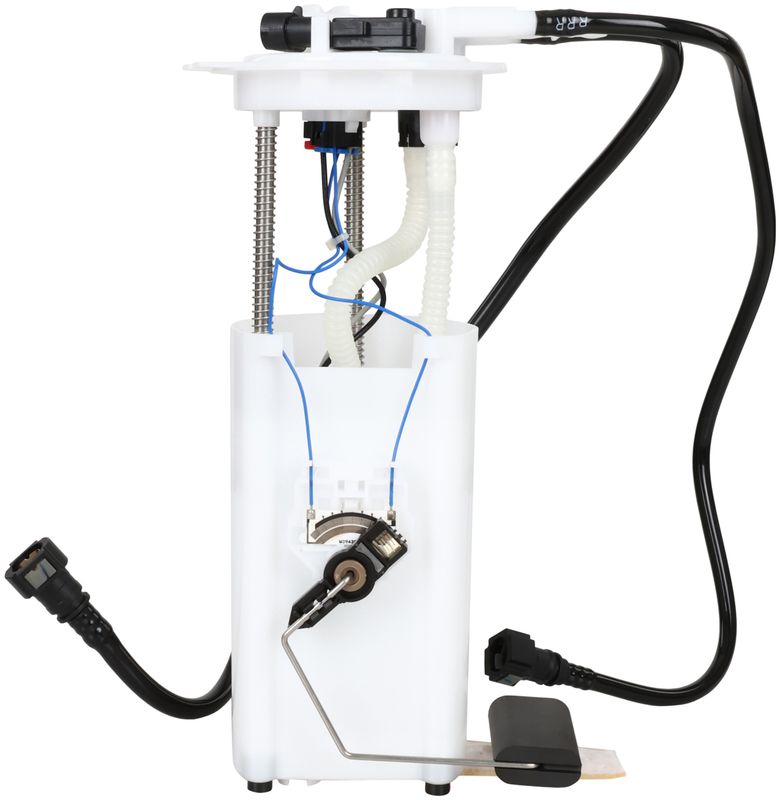

Sparta PN3029 Fuel Pump Module Assembly

Fuel Pump Module Assembly for GM Compact Cars

Sparta PN3029 is a standard replacement fuel pump module assembly for select Chevrolet, Pontiac, and Oldsmobile applications. It is built for in-tank gasoline systems and includes the fuel sending unit, seal, lock ring, strainer, float arm, and wire harness for a complete service replacement.

Compatible with 2000-2005 Chevrolet Cavalier, 2004-2005 Chevrolet Classic, 2000-2005 Pontiac Grand Am, 2000-2005 Pontiac Sunfire, 2000-2004 Oldsmobile Alero, and 2000-2003 Chevrolet Malibu, PN3029 is a direct-fit solution for vehicles using a specific-fit, 12-volt electric turbine pump design.

Key Features

• Part number: PN3029
• Fuel pump module assembly for gasoline applications
• In-tank electric turbine pump design
• Includes fuel sending unit, strainer, seal, lock ring, float arm, and wire harness
• Specific fit for select Chevrolet, Pontiac, and Oldsmobile models
• Female quick-connect outlet with 3 outlets
• 12-volt system with 4-wire, 4-terminal blade connection
• Average flow rating: 21
• Maximum pressure: 101; minimum pressure: 59
• Fuel tank pressure sensor included

Detailed Description

Sparta PN3029 is distributed by Delphi, an OE fuel system supplier, and is aimed at higher-mileage and earlier-model vehicles that need a direct replacement fuel pump module. The assembly uses a plastic housing, nitrile rubber seal material, and an internal strainer setup for in-tank service. It is configured for gasoline fuel systems and includes the sender unit for accurate fuel level reporting.

This fuel pump module assembly cross-references Bosch 67475 and Carter P74831M for the same application. For shoppers searching for a fuel pump module assembly for 2000-2005 Chevrolet Cavalier, 2000-2005 Pontiac Sunfire, or 2000-2004 Oldsmobile Alero, PN3029 provides the correct fitment profile and connector style.

Common Problems It Can Address

• Hard starting caused by a weak or failing in-tank fuel pump
• Fuel gauge inaccuracies from a worn sending unit
• Low fuel pressure that affects drivability and acceleration
• Intermittent stalling related to inconsistent fuel delivery
• Poor fuel pump electrical connection from a damaged module harness

Installation Notes and Tips

• Confirm vehicle fitment by year, make, and model before installation.
• Replace the seal and lock ring during service; both are included.
• Verify the 4-wire connector, blade terminals, and female quick-connect outlet match the original setup.
• Inspect the fuel tank for contamination before installing the new module.
• Follow the vehicle service manual for depressurizing the fuel system and safe tank removal procedures.

Quality Assurance

Sparta fuel system components are backed by Delphi distribution and OE-focused engineering knowledge. PN3029 is a standard replacement module assembled for specific-fit applications and packaged with the core service parts needed for installation.
