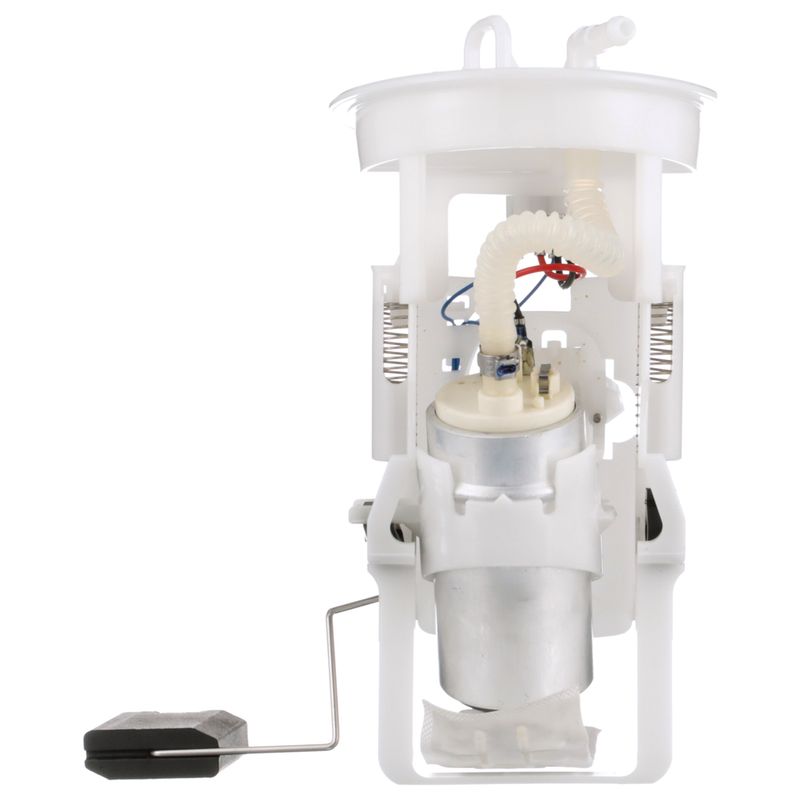

Sparta PN3046 Fuel Pump Module Assembly

Fuel Pump Module Assembly for BMW Applications

Sparta PN3046 is a standard replacement fuel pump module assembly for specific BMW gas applications. It includes the fuel sending unit and strainer, and it is built as an in-tank electric turbine pump for consistent fuel delivery in higher-mileage and earlier model vehicles.

Compatible With 1999-2006 BMW 323i, 323Ci, 328i, 328Ci, 325i, 325Ci, 325xi, 330i, 330Ci, 330xi applications, this Sparta fuel pump module assembly is engineered for direct-fit service where the original in-tank pump has worn out. Part number PN3046 is backed by OE fuel-supplier expertise from Delphi distribution.

Key Features

• Fuel pump module assembly with float arm and instruction sheet
• In-tank electric pump with turbine design
• Includes fuel sending unit and external strainer
• Specific-fit replacement for select BMW gas vehicles
• 12-volt system with 1 connector, 4 terminals, female connector and male terminals
• Standard replacement grade for service repair
• Average flow rating: 29; average current draw: 9
• Maximum pressure: 80; minimum pressure: 51

Detailed Description

Sparta PN3046 is a fuel pump module assembly designed for in-tank installation on select BMW 323i, 328i, 325i, and 330i family vehicles, including coupe and xi variants listed in the fitment data. It is configured for gasoline use and features a plastic housing, hose outlet, pin terminals, and a rectangular single-connector layout for specific-fit replacement service. The included fuel sending unit supports fuel level reporting, while the turbine-style pump and external strainer help maintain fuel delivery through normal wear conditions.

This part cross-references Bosch (e.g., 67896) for the same application. Use Sparta PN3046 when replacing a worn fuel pump module on compatible BMW 325Ci, 330Ci, 325xi, and 330xi models from the listed years.

Common Problems This Part Can Address

• Hard starting caused by a weak or failing in-tank fuel pump
• Engine hesitation or stalling from inconsistent fuel pressure
• Incorrect fuel level readings from a worn sending unit
• Fuel delivery loss on higher-mileage BMW 3 Series vehicles
• Poor drivability related to a restricted or aging pump module

Installation Notes and Tips

Install PN3046 in the fuel tank only, and verify the vehicle uses the listed specific-fit configuration before removal of the original module. Because mounting hardware, gasket or seal, lock ring, and wire harness are not included, reuse or source the required service parts as needed. Confirm connector shape, terminal count, outlet style, and fuel line routing before installation.

Quality Assurance

Sparta is distributed by Delphi, an OE full-line fuel supplier, and is positioned for earlier model and higher-mileage vehicle service. That OE-backed fuel system experience supports fit and performance expectations for this replacement fuel pump module assembly.
