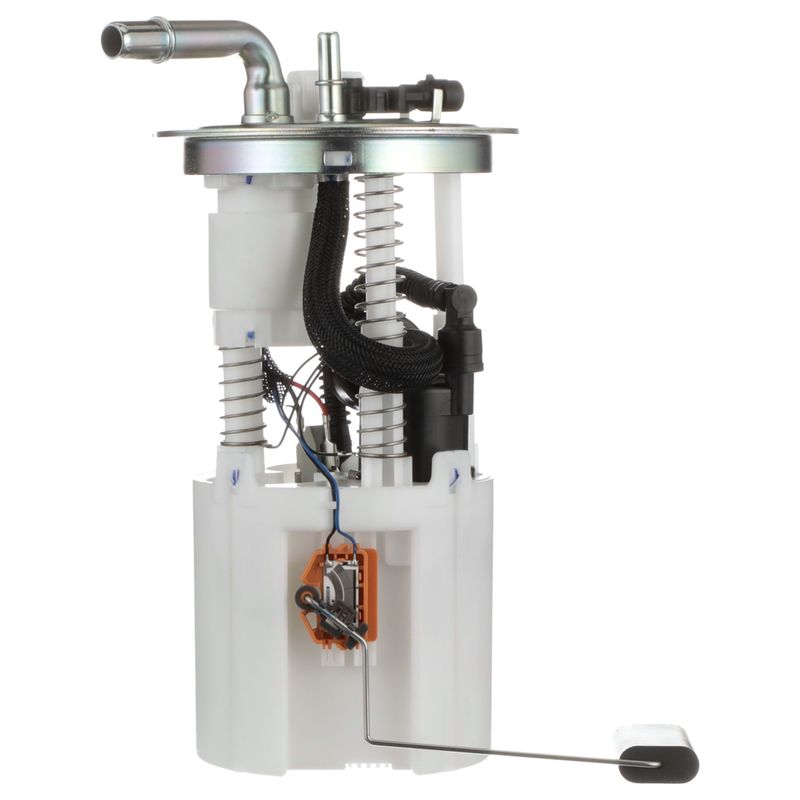

Sparta PN3048 Fuel Pump Module Assembly
| Brand | Sparta PN3048 |
|---|---|
| Fuel Sending Unit Included | Yes |
| Negative Ground | No |
| Outlet Outside Diameter | 0.375 |
| Voltage | 12 |
| Fuel Type | Gas |
| Regulator Included | Yes |
| Maximum Pressure | 80 |
| Terminal Type | Pin |
| Mounting Hardware Included | No |
| Universal Or Specific Fit | Specific |
| Grade Type | Standard replacement |
| Connector Quantity | 1 |
| Connector Shape | Oval |
| Gasket Or Seal Included | Yes |
| Housing Material | Plastic |
| Installation Warnings | No |
| Terminal Quantity | 4 |
| Lock Ring Included | No |
| Connector Gender | Female |
| Terminal Gender | Male |
| Strainer Included | Yes |
| Inlet Type | Strainer |
| Outlet Type | Quick connect |
| Outlet Quantity | 2 |
| Fuel Filter Included | Yes |
| In Tank or External | In tank |
| Resistance Ohms Empty | 250 |
| Resistance Ohms Full | 40 |
| Gasket Or Seal Material | Nitrile rubber |
| Minimum Pressure | 58 |
| Fits | Buick, Chevrolet, GMC, Isuzu, and Saab · 17 vehicles |
OE supplier pedigree. Backed by Delphi’s fuel-system expertise for dependable fit and performance.
Specific-fit module. Direct replacement for in-tank fuel delivery on gas applications.
Complete module assembly. Includes pump, float arm, seal, strainer, filter, and pressure sensor.
Cross-references Airtex Fuel Pumps E3707M, Autobest F2718A and Bosch 67508 for the same application. See all 30.
Fuel Pump Module Assembly for GM SUV Applications
The Sparta PN3048 fuel pump module assembly is a specific-fit, in-tank replacement for select 2005-2007 Buick Rainier, Chevrolet Trailblazer, GMC Envoy, Isuzu Ascender, Saab 9-7x, and 2005-2006 Chevrolet SSR applications. Built for gasoline systems, it includes the fuel sending unit, regulator, strainer, fuel filter, gasket/seal, and fuel tank pressure sensor for a complete service replacement.
Key Features
- Specific-fit fuel pump module assembly for confirmed vehicle applications
- 12-volt electric turbine pump design for in-tank installation
- Includes fuel sending unit, regulator, strainer, fuel filter, and gasket/seal
- Quick-connect outlet design with 2 outlets and 0.375 in. outlet outside diameter
- Female oval connector with 4 male terminals
- Standard replacement grade for gasoline fuel systems
- Maximum pressure: 80; minimum pressure: 58
- Average flow rating: 26; average current draw: 9
- Fuel tank pressure sensor included
Detailed Description
Sparta PN3048 is a fuel pump module assembly engineered for earlier model, higher-mileage vehicles that need a direct replacement fuel delivery unit. It is distributed by Delphi, an OE full-line fuel supplier, and is built to match the fit and performance requirements of the listed GM and related applications. This part cross-references Airtex E3707M and Bosch 67508 for the same application. Use PN3048 when servicing a 2005-2007 Chevrolet Trailblazer fuel pump module, a 2005-2007 GMC Envoy fuel pump assembly, or a 2005-2007 Buick Rainier fuel pump module replacement.
What This Part Helps Address
- Hard starting caused by weak fuel delivery
- Engine stalling from inconsistent pump output
- Fuel gauge errors related to a worn sending unit
- Low fuel pressure in gasoline in-tank systems
- Check engine concerns tied to fuel tank pressure sensing
Installation Notes and Tips
Install this module in the fuel tank using the correct vehicle-specific procedure. Verify connector shape, terminal count, outlet style, and tank depth before installation. The assembly includes a seal and strainer, but mounting hardware and lock ring are not included. Confirm the vehicle uses a gasoline, in-tank, specific-fit module before ordering. For fitment, this part is listed for 2005-2007 Buick Rainier, Chevrolet Trailblazer, GMC Envoy, Isuzu Ascender, and Saab 9-7x, plus 2005-2006 Chevrolet SSR.
Quality Assurance
Sparta is backed by Delphi distribution and OE-focused fuel system expertise, with coverage aimed at higher-mileage and earlier model vehicles. PN3048 is a standard replacement fuel pump module assembly built for the listed applications and fuel system requirements.
| Year | Make | Model | Liters | Cylinders | Wheel Base | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2007 | Buick | Rainier | 5.3L | V8 | 113.0" | N/A | — |
| 2007 | Chevrolet | Trailblazer | — | — | 113.0" | N/A | — |
| 2007 | GMC | Envoy | 5.3L | V8 | 113.0" | N/A | — |
| 2007 | Isuzu | Ascender | 4.2L | L6 | 113.0" | N/A | — |
| 2007 | Saab | 9-7x | 5.3L | V8 | 113.0" | N/A | — |
| 2006 | Buick | Rainier | 5.3L | V8 | 113.0" | N/A | — |
| 2006 | Chevrolet | SSR | — | — | 116.0" | N/A | — |
| 2006 | Chevrolet | Trailblazer | — | — | 113.0" | N/A | — |
| 2006 | GMC | Envoy | 5.3L | V8 | 113.0" | N/A | — |
| 2006 | Isuzu | Ascender | 5.3L | V8 | 113.0" | N/A | — |
| 2006 | Saab | 9-7x | 5.3L | V8 | 113.0" | N/A | — |
| 2005 | Buick | Rainier | 5.3L | V8 | 113.0" | N/A | — |
| 2005 | Chevrolet | SSR | — | — | 116.0" | N/A | — |
| 2005 | Chevrolet | Trailblazer | — | — | 113.0" | N/A | — |
| 2005 | GMC | Envoy | 5.3L | V8 | 113.0" | N/A | — |
| 2005 | Isuzu | Ascender | 5.3L | V8 | 113.0" | N/A | — |
| 2005 | Saab | 9-7x | 5.3L | V8 | 113.0" | N/A | — |
