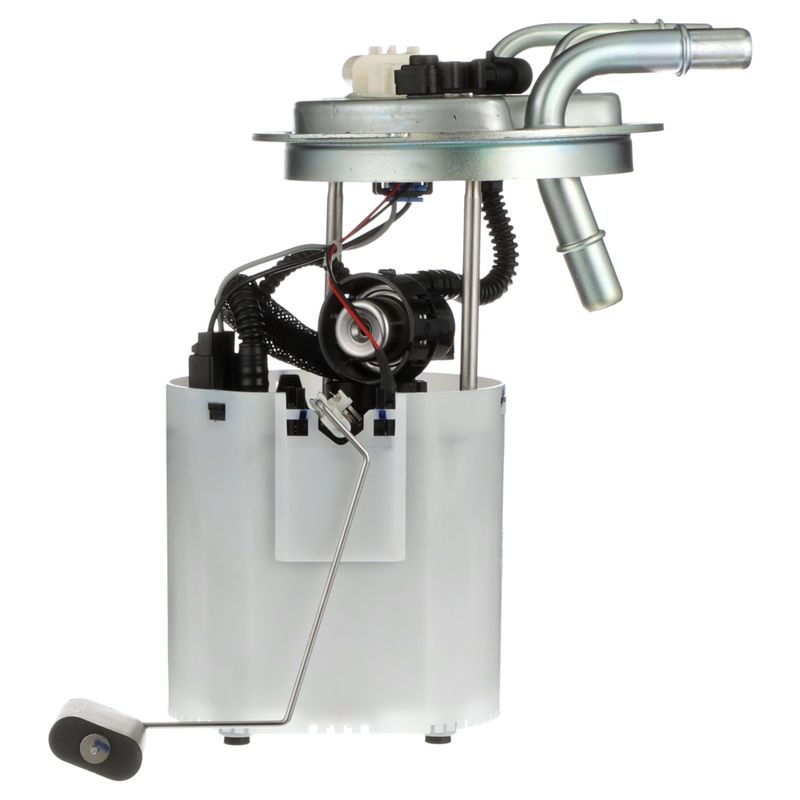

Sparta PN3052 Fuel Pump Module Assembly

Fuel Pump Module Assembly for GM SUVs

Sparta PN3052 is a specific-fit fuel pump module assembly for gasoline applications in select Cadillac, Chevrolet, and GMC vehicles. Built as a standard replacement, it includes the fuel sending unit, regulator, strainer, fuel filter, gasket/seal, and fuel tank pressure sensor for a complete in-tank service solution.

Backed by Delphi distribution and OE-focused engineering, this module is aimed at higher-mileage and earlier-model vehicles where correct fit and consistent fuel delivery matter. It is a 12-volt electric turbine pump with a quick-connect outlet design and a 1-piece connector layout for direct replacement service.

Key Features

• Sparta PN3052 fuel pump module assembly for gasoline vehicles
• Specific fit, standard replacement design
• In-tank electric turbine pump with 12-volt operation
• Includes fuel sending unit, regulator, strainer, fuel filter, gasket/seal, and fuel tank pressure sensor
• Quick-connect outlet with 3 outlets and oval 1-connector configuration
• Average flow rating: 30; maximum pressure: 80; minimum pressure: 55
• Plastic housing with nitrile rubber gasket/seal material

Detailed Description

Sparta PN3052 is engineered for select GM full-size SUV and truck applications, including Cadillac Escalade ESV, Cadillac Escalade EXT, Chevrolet Avalanche, Chevrolet Avalanche 1500, Chevrolet Suburban 1500, and GMC Yukon XL 1500. It is designed for 2004-2007 Cadillac Escalade ESV, 2004-2007 Cadillac Escalade EXT, 2007 Chevrolet Avalanche, 2004-2007 Chevrolet Suburban 1500, 2004-2007 GMC Yukon XL 1500, and 2004-2006 Chevrolet Avalanche 1500. This part cross-references Bosch 67567 for the same application.

As a fuel pump module assembly, PN3052 combines the pump, sender, regulator, and filtration components in one in-tank unit to restore fuel system function with the correct OE-style layout. The turbine pump design, 9-amp average current draw, and integrated fuel tank pressure sensor support consistent fuel delivery and accurate fuel level reporting.

Common Repair Applications

• Hard starting or extended crank caused by weak fuel delivery
• Fuel pressure loss under load or at higher demand
• Inaccurate fuel gauge readings from a worn sending unit
• Fuel system warning lights related to tank pressure sensing
• Noise, hesitation, or stalling linked to a failing in-tank pump

Installation Notes and Tips

PN3052 is an in-tank module with a specific-fit design, so confirm the vehicle year, make, and model before installation. The package includes the module assembly with float arm, seal, and instruction sheet; mounting hardware and lock ring are not included. Verify the connector shape, terminal count, outlet style, and fuel line routing before removing the original unit.

Quality Assurance

Sparta is distributed by Delphi, an OE fuel system supplier, and is positioned for higher-mileage and earlier-model vehicles where fit and performance consistency are important. PN3052 is built as a standard replacement fuel pump module assembly for direct service on the listed GM applications.
