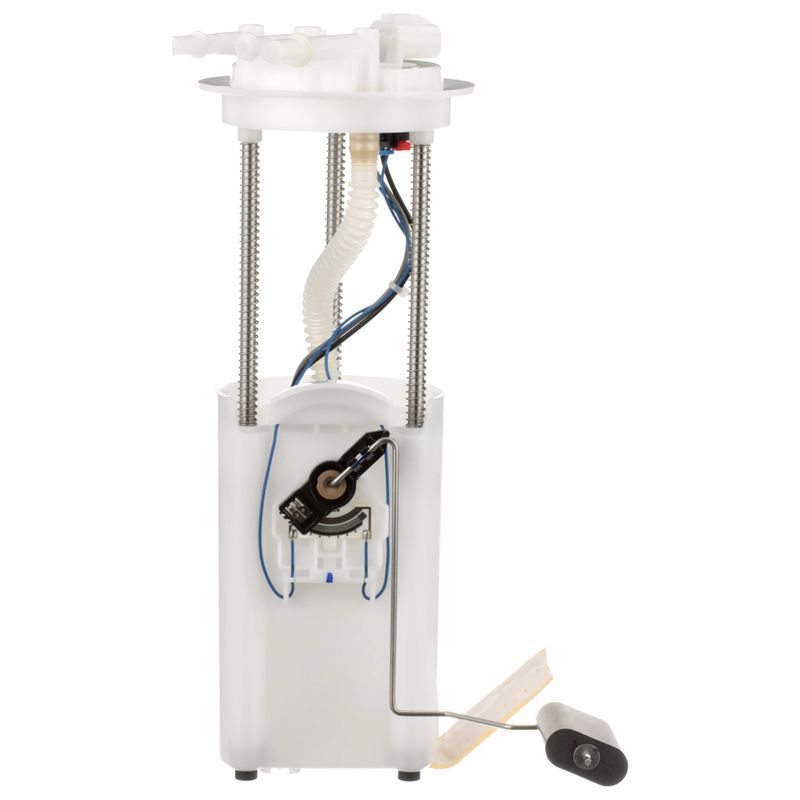

Sparta PN3064 Fuel Pump Module Assembly
| Brand | Sparta PN3064 |
|---|---|
| Fuel Sending Unit Included | Yes |
| Negative Ground | No |
| Outlet Outside Diameter | 0.375 |
| Voltage | 13 |
| Fuel Type | Gas |
| Regulator Included | No |
| Maximum Pressure | 109 |
| Terminal Type | Blade |
| Mounting Hardware Included | No |
| Universal Or Specific Fit | Specific |
| Wire Quantity | 4 |
| Grade Type | Standard replacement |
| Connector Quantity | 1 |
| Connector Shape | Oval |
| Gasket Or Seal Included | Yes |
| Housing Material | Plastic |
| Installation Warnings | No |
| Terminal Quantity | 4 |
| Lock Ring Included | No |
| Connector Gender | Female |
| Terminal Gender | Male |
| Strainer Included | Yes |
| Inlet Type | Strainer |
| Outlet Type | Quick connect |
| Outlet Quantity | 2 |
| Fuel Filter Included | No |
| In Tank or External | In tank |
| Resistance Ohms Empty | 0.1 |
| Resistance Ohms Full | 90 |
| Gasket Or Seal Material | Nitrile rubber |
| Fits | Chevrolet and GMC · 4 vehicles |
OE-supplier backed. Distributed by Delphi, the OE full-line fuel supplier.
Specific fit. Built as a standard replacement for a direct install.
In-tank module. Electric turbine pump with sender, seal, and harness included.
Cross-references Airtex Fuel Pumps E3932M, Autobest F2943A and Carter P74820M for the same application. See all 27.
Fuel Pump Module Assembly for Tahoe and Yukon
Sparta PN3064 is a specific-fit in-tank fuel pump module assembly for select 1996-1997 Chevrolet Tahoe and 1996-1997 GMC Yukon applications. It includes the fuel sending unit, strainer, gasket/seal, and wire harness for a complete standard replacement setup.
Key Features
- Specific-fit fuel pump module assembly for gas applications
- In-tank electric turbine pump design
- Fuel sending unit included
- Strainer and nitrile rubber gasket/seal included
- Wire harness included; 4-wire, 1-connector design
- Quick-connect outlet with 2 outlet ports
- 13-volt operation with 62-109 psi pressure range
- Plastic housing with blade terminals and female connector
Detailed Description
Sparta PN3064 is built for higher-mileage and earlier model vehicles, with OE-informed fit and performance support from Delphi distribution. This fuel pump module assembly is configured for in-tank installation and uses an electric turbine pump to deliver fuel for gas-powered systems. The assembly includes the float arm and fuel sending unit, helping restore fuel level reporting along with fuel delivery. PN3064 is a direct replacement for select Chevrolet Tahoe and GMC Yukon models, and it cross-references Airtex E3932M and Carter P74820M for the same application.
What It Helps Address
- Hard starting caused by weak fuel delivery
- Engine stalling from inconsistent pump output
- Fuel gauge readings that no longer track tank level correctly
- Low fuel pressure conditions within the 62-109 psi operating range
- Noise or wear associated with an aging in-tank pump module
Installation Notes and Tips
Fits 1996-1997 Chevrolet Tahoe and 1996-1997 GMC Yukon, in-tank. Verify connector shape, outlet style, and electrical terminal layout before installation. The package includes the fuel pump module assembly with float arm, seal, splices, wire harness, and instruction sheet; mounting hardware and lock ring are not included.
Quality Assurance
Sparta is distributed by Delphi, an OE fuel system supplier, and is positioned for standard replacement use on earlier model, higher-mileage vehicles. PN3064 is built with a specific-fit configuration to match the listed applications and fuel system requirements.
| Year | Make | Model | # Doors | Liters | Cylinders | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 1997 | Chevrolet | Tahoe | 4 Door | 5.7L | V8 | GAS | N/A | — |
| 1997 | GMC | Yukon | 4 Door | 5.7L | V8 | GAS | N/A | — |
| 1996 | Chevrolet | Tahoe | 4 Door | 5.7L | V8 | — | N/A | — |
| 1996 | GMC | Yukon | 4 Door | 5.7L | V8 | — | N/A | — |
