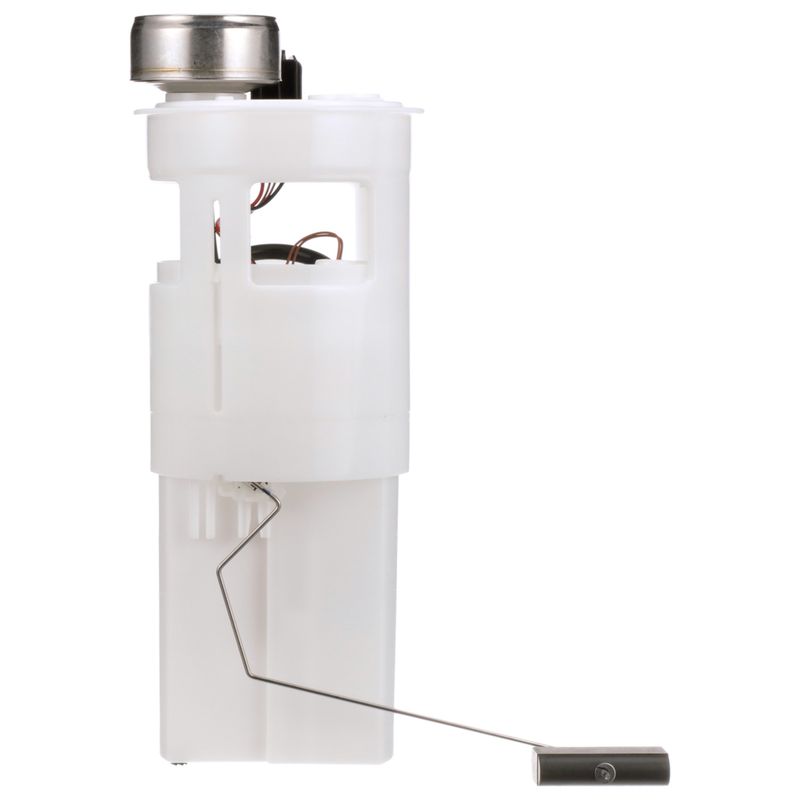

Sparta PN3097 Fuel Pump Module Assembly

Fuel Pump Module Assembly for Ram 1500

Sparta PN3097 is a specific-fit fuel pump module assembly for 2002-2003 Dodge Ram 1500 gas applications. Built as a standard replacement, it includes the fuel sending unit, regulator, strainer, fuel filter, gasket/seal, and float arm for a complete in-tank service solution.

Key Features

• Specific-fit fuel pump module assembly for 2002-2003 Dodge Ram 1500
• 12-volt electric turbine pump with 54 average flow rating
• In-tank design for gasoline applications
• Includes fuel sending unit, regulator, strainer, fuel filter, and gasket/seal
• Quick-connect outlet with 0.375 in. outside diameter
• Standard replacement grade with plastic housing
• Part number PN3097

Detailed Description

Sparta PN3097 is engineered for higher-mileage and earlier model vehicles, with OE-informed fit and performance expectations from Delphi, the OE full-line fuel supplier behind the brand. This fuel pump module assembly is built for the 2002-2003 Dodge Ram 1500 and is configured for in-tank gasoline fuel delivery. It uses a turbine-style electric pump, a female oval connector, blade terminals, and a quick-connect outlet for straightforward replacement of the original module. PN3097 also includes the fuel sending unit and regulator, helping restore fuel level reporting and pressure control in one service part.

This part cross-references Airtex Fuel Pumps E7161M and Bosch 67693 for the same application. Use PN3097 when servicing a Dodge Ram 1500 fuel system that needs a complete module assembly rather than a pump-only repair.

What It Helps Fix

• Hard starting caused by weak fuel delivery
• Engine stalling from inconsistent pump output
• Incorrect fuel gauge readings from a worn sending unit
• Fuel pressure loss in the 49-57 psi operating range
• Driveability issues tied to an aging in-tank module

Installation Notes and Tips

Fits 2002-2003 Dodge Ram 1500, in-tank. Confirm the vehicle uses a gasoline fuel system and match the connector, outlet, and terminal style before installation. The module includes a gasket/seal and strainer, but mounting hardware and lock ring are not included. Clean the tank area thoroughly and inspect the fuel lines and electrical connector before installing the new module.

Quality Assurance

Sparta is distributed by Delphi, an OE full-line fuel supplier, and is positioned for older and higher-mileage vehicle service. PN3097 is a standard replacement fuel pump module assembly built to OE-style fitment expectations for the listed Dodge Ram 1500 applications.
