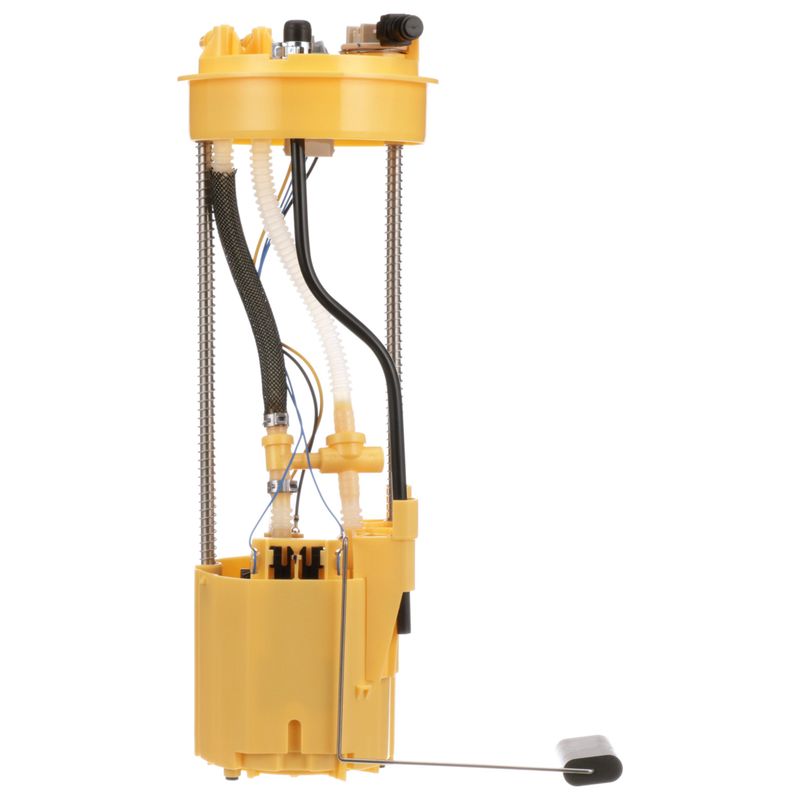

Sparta PN3124 Fuel Pump Module Assembly
| Brand | Sparta PN3124 |
|---|---|
| Fuel Sending Unit Included | Yes |
| Negative Ground | No |
| Outlet Outside Diameter | 0.375 |
| Voltage | 13 |
| Fuel Type | Diesel |
| Regulator Included | No |
| Maximum Pressure | 16 |
| Terminal Type | Pin |
| Mounting Hardware Included | No |
| Universal Or Specific Fit | Specific |
| Grade Type | Standard replacement |
| Connector Quantity | 1 |
| Connector Shape | Rectangle |
| Gasket Or Seal Included | Yes |
| Housing Material | Plastic |
| Installation Warnings | No |
| Terminal Quantity | 4 |
| Lock Ring Included | No |
| Connector Gender | Female |
| Terminal Gender | Male |
| Strainer Included | Yes |
| Inlet Type | Strainer |
| Outlet Type | Quick connect |
| Outlet Quantity | 2 |
| Fuel Filter Included | No |
| In Tank or External | In tank |
| Resistance Ohms Empty | 220 |
| Resistance Ohms Full | 20 |
| Gasket Or Seal Material | Nitrile rubber |
| Minimum Pressure | 9.5 |
| Fits | Dodge · 14 vehicles |
Specific fit. Standard replacement fuel pump module assembly for a clean, direct install.
OE-backed brand. Distributed by Delphi, the OE fuel supplier trusted for fit and performance.
Diesel in-tank module. Rollervane electric pump with sending unit, strainer, and gasket included.
Cross-references Airtex Fuel Pumps E7187M, Airtex Fuel Pumps E7230 and Autobest F3198A for the same application. See all 27.
Fuel Pump Module Assembly for Ram Diesel Applications
The Sparta PN3124 fuel pump module assembly is a specific-fit replacement for select Dodge Ram diesel trucks. Built as an in-tank electric module, it includes the fuel sending unit, strainer, gasket/seal, and float arm for a complete service replacement.
Backed by Delphi distribution and OE-focused fuel system expertise, this module is aimed at higher-mileage and earlier model vehicles that need dependable fuel delivery and accurate tank level reporting. It is a direct-fit option for Ram 2500 and Ram 3500 diesel applications from 1998-2004.
Key Features
- Part number PN3124 fuel pump module assembly
- Specific fit for select Dodge Ram 2500 and Ram 3500 diesel trucks
- In-tank electric rollervane pump design
- Fuel sending unit included for level signal replacement
- Strainer and gasket/seal included
- Quick-connect outlet design with 2 outlets
- 13-volt system with 9.5 to 16 maximum pressure range
- Plastic housing with 4-pin connector and 1 female connector
- Standard replacement grade for diesel fuel systems
Detailed Description
Sparta PN3124 is a fuel pump module assembly for diesel-powered Dodge Ram trucks, engineered for in-tank installation and specific vehicle fitment. It uses an electric rollervane pump design with an average flow rating of 35 and an average current draw of 6, supporting consistent fuel delivery in demanding truck applications. The module includes the fuel sending unit, internal strainer, and nitrile rubber gasket/seal, helping restore both fuel supply and tank level function in one service part.
This part cross-references Airtex Fuel Pumps E7187M and Carter P76110 for the same application. Compatible with 1998-2004 Dodge Ram 2500 and 1998-2004 Dodge Ram 3500 diesel models, PN3124 is a practical replacement when servicing a worn in-tank pump module on Ram diesel trucks.
Common Problems This Part Can Address
- Hard starting caused by weak or failing in-tank fuel delivery
- Engine hesitation or stalling from low fuel pressure
- Inaccurate fuel gauge readings from a worn sending unit
- Fuel starvation under load in diesel truck operation
- Noisy or inconsistent pump performance in the tank
Installation Notes and Tips
PN3124 is a specific-fit in-tank module for diesel applications, so verify the vehicle year, make, model, and fuel system before installation. The package includes the module assembly with float arm and instruction sheet; mounting hardware and lock ring are not included. Confirm connector style, outlet configuration, and tank access before removing the original unit.
Quality Assurance
Sparta is distributed by Delphi, an OE full-line fuel supplier with fuel system expertise focused on fit and performance. PN3124 is built as a standard replacement fuel pump module assembly for select Dodge Ram diesel trucks.
- Fits 1998-2004 Dodge Ram 2500, N/A
- Fits 1998-2004 Dodge Ram 3500, N/A
| Year | Make | Model | Liters | Cylinders | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2004 | Dodge | Ram 2500 | 5.9L | L6 | DIESEL | N/A | — |
| 2004 | Dodge | Ram 3500 | 5.9L | L6 | DIESEL | N/A | — |
| 2003 | Dodge | Ram 2500 | 5.9L | L6 | DIESEL | N/A | — |
| 2003 | Dodge | Ram 3500 | 5.9L | L6 | DIESEL | N/A | — |
| 2002 | Dodge | Ram 2500 | 5.9L | L6 | DIESEL | N/A | — |
| 2002 | Dodge | Ram 3500 | 5.9L | L6 | DIESEL | N/A | — |
| 2001 | Dodge | Ram 2500 | 5.9L | L6 | DIESEL | N/A | — |
| 2001 | Dodge | Ram 3500 | 5.9L | L6 | DIESEL | N/A | — |
| 2000 | Dodge | Ram 2500 | 5.9L | L6 | DIESEL | N/A | — |
| 2000 | Dodge | Ram 3500 | 5.9L | L6 | DIESEL | N/A | — |
| 1999 | Dodge | Ram 2500 | 5.9L | L6 | DIESEL | N/A | — |
| 1999 | Dodge | Ram 3500 | 5.9L | L6 | DIESEL | N/A | — |
| 1998 | Dodge | Ram 2500 | 5.9L | L6 | DIESEL | N/A | — |
| 1998 | Dodge | Ram 3500 | 5.9L | L6 | DIESEL | N/A | — |
