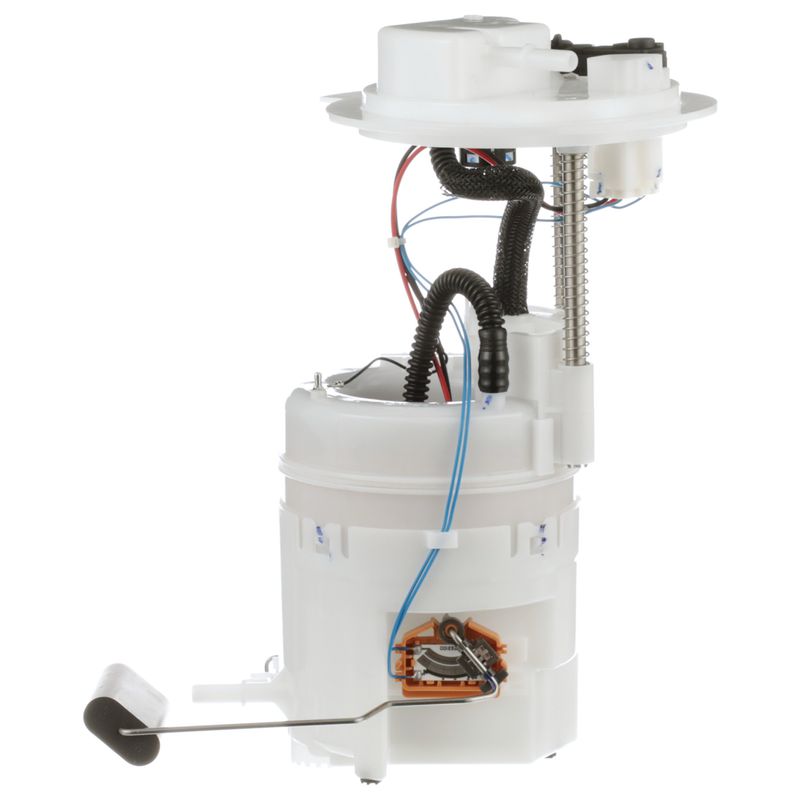

Sparta PN3126 Fuel Pump Module Assembly - Left
| Brand | Sparta PN3126 |
|---|---|
| Position | Left |
| Fuel Sending Unit Included | Yes |
| Negative Ground | No |
| Outlet Outside Diameter | 0.313 |
| Voltage | 12 |
| Fuel Type | Gas |
| Regulator Included | Yes |
| Maximum Pressure | 80 |
| Terminal Type | Blade |
| Mounting Hardware Included | No |
| Universal Or Specific Fit | Specific |
| Grade Type | Standard replacement |
| Connector Quantity | 1 |
| Connector Shape | Trapezoid |
| Gasket Or Seal Included | Yes |
| Housing Material | Plastic |
| Installation Warnings | No |
| Terminal Quantity | 4 |
| Lock Ring Included | No |
| Connector Gender | Female |
| Terminal Gender | Male |
| Strainer Included | Yes |
| Inlet Type | Strainer |
| Outlet Type | Quick connect |
| Outlet Quantity | 2 |
| Fuel Filter Included | Yes |
| In Tank or External | In tank |
| Resistance Ohms Empty | 83 |
| Resistance Ohms Full | 4 |
| Gasket Or Seal Material | Nitrile rubber |
| Minimum Pressure | 51 |
| Fits | Hyundai · 3 vehicles |
OE-backed design. Distributed by Delphi, with fit and performance expertise from OE fuel specialists.
Specific replacement fit. Made for a direct, no-guesswork install on the intended application.
Complete module assembly. Includes the pump, float arm, regulator, strainer, filter, seal, and sensor.
Cross-references Airtex Fuel Pumps E8821M, Autobest F4832A and Carter P76603M for the same application. See all 11.
Fuel Pump Module Assembly for Hyundai Santa Fe
Sparta PN3126 is a specific-fit in-tank fuel pump module assembly for the left side of 2007-2009 Hyundai Santa Fe models. Built as a standard replacement for gas applications, it includes the fuel sending unit, regulator, strainer, fuel filter, gasket/seal, and fuel tank pressure sensor for a complete service solution.
Key Features
- Specific-fit fuel pump module assembly for 2007-2009 Hyundai Santa Fe, left
- In-tank electric turbine pump design for gasoline fuel systems
- Includes fuel sending unit, regulator, strainer, fuel filter, and gasket/seal
- 12-volt unit with 55 average flow rating and 51-80 maximum pressure range
- Trapezoid female connector with 4 male blade terminals
- Plastic housing with quick-connect outlet and 2 outlet ports
- Fuel tank pressure sensor included
Detailed Description
Sparta PN3126 is engineered for higher-mileage and earlier-model vehicles, with OE-informed fit and performance support from Delphi distribution. This fuel pump module assembly is built for the left side of the 2007-2009 Hyundai Santa Fe and is designed for gas-powered, in-tank applications. The module uses an electric turbine pump, includes an internal strainer and fuel filter, and comes with the float arm and instruction sheet for service work. This part cross-references Airtex E8821M and Carter P76603M for the same application. Search terms such as Hyundai Santa Fe left fuel pump module assembly, 2007-2009 Santa Fe in-tank fuel pump, and Sparta PN3126 fuel pump module assembly align with this replacement part.
Common Issues This Part Can Address
- Hard starting caused by weak fuel delivery
- Engine stalling from inconsistent fuel pressure
- Fuel gauge inaccuracies related to a worn sending unit
- Fuel pressure faults tied to a failing regulator or pump module
- Contamination concerns when the pump strainer or fuel filter is restricted
Installation Notes and Tips
Install this module in the tank on the left side only for the listed Hyundai Santa Fe applications. Verify connector shape, terminal count, outlet style, and pressure requirements before installation. Replace the tank seal during service, and confirm the fuel system is clean before reassembly to help protect the new pump and filter components.
Quality Assurance
Sparta is distributed by Delphi, an OE full-line fuel supplier with application knowledge rooted in original-equipment fuel system expertise. PN3126 is a standard replacement module built for specific-fit service on the listed Hyundai Santa Fe vehicles.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2009 | Hyundai | Santa Fe | 3.3L | V6 | Left | — |
| 2008 | Hyundai | Santa Fe | 3.3L | V6 | Left | — |
| 2007 | Hyundai | Santa Fe | 3.3L | V6 | Left | — |
