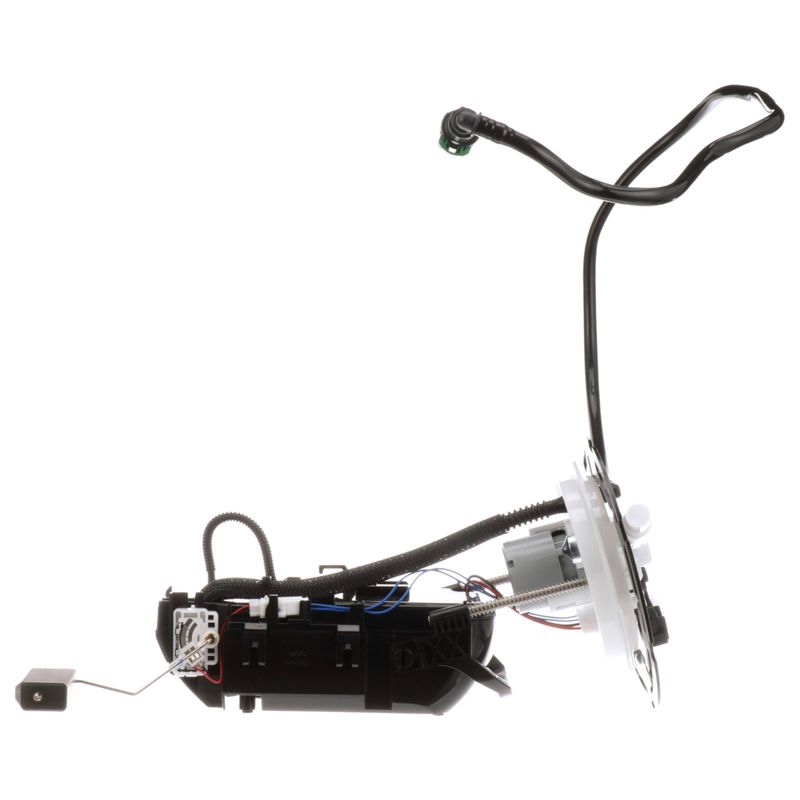

Sparta PN3140 Fuel Pump Module Assembly

Fuel Pump Module Assembly for GM Flex-Fuel Applications

Sparta PN3140 is a specific-fit fuel pump module assembly for select Chevrolet Malibu, Pontiac G6, and Saturn Aura applications. Built as a standard replacement for in-tank service, it includes the fuel sending unit, regulator, strainer, fuel filter, gasket/seal, and fuel tank pressure sensor for a complete repair path.

Backed by Delphi OE fuel system expertise, this module is aimed at higher-mileage and earlier model vehicles that need dependable fuel delivery and accurate tank level reporting. The PN3140 fuel pump module assembly is a direct-fit solution for 2009-2012 Chevrolet Malibu, 2009-2010 Pontiac G6, and 2009 Saturn Aura with flex-fuel systems.

Key Features

• Specific-fit, in-tank fuel pump module assembly
• 12-volt electric turbine pump design
• Fuel type: flex fuel
• Maximum pressure: 65 psi; minimum pressure: 58 psi
• Average flow rating: 20
• Includes fuel sending unit, regulator, strainer, fuel filter, gasket/seal, and fuel tank pressure sensor
• Quick-connect outlet with 3 outlets and 0.375 in. outside diameter
• Plastic housing with nitrile rubber seal material
• 4-terminal blade connection, female connector, male terminals

Detailed Description

Sparta PN3140 is engineered as a standard replacement fuel pump module assembly for select GM vehicles using flex fuel. It is designed for in-tank installation and includes the components needed to restore fuel delivery and tank level signal performance in one assembly. The module uses a turbine-style electric pump, internal strainer, and integrated regulator to support consistent fuel system operation.

This part cross-references Carter P76678M for the same application. For shoppers searching for a fuel pump module assembly for 2009-2012 Chevrolet Malibu, 2009-2010 Pontiac G6, or 2009 Saturn Aura, PN3140 provides a direct-fit option with the correct connector, outlet style, and sensor package.

Common Repair Uses

• Hard starting caused by weak fuel pressure
• Engine stalling from inconsistent fuel delivery
• Fuel gauge inaccuracies from a worn sending unit
• Fuel pressure warning codes related to pump or regulator performance
• Driveability issues on flex-fuel GM applications

Installation Notes and Tips

PN3140 installs in the fuel tank and uses a single rectangular connector with blade terminals. Verify the vehicle’s flex-fuel configuration, connector style, and outlet connection before installation. The package includes the module assembly with float arm, seal, fuel feed line, and instruction sheet; mounting hardware and lock ring are not included.

Because this is a specific-fit module, confirm the vehicle application before service. For 2009-2012 Chevrolet Malibu, 2009-2010 Pontiac G6, and 2009 Saturn Aura, PN3140 is the correct style of replacement when the original assembly uses the same in-tank layout and electrical connection.

Quality Assurance

Sparta is distributed by Delphi, an OE full-line fuel supplier with deep fuel system application knowledge. That OE-backed context supports fit and performance selection for higher-mileage and earlier model vehicles. Part number PN3140 is built as a standard replacement fuel pump module assembly for direct service use.
