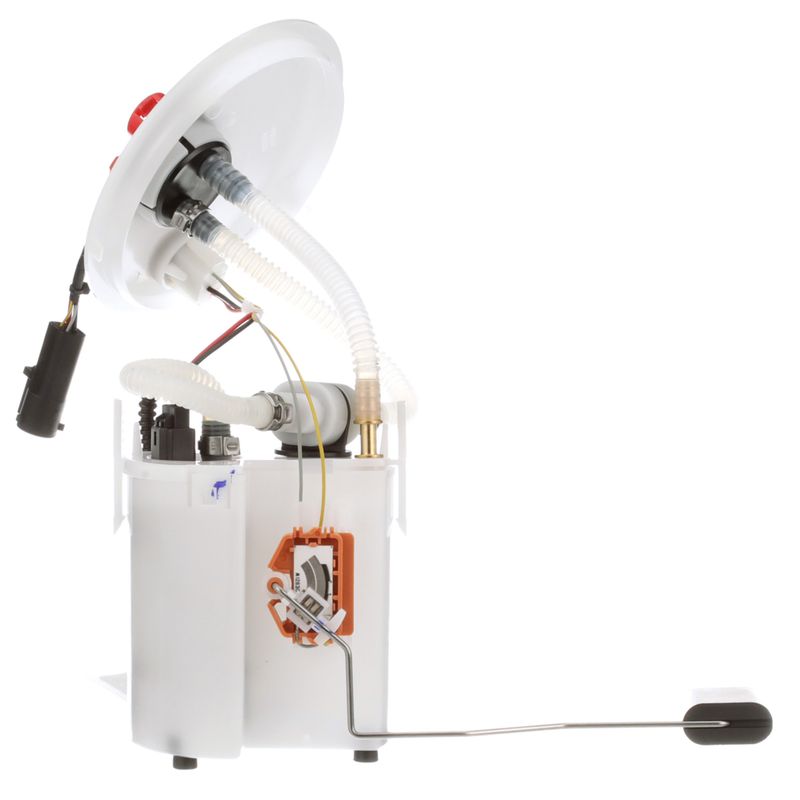

Sparta PN3147 Fuel Pump Module Assembly - Right
| Brand | Sparta PN3147 |
|---|---|
| Position | Right |
| Fuel Sending Unit Included | Yes |
| Negative Ground | No |
| Outlet Outside Diameter | 0.313 |
| Voltage | 12 |
| Fuel Type | Gas |
| Regulator Included | Yes |
| Maximum Pressure | 80 |
| Terminal Type | Pin |
| Mounting Hardware Included | No |
| Universal Or Specific Fit | Specific |
| Grade Type | Standard replacement |
| Connector Quantity | 1 |
| Connector Shape | Round |
| Gasket Or Seal Included | Yes |
| Housing Material | Plastic |
| Installation Warnings | No |
| Terminal Quantity | 4 |
| Lock Ring Included | No |
| Connector Gender | Female |
| Terminal Gender | Male |
| Strainer Included | Yes |
| Inlet Type | Strainer |
| Outlet Type | Female push in |
| Outlet Quantity | 2 |
| Fuel Filter Included | No |
| In Tank or External | In tank |
| Resistance Ohms Empty | 15 |
| Resistance Ohms Full | 160 |
| Gasket Or Seal Material | Nitrile rubber |
| Minimum Pressure | 44 |
| Fits | Ford, Jaguar, and Lincoln · 7 vehicles |
OE-backed engineering. Distributed by Delphi, the OE fuel supplier trusted for fit and performance.
Standard replacement. Specific-fit fuel pump module assembly for straightforward service.
Complete module assembly. Includes the fuel sending unit, regulator, strainer, and seal.
Cross-references Airtex Fuel Pumps E2314, Carter P74937M and Spectra Premium SP1134 for the same application. See all 16.
Fuel Pump Module Assembly for Right-Side Fitment
Sparta PN3147 is a specific-fit in-tank fuel pump module assembly for gasoline applications. It includes the fuel sending unit, regulator, strainer, gasket/seal, and float arm for direct replacement service on select Ford, Jaguar, and Lincoln vehicles.
Built for higher-mileage and earlier model vehicles, this Sparta fuel pump module assembly is backed by OE fuel-system expertise from Delphi distribution. It is a practical replacement for a failing fuel delivery module on the 2002 Ford Thunderbird, 2000-2002 Jaguar S-Type, and 2000-2002 Lincoln LS.
- In-tank electric turbine pump design
- 12-volt gasoline fuel system application
- Fuel sending unit included
- Regulator included
- Strainer included with external strainer setup
- Gasket/seal included with nitrile rubber material
- Specific fit replacement for the right-side position
- Round 1-connector design with 4 terminals
- Female push-in outlet style with 2 outlets
- Maximum pressure rating: 80; minimum pressure: 44
Detailed Product Overview
Sparta PN3147 is a standard replacement fuel pump module assembly for in-tank gasoline systems. It uses a turbine-style electric pump and includes the sender, regulator, seal, and strainer needed for a complete module service. The plastic housing and specific-fit design support direct replacement on the listed applications, including the 2002 Ford Thunderbird right side, 2000-2002 Jaguar S-Type, and 2000-2002 Lincoln LS right side. This part cross-references Airtex Fuel Pumps E2314 and Carter P74937M for the same application.
Common Fuel System Problems It Can Address
- Hard starting caused by weak fuel pressure
- Engine stalling from inconsistent fuel delivery
- Fuel gauge errors from a worn sending unit
- Low-pressure or high-pressure fuel system faults
- Noisy or failing in-tank pump operation
Installation Notes and Tips
Verify the vehicle’s right-side application before installation. Replace the tank seal during service, confirm connector and outlet orientation, and inspect the fuel tank for contamination before installing the new module. Because mounting hardware and lock ring are not included, reuse or source the required hardware as needed for the vehicle.
Quality Assurance
Sparta fuel system components are distributed through Delphi, an OE full-line fuel supplier with deep application knowledge in fuel delivery and fitment. PN3147 is built as a standard replacement module for the listed vehicles and fuel-system configuration.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2002 | Ford | Thunderbird | 3.9L | V8 | Right | — |
| 2002 | Jaguar | S-Type | 4.0L | V8 | N/A | — |
| 2002 | Lincoln | LS | 3.9L | V8 | Right | — |
| 2001 | Jaguar | S-Type | 4.0L | V8 | N/A | — |
| 2001 | Lincoln | LS | 3.9L | V8 | Right | — |
| 2000 | Jaguar | S-Type | 4.0L | V8 | N/A | — |
| 2000 | Lincoln | LS | 3.9L | V8 | Right | — |
