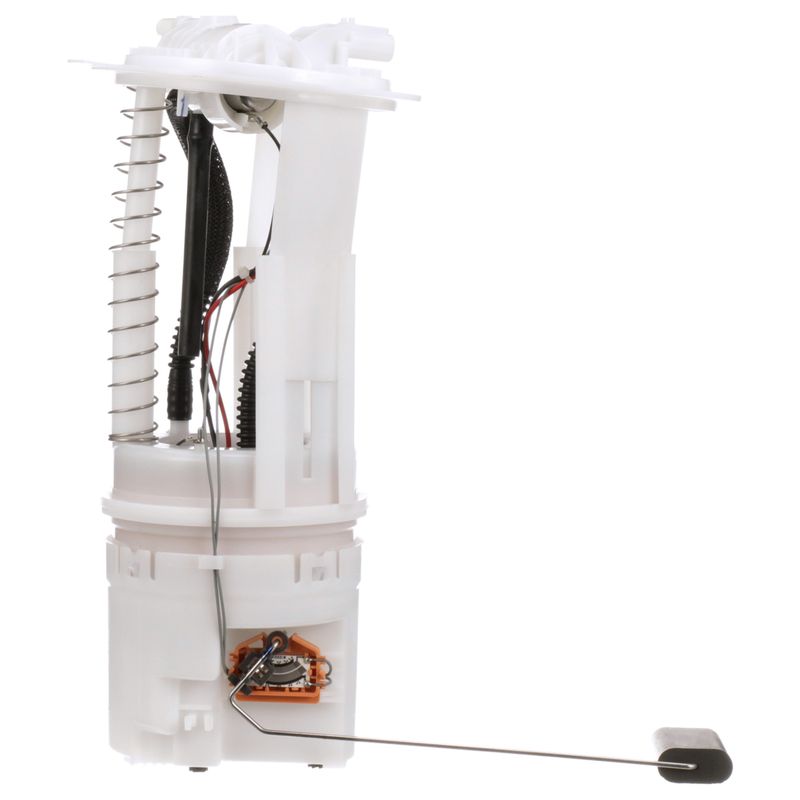

Sparta PN3148 Fuel Pump Module Assembly

Fuel Pump Module Assembly for Jeep Wrangler

Sparta PN3148 is a standard replacement fuel pump module assembly for select 2005-2006 Jeep Wrangler applications. It is built for in-tank gasoline systems and includes the fuel sending unit, regulator, strainer, fuel filter, gasket/seal, and float arm for a complete service-focused replacement.

Backed by Delphi distribution and OE fuel system expertise, this Sparta fuel pump module assembly is aimed at higher-mileage and earlier model vehicles where correct fit and stable fuel delivery matter. Fits 2005-2006 Jeep Wrangler, N/A.

Key Features

• Specific-fit fuel pump module assembly for select Jeep Wrangler models
• Electric turbine pump design for in-tank gasoline fuel systems
• 12-volt operation with blade terminals and a single rectangular connector
• Includes fuel sending unit, regulator, strainer, fuel filter, and gasket/seal
• Quick-connect outlet with 0.375 in. outside diameter
• Standard replacement grade for direct service use
• Sparta PN3148 cross-references Bosch 67756 and Carter P76521M for the same application

Detailed Description

Sparta PN3148 fuel pump module assembly is engineered for direct replacement in select 2005-2006 Jeep Wrangler vehicles. The module uses an electric turbine pump with an internal strainer and in-tank mounting, along with a built-in regulator to support fuel system pressure control. It is designed for gasoline applications and lists a minimum pressure of 58 and maximum pressure of 60, with an average flow rating of 34 and average current draw of 10.

This assembly also includes the fuel sending unit for fuel level reporting, plus a nitrile rubber seal and instruction sheet for service work. The housing is plastic, the connector is female with four male terminals, and the outlet uses a quick-connect design for the fuel line connection. For shoppers searching for a 2005 Jeep Wrangler fuel pump module assembly or a 2006 Jeep Wrangler in-tank fuel pump replacement, PN3148 provides the specified fitment and component layout.

Common Issues This Part May Address

• Hard starting caused by weak or inconsistent fuel delivery
• Engine stalling from low fuel pressure
• Inaccurate fuel gauge readings from a worn sending unit
• Fuel starvation under load from a failing in-tank pump
• Fuel system service needs on higher-mileage Jeep Wrangler models

Installation Notes and Tips

Confirm the vehicle application before installation: Fits 2005-2006 Jeep Wrangler, N/A. Verify connector shape, terminal count, outlet style, and tank configuration against the original module before removal. Because mounting hardware and lock ring are not included, reuse or source the required vehicle-specific hardware as needed. Inspect the tank, electrical connector, and fuel lines for wear before installing the new module.

Quality Assurance

Sparta is distributed by Delphi, an OE full-line fuel supplier with deep fuel system application knowledge. That OE-backed sourcing supports fit and performance expectations for earlier model, higher-mileage vehicles such as the Jeep Wrangler.
