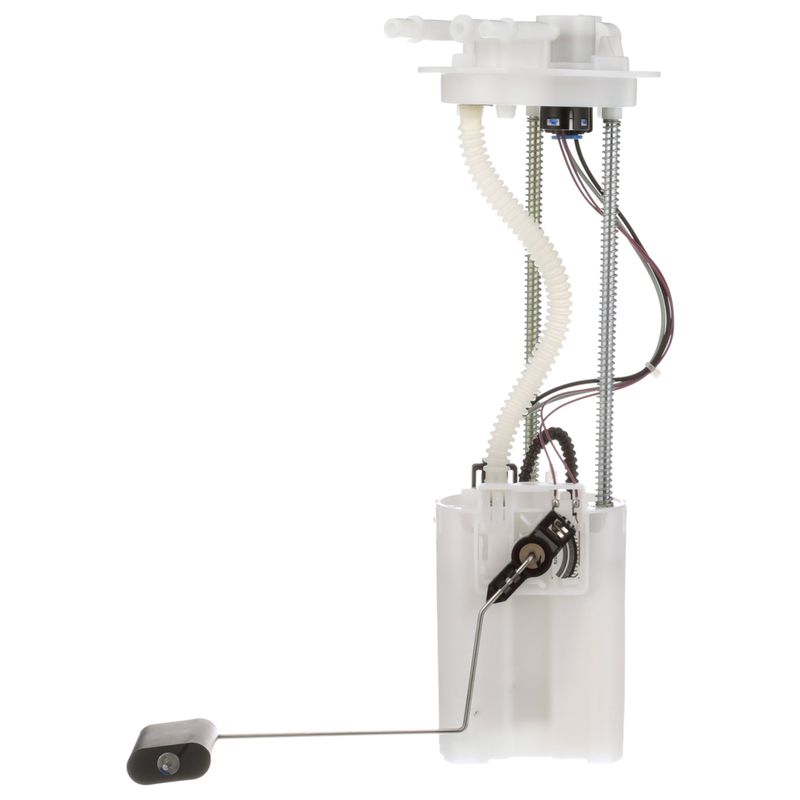

Sparta PN3162 Fuel Pump Module Assembly - Right
| Brand | Sparta PN3162 |
|---|---|
| Position | Right |
| Fuel Sending Unit Included | Yes |
| Negative Ground | No |
| Outlet Outside Diameter | 0.375 |
| Voltage | 12 |
| Fuel Type | Gas |
| Regulator Included | No |
| Maximum Pressure | 73 |
| Terminal Type | Blade |
| Mounting Hardware Included | No |
| Universal Or Specific Fit | Specific |
| Grade Type | Standard replacement |
| Connector Quantity | 1 |
| Connector Shape | Oval |
| Gasket Or Seal Included | Yes |
| Housing Material | Plastic |
| Installation Warnings | No |
| Terminal Quantity | 4 |
| Lock Ring Included | No |
| Connector Gender | Female |
| Terminal Gender | Male |
| Strainer Included | Yes |
| Inlet Type | Strainer |
| Outlet Type | Quick connect |
| Outlet Quantity | 2 |
| Fuel Filter Included | No |
| In Tank or External | In tank |
| Resistance Ohms Empty | 125 |
| Resistance Ohms Full | 20 |
| Gasket Or Seal Material | Nitrile rubber |
| Minimum Pressure | 43 |
| Fits | Saturn · 2 vehicles |
OE-supplier backed. Distributed by Delphi, with OE expertise behind the brand.
Specific fit. Made for a direct replacement on the right side.
Complete module assembly. Includes the fuel sending unit, strainer, gasket, and float arm.
Cross-references Carter P76239M, Spectra Premium SP6278M and 4010327 for the same application. See all 13.
Fuel Pump Module Assembly for Saturn Vue
The Sparta PN3162 fuel pump module assembly is a specific-fit, in-tank replacement for the 2002-2003 Saturn Vue, right side. Built for gas applications, it includes the fuel sending unit, strainer, gasket/seal, and float arm for a complete service-ready assembly.
Key Features
- Specific-fit fuel pump module assembly for the right side
- In-tank electric turbine pump design for gasoline fuel systems
- 12-volt operation with 43-73 psi pressure range
- Includes fuel sending unit, strainer, gasket/seal, and float arm
- Plastic housing with oval 1-connector design
- Quick-connect outlet with 2 outlets and 0.375 in. outside diameter
- Standard replacement grade for earlier model, higher-mileage vehicles
Detailed Description
Sparta PN3162 is a fuel pump module assembly engineered for the 2002-2003 Saturn Vue, right position. It is an in-tank electric replacement built for gas fuel systems and uses a turbine-style pump design with a 10-amp average current draw and 20 average flow rating. The assembly includes the fuel sending unit for fuel level reporting, along with a strainer and nitrile rubber gasket/seal for a complete tank-side service. This part cross-references Carter P76239M for the same application.
Backed by Delphi OE fuel system expertise, Sparta is positioned for higher-mileage and earlier model vehicles where correct fit and dependable fuel delivery matter. The PN3162 is a direct replacement choice for Saturn Vue fuel pump module service when the original unit shows signs of wear or inconsistent fuel delivery.
What This Part Helps Address
- Hard starting caused by weak or failing fuel delivery
- Engine stalling from inconsistent fuel pressure
- Fuel gauge errors related to a worn sending unit
- Low fuel pressure conditions in the tank-mounted pump assembly
- Noise or performance issues from an aging in-tank module
Installation Notes and Tips
Install PN3162 in the fuel tank on the right side of the Saturn Vue. Verify connector style, outlet type, and tank configuration before installation. The package includes the module assembly with float arm and instruction sheet; mounting hardware, lock ring, wire harness, regulator, and fuel filter are not included.
Quality Assurance
Sparta is distributed by Delphi, an OE full-line fuel supplier, and is built around OE-focused fit and performance standards for replacement fuel system service.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2003 | Saturn | Vue | 3.0L | V6 | Right | — |
| 2002 | Saturn | Vue | 3.0L | V6 | Right | — |
| No rows match your filter. | ||||||
