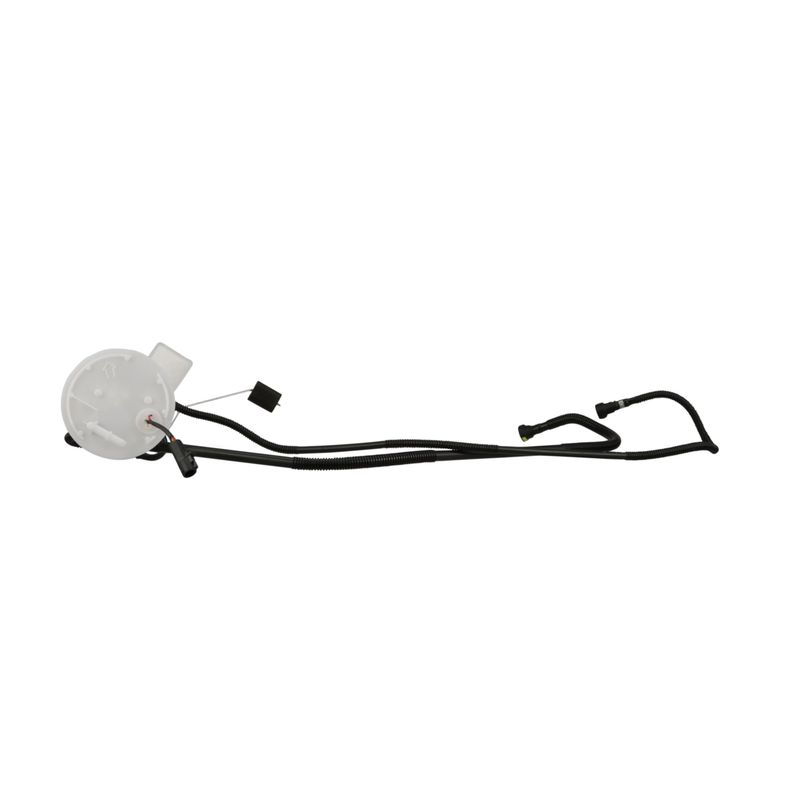

Sparta PN3175 Fuel Pump Module Assembly

Fuel Pump Module Assembly for Jaguar S-Type, XJ8, and Vanden Plas

The Sparta PN3175 fuel pump module assembly is a specific-fit replacement for select Jaguar models, including the 2003-2005 Jaguar S-Type, 2004-2005 Jaguar Vanden Plas, and 2004-2005 Jaguar XJ8. Built for gasoline applications, it combines the pump, sending unit, regulator, seal, and strainer in one in-tank assembly for a direct service replacement.

Key Features

• Specific-fit fuel pump module assembly for confirmed Jaguar applications
• In-tank electric turbine pump design
• Includes fuel sending unit, regulator, strainer, and gasket/seal
• 12-volt gasoline fuel system application
• Maximum pressure rating of 109 psi with 80 psi minimum pressure
• Quick-connect outlet with 0.375 in. outside diameter
• Plastic housing with round female connector and 4 male terminals
• Average flow rating of 29 and average current draw of 11
• Sparta PN3175 cross-references Carter P76604M and Dorman - HELP 67935 for the same application

Detailed Description

Sparta PN3175 is a standard replacement fuel pump module assembly engineered for higher-mileage and earlier-model vehicles. Distributed by Delphi, an OE full-line fuel supplier, this assembly is built with fit and performance in mind for service work on Jaguar S-Type, Jaguar Vanden Plas, and Jaguar XJ8 models. The module is configured for in-tank installation and includes the fuel sending unit, regulator, external strainer, and nitrile rubber seal to simplify replacement of the complete fuel delivery unit.

For fitment-focused searches, this part fits 2003-2005 Jaguar S-Type, 2004-2005 Jaguar Vanden Plas, and 2004-2005 Jaguar XJ8. The Sparta PN3175 is a direct-match option for gasoline fuel systems that require a specific-fit module assembly with a quick-connect outlet and pin-style electrical terminals.

Common Problems This Part Can Address

• Hard starting caused by a weak or failing in-tank fuel pump
• Fuel pressure loss in the gasoline delivery system
• Inaccurate fuel level readings from a worn sending unit
• Engine hesitation or stalling related to inconsistent fuel delivery
• Fuel system service needs when the pump module, regulator, and strainer are replaced together

Installation Notes and Tips

Install this module in the fuel tank using the correct vehicle-specific procedure for the Jaguar S-Type, Vanden Plas, or XJ8. Verify connector shape, terminal count, outlet style, and pressure requirements before installation. The package includes the fuel pump module assembly with float arm, seal, and instruction sheet; mounting hardware and lock ring are not included.

Because this is a specific-fit in-tank assembly, confirm the vehicle’s fuel system configuration and compare the original connector and outlet details before removal. Clean the tank area and inspect the sealing surface to help ensure proper sealing during reassembly.

Quality Assurance

Sparta is distributed by Delphi, an OE full-line fuel supplier with application knowledge for fit and performance on earlier-model, higher-mileage vehicles. PN3175 is built as a standard replacement fuel pump module assembly for confirmed Jaguar applications.
