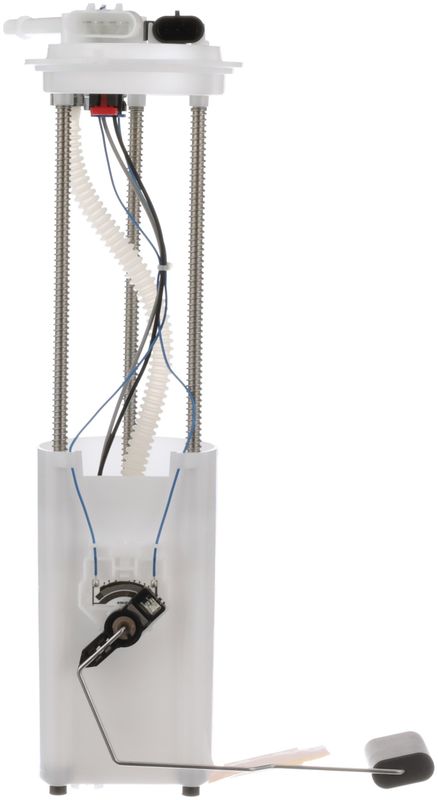

Sparta PN3183 Fuel Pump Module Assembly
| Brand | Sparta PN3183 |
|---|---|
| Fuel Sending Unit Included | Yes |
| Negative Ground | No |
| Outlet Outside Diameter | 0.375 |
| Voltage | 13 |
| Fuel Type | Gas |
| Regulator Included | No |
| Maximum Pressure | 109 |
| Terminal Type | Blade |
| Mounting Hardware Included | No |
| Universal Or Specific Fit | Specific |
| Wire Quantity | 4 |
| Grade Type | Standard replacement |
| Connector Quantity | 1 |
| Connector Shape | Oval |
| Gasket Or Seal Included | Yes |
| Housing Material | Plastic |
| Installation Warnings | No |
| Terminal Quantity | 4 |
| Lock Ring Included | No |
| Connector Gender | Female |
| Terminal Gender | Male |
| Strainer Included | Yes |
| Inlet Type | Strainer |
| Outlet Type | Quick connect |
| Outlet Quantity | 3 |
| Fuel Filter Included | No |
| In Tank or External | In tank |
| Resistance Ohms Empty | 0.1 |
| Resistance Ohms Full | 90 |
| Gasket Or Seal Material | Nitrile rubber |
| Fits | Chevrolet and GMC · 2 vehicles |
OE-backed design. Distributed by Delphi, with fit and performance informed by OE fuel expertise.
Specific-fit module. Built as a direct replacement fuel pump module assembly for a precise install.
Complete tank service. Includes the pump module, float arm, seal, splices, wire harness, and instruction sheet.
Cross-references Airtex Fuel Pumps E3920M, Autobest F2931A and Bosch 67329 for the same application. See all 22.
Fuel Pump Module Assembly for 1996 S10 and Sonoma
Sparta PN3183 is a specific-fit fuel pump module assembly for select 1996 Chevrolet S10 and 1996 GMC Sonoma applications. Built as a standard replacement for gas-powered vehicles, it includes the fuel sending unit, strainer, gasket/seal, and wire harness for a complete in-tank service.
Key Features
- Specific-fit fuel pump module assembly for direct application matching
- In-tank electric turbine pump design
- Fuel sending unit included
- Fuel tank pressure sensor included
- Strainer, gasket/seal, and wire harness included
- Quick-connect outlet with 3 outlet ports
- Standard replacement grade for gasoline fuel systems
- Maximum pressure: 109 psi; minimum pressure: 62 psi
- Average flow rating: 18 and average current draw: 10
- Sparta PN3183 cross-references Bosch 67329 for the same application
Product Details
Sparta, distributed by Delphi, focuses on higher-mileage and earlier-model vehicles, bringing OE-informed fit and performance to replacement fuel system service. PN3183 is an in-tank fuel pump module assembly with a plastic housing, oval female connector, 4-wire configuration, and blade terminals. It is built for gasoline use and includes a nitrile rubber seal for service replacement on the fuel tank module.
Compatible with 1996 Chevrolet S10 and 1996 GMC Sonoma, PN3183 is a direct replacement option for technicians and DIY repairs addressing fuel delivery and sender-related concerns. The module’s turbine pump design, quick-connect outlet, and included harness support a clean replacement on the specified applications.
Common Repair Uses
- Hard starting caused by weak fuel delivery
- Engine stalling from inconsistent pump output
- Fuel gauge errors related to a worn sending unit
- Low fuel pressure on the specified S10 or Sonoma application
- Fuel tank service requiring replacement of the module assembly
Installation Notes
Fits 1996 Chevrolet S10, N/A. Fits 1996 GMC Sonoma, N/A. Verify connector shape, outlet style, and tank configuration before installation. This in-tank module uses a quick-connect outlet and includes the seal and harness, but does not include mounting hardware or a lock ring. Follow the vehicle service procedure for fuel system depressurization and tank access.
Quality Assurance
Sparta is backed by Delphi, an OE fuel system supplier with application knowledge focused on fit and performance for earlier-model, higher-mileage vehicles. PN3183 is built as a standard replacement fuel pump module assembly for the listed applications.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 1996 | Chevrolet | S10 | 4.3L | V6 | N/A | — |
| 1996 | GMC | Sonoma | 4.3L | V6 | N/A | — |
