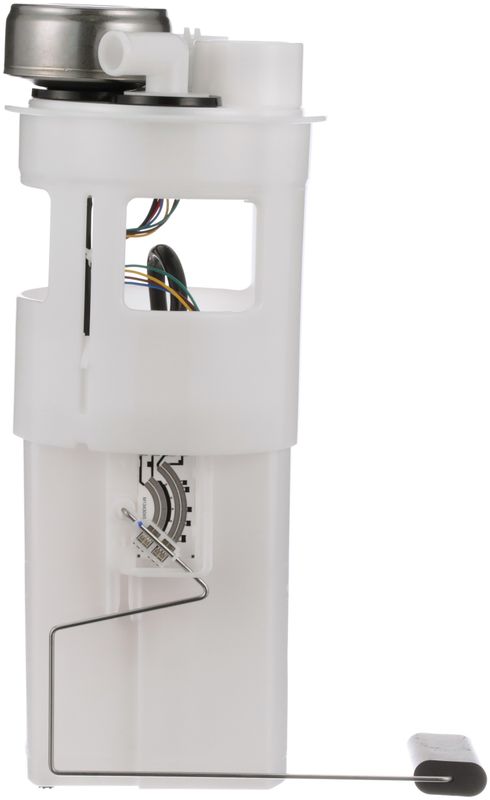

Sparta PN3193 Fuel Pump Module Assembly
| Brand | Sparta PN3193 |
|---|---|
| Fuel Sending Unit Included | Yes |
| Negative Ground | No |
| Outlet Outside Diameter | 0.375 |
| Voltage | 12 |
| Fuel Type | Gas |
| Regulator Included | Yes |
| Maximum Pressure | 73 |
| Terminal Type | Blade |
| Mounting Hardware Included | No |
| Universal Or Specific Fit | Specific |
| Grade Type | Standard replacement |
| Connector Quantity | 1 |
| Connector Shape | Rectangle |
| Gasket Or Seal Included | Yes |
| Housing Material | Plastic |
| Installation Warnings | No |
| Terminal Quantity | 6 |
| Lock Ring Included | No |
| Connector Gender | Female |
| Terminal Gender | Male |
| Strainer Included | Yes |
| Inlet Type | Strainer |
| Outlet Type | Quick connect |
| Outlet Quantity | 2 |
| Fuel Filter Included | Yes |
| In Tank or External | In tank |
| Resistance Ohms Empty | 105 |
| Resistance Ohms Full | 4 |
| Gasket Or Seal Material | Nitrile rubber |
| Minimum Pressure | 44 |
| Fits | Dodge · 3 vehicles |
OE-backed design. Distributed by Delphi, the OE fuel supplier experts trust.
Specific fit. Made for a direct replacement on the listed application.
Complete module. Includes the pump, sending unit, regulator, strainer, and fuel filter.
Cross-references Airtex Fuel Pumps E7100M, Autobest F3111A and Four Seasons 67647 for the same application. See all 15.
Fuel Pump Module for 1996 Dodge B1500, B2500, B3500
Sparta PN3193 is a specific-fit fuel pump module assembly for 1996 Dodge B1500, B2500, and B3500 gas applications. Built as a standard replacement for higher-mileage and earlier model vehicles, it combines the pump, sending unit, regulator, strainer, and fuel filter in one in-tank assembly.
Key Features
- Specific-fit fuel pump module assembly for 1996 Dodge B1500, B2500, and B3500
- 12-volt electric turbine pump design
- Includes fuel sending unit, regulator, strainer, gasket/seal, and fuel filter
- In-tank configuration with quick-connect outlet and 2 outlet ports
- Operating pressure range: 44 to 73 psi
- Average flow rating: 42 and average current draw: 7
- Plastic housing with female connector, 1 connector, and 6 male terminals
- Fuel level resistance: 105 ohms empty, 4 ohms full
Detailed Description
Sparta PN3193 is engineered for gasoline fuel systems that require an in-tank electric pump module with integrated fuel delivery and level-sensing components. The assembly uses a turbine-style pump, blade terminals, and a rectangular female connector for direct replacement service on the listed Dodge vans. As a fuel pump module assembly, it is built to restore fuel supply, fuel pressure regulation, and tank level signal output in one service part. This part cross-references Airtex Fuel Pumps E7100M for the same application.
What It Helps Address
- Hard starting caused by low fuel pressure
- Engine stalling from inconsistent fuel delivery
- Fuel gauge readings that are inaccurate or intermittent
- Loss of pump output from a worn in-tank module
- Fuel system drivability issues on 1996 Dodge B1500, B2500, and B3500 models
Installation Notes and Tips
Install this module in the fuel tank using the correct vehicle-specific procedure for the 1996 Dodge B1500, B2500, or B3500. Verify connector style, outlet type, and tank sealing surfaces before installation. The package includes the fuel pump module assembly with float arm and instruction sheet; mounting hardware and lock ring are not included.
Quality Assurance
Sparta is distributed by Delphi, an OE full-line fuel supplier, and is positioned for earlier model and higher-mileage vehicles where fit and fuel-system performance matter. PN3193 is a standard replacement part built for direct application service on the listed Dodge vans.
| Year | Make | Model | Liters | Cylinders | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|---|
| 1996 | Dodge | B1500 | 5.2L | V8 | — | N/A | — |
| 1996 | Dodge | B2500 | 5.9L | V8 | GAS | N/A | — |
| 1996 | Dodge | B3500 | 5.9L | V8 | GAS | N/A | — |
