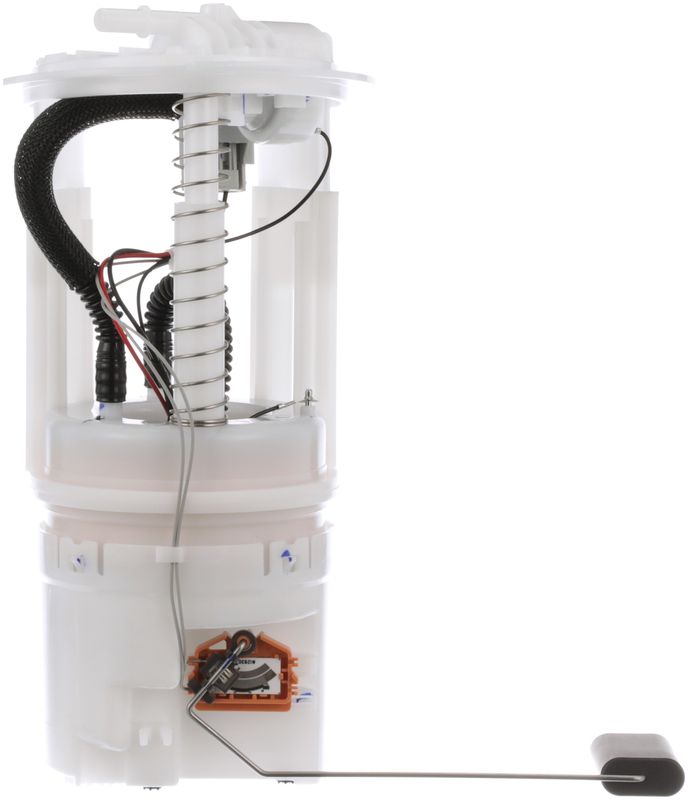

Sparta PN3199 Fuel Pump Module Assembly
| Brand | Sparta PN3199 |
|---|---|
| Fuel Sending Unit Included | Yes |
| Negative Ground | No |
| Outlet Outside Diameter | 0.375 |
| Voltage | 12 |
| Fuel Type | Gas |
| Regulator Included | Yes |
| Maximum Pressure | 65 |
| Terminal Type | Blade |
| Mounting Hardware Included | No |
| Universal Or Specific Fit | Specific |
| Grade Type | Standard replacement |
| Connector Quantity | 1 |
| Connector Shape | Oval |
| Gasket Or Seal Included | Yes |
| Housing Material | Plastic |
| Installation Warnings | No |
| Terminal Quantity | 4 |
| Lock Ring Included | No |
| Connector Gender | Female |
| Terminal Gender | Male |
| Strainer Included | Yes |
| Inlet Type | Strainer |
| Outlet Type | Quick connect |
| Outlet Quantity | 1 |
| Fuel Filter Included | Yes |
| In Tank or External | In tank |
| Resistance Ohms Empty | 22 |
| Resistance Ohms Full | 990 |
| Gasket Or Seal Material | Nitrile rubber |
| Minimum Pressure | 58 |
| Fits | Jeep · 11 vehicles |
OE-supplier backed. Distributed by Delphi, with fit and performance know-how from OE fuel experts.
Specific-fit module. A direct replacement fuel pump assembly for a precise, no-guess install.
Complete tank service. Includes the pump module, float arm, seal, instruction sheet, filter, and strainer.
Cross-references Airtex Fuel Pumps E7197M, Autobest F3108A and Bosch 67754 for the same application. See all 37.
Fuel Pump Module Assembly for Jeep Applications
Sparta PN3199 is a specific-fit fuel pump module assembly for gasoline-powered Jeep Commander and Jeep Grand Cherokee models. It includes the fuel sending unit, regulator, strainer, fuel filter, gasket/seal, and float arm for a complete in-tank replacement.
Key Features
- Specific-fit fuel pump module assembly for 2005-2010 Jeep Grand Cherokee and 2006-2010 Jeep Commander
- 12-volt electric turbine pump with in-tank design
- Fuel sending unit included for accurate fuel level reporting
- Regulator, strainer, fuel filter, and nitrile rubber seal included
- Quick-connect outlet, oval female connector, 4 male blade terminals
- Standard replacement grade for gasoline fuel systems
- Maximum pressure: 65; minimum pressure: 58
- Average flow rating: 21; average current draw: 12
Detailed Description
Sparta PN3199 is built for earlier model, higher-mileage vehicles and is backed by Delphi OE fuel system expertise. This fuel pump module assembly is engineered for direct replacement service in Jeep Commander and Jeep Grand Cherokee fuel systems, with the pump, sender, regulator, and filtration components packaged together for a streamlined repair. It cross-references Bosch 67754 and Carter P76067M for the same application.
Compatible With 2006-2010 Jeep Commander and 2005-2010 Jeep Grand Cherokee, this module supports gasoline in-tank fuel delivery with a turbine-style electric pump and a quick-connect outlet measuring 0.375 in. The plastic housing, internal strainer, and included gasket/seal help restore proper fuel delivery and tank sealing when replacing a worn module.
Common Repair Uses
- Hard starting caused by weak or inconsistent fuel pressure
- Fuel gauge errors from a worn sending unit
- Engine hesitation, stalling, or lean-running conditions from restricted fuel delivery
- Fuel leaks at the tank module seal
- Noisy or failing in-tank pump operation
Installation Notes
Verify tank access, connector style, and outlet configuration before installation. This module uses a single oval connector with 4 blade terminals and does not include mounting hardware, lock ring, or wire harness. Clean the tank opening, replace the seal supplied in the package, and confirm the fuel line quick-connect is fully seated before returning the vehicle to service.
Quality Assurance
Sparta is distributed by Delphi, an OE fuel system supplier, and is positioned as a standard replacement part for older Jeep fuel system service. PN3199 is built to match the specified fitment and operating requirements for the listed Commander and Grand Cherokee applications.
| Year | Make | Model | Submodel | Liters | Cylinders | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 2010 | Jeep | Commander | — | — | — | — | N/A | — |
| 2010 | Jeep | Grand Cherokee | — | — | — | — | N/A | — |
| 2009 | Jeep | Commander | — | 5.7L | V8 | GAS | N/A | — |
| 2009 | Jeep | Grand Cherokee | — | 6.1L | V8 | GAS | N/A | — |
| 2008 | Jeep | Commander | — | 5.7L | V8 | GAS | N/A | — |
| 2008 | Jeep | Grand Cherokee | — | 6.1L | V8 | GAS | N/A | — |
| 2007 | Jeep | Commander | Overland | 5.7L | V8 | GAS | N/A | — |
| 2007 | Jeep | Grand Cherokee | — | 6.1L | V8 | GAS | N/A | — |
| 2006 | Jeep | Commander | — | — | — | — | N/A | — |
| 2006 | Jeep | Grand Cherokee | — | — | — | — | N/A | — |
| 2005 | Jeep | Grand Cherokee | — | — | — | — | N/A | — |
