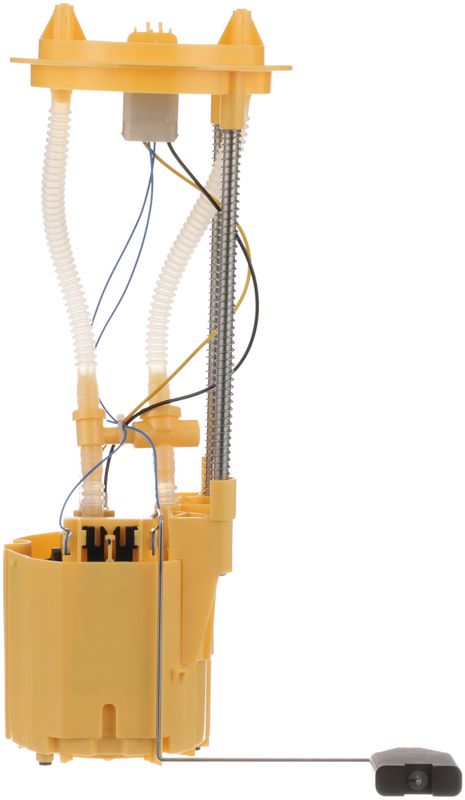

Sparta PN3206 Fuel Pump Module Assembly
| Brand | Sparta PN3206 |
|---|---|
| Fuel Sending Unit Included | Yes |
| Negative Ground | No |
| Outlet Outside Diameter | 0.375 |
| Voltage | 12 |
| Fuel Type | Diesel |
| Regulator Included | No |
| Maximum Pressure | 29 |
| Terminal Type | Blade |
| Mounting Hardware Included | No |
| Universal Or Specific Fit | Specific |
| Grade Type | Standard replacement |
| Connector Quantity | 1 |
| Connector Shape | Rectangle |
| Gasket Or Seal Included | Yes |
| Housing Material | Plastic |
| Installation Warnings | No |
| Terminal Quantity | 4 |
| Lock Ring Included | No |
| Connector Gender | Female |
| Terminal Gender | Male |
| Strainer Included | Yes |
| Inlet Type | Strainer |
| Outlet Type | Quick connect |
| Outlet Quantity | 2 |
| Fuel Filter Included | No |
| In Tank or External | In tank |
| Resistance Ohms Empty | 220 |
| Resistance Ohms Full | 20 |
| Gasket Or Seal Material | Nitrile rubber |
| Minimum Pressure | 11 |
| Fits | Dodge · 10 vehicles |
OE-backed fit. Specific replacement for higher-mileage, earlier-model diesel applications.
Fuel pump module assembly. In-tank electric rollervane design with gasket and strainer included.
Built with Delphi expertise. Distributed by the OE fuel supplier behind fit and performance know-how.
Cross-references Airtex Fuel Pumps E7181M, Autobest F3192A and Carter P76148M for the same application. See all 14.
Fuel Pump Module Assembly for Ram Diesel Applications
Sparta PN3206 is a standard replacement fuel pump module assembly for select Dodge Ram diesel trucks. It is built as an in-tank, specific-fit unit with the fuel sending unit, gasket/seal, and strainer included for a direct service replacement.
Compatible with 2005-2009 Dodge Ram 2500 and 2005-2009 Dodge Ram 3500 diesel applications, this module is designed for 12-volt operation and uses a rollervane electric pump design. The assembly supports a maximum pressure of 29 psi and an average flow rating of 50, with a quick-connect outlet and a single female connector.
Key Features
- Part number: PN3206
- Fuel type: Diesel
- In-tank fuel pump module assembly
- Specific fit for select Dodge Ram 2500 and Ram 3500 trucks
- Fuel sending unit included
- Gasket/seal included with nitrile rubber material
- Strainer included; external strainer design
- Electric rollervane pump design
- 12-volt system with 4-terminal blade connection
- Quick-connect outlet with 2 outlet ports
Detailed Description
Sparta PN3206 is distributed by Delphi and positioned for higher-mileage and earlier-model vehicles, with OE-informed fit and performance considerations. This fuel pump module assembly includes the float arm and seal, and it is configured for in-tank installation on diesel-equipped Dodge Ram 2500 and Dodge Ram 3500 trucks from 2005 through 2009. The module uses a plastic housing, a rectangular female connector, and a blade-style terminal layout for a direct replacement approach. This part cross-references Airtex Fuel Pumps E7181M and Carter P76148M for the same application.
Common Replacement Reasons
- Hard starting or extended crank time from low fuel delivery
- Fuel pressure loss under load
- Inaccurate fuel level readings from a worn sending unit
- Intermittent pump operation in the tank
- Fuel starvation symptoms on Dodge Ram 2500 and Ram 3500 diesel trucks
Installation Notes and Tips
Verify tank configuration, connector style, and outlet routing before installation. Replace the seal during service and inspect the tank opening, wiring, and fuel lines for wear or contamination. Because mounting hardware and lock ring are not included, reuse or source the required vehicle-specific components as needed. Confirm the vehicle is a diesel application and match the original connector and terminal layout before installation.
Quality Assurance
Sparta fuel system components are backed by Delphi distribution and OE-focused engineering knowledge for fit and performance on older, higher-mileage vehicles. PN3206 is a standard replacement fuel pump module assembly built for the listed Ram diesel applications.
| Year | Make | Model | Submodel | Body Type | Bed Length | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|---|
| 2009 | Dodge | Ram 2500 | SXT | — | 6' 4" Foot Bed | 6.7L | L6 | N/A | — |
| 2009 | Dodge | Ram 3500 | — | Standard Cab Pickup | 6' 4" Foot Bed | 6.7L | L6 | N/A | — |
| 2008 | Dodge | Ram 2500 | — | — | 6' 4" Foot Bed | 6.7L | L6 | N/A | — |
| 2008 | Dodge | Ram 3500 | — | Standard Cab Pickup | 6' 4" Foot Bed | 6.7L | L6 | N/A | — |
| 2007 | Dodge | Ram 2500 | — | — | 6' 4" Foot Bed | 6.7L | L6 | N/A | — |
| 2007 | Dodge | Ram 3500 | — | Standard Cab Pickup | 6' 4" Foot Bed | 6.7L | L6 | N/A | — |
| 2006 | Dodge | Ram 2500 | — | — | 6' 4" Foot Bed | 5.9L | L6 | N/A | — |
| 2006 | Dodge | Ram 3500 | — | — | 6' 4" Foot Bed | 5.9L | L6 | N/A | — |
| 2005 | Dodge | Ram 2500 | — | — | 6' 3" Foot Bed | 5.9L | L6 | N/A | — |
| 2005 | Dodge | Ram 3500 | — | — | 6' 3" Foot Bed | 5.9L | L6 | N/A | — |
